Single-wheel power hoe 2100 17
3. Devices and Operating Elements
3

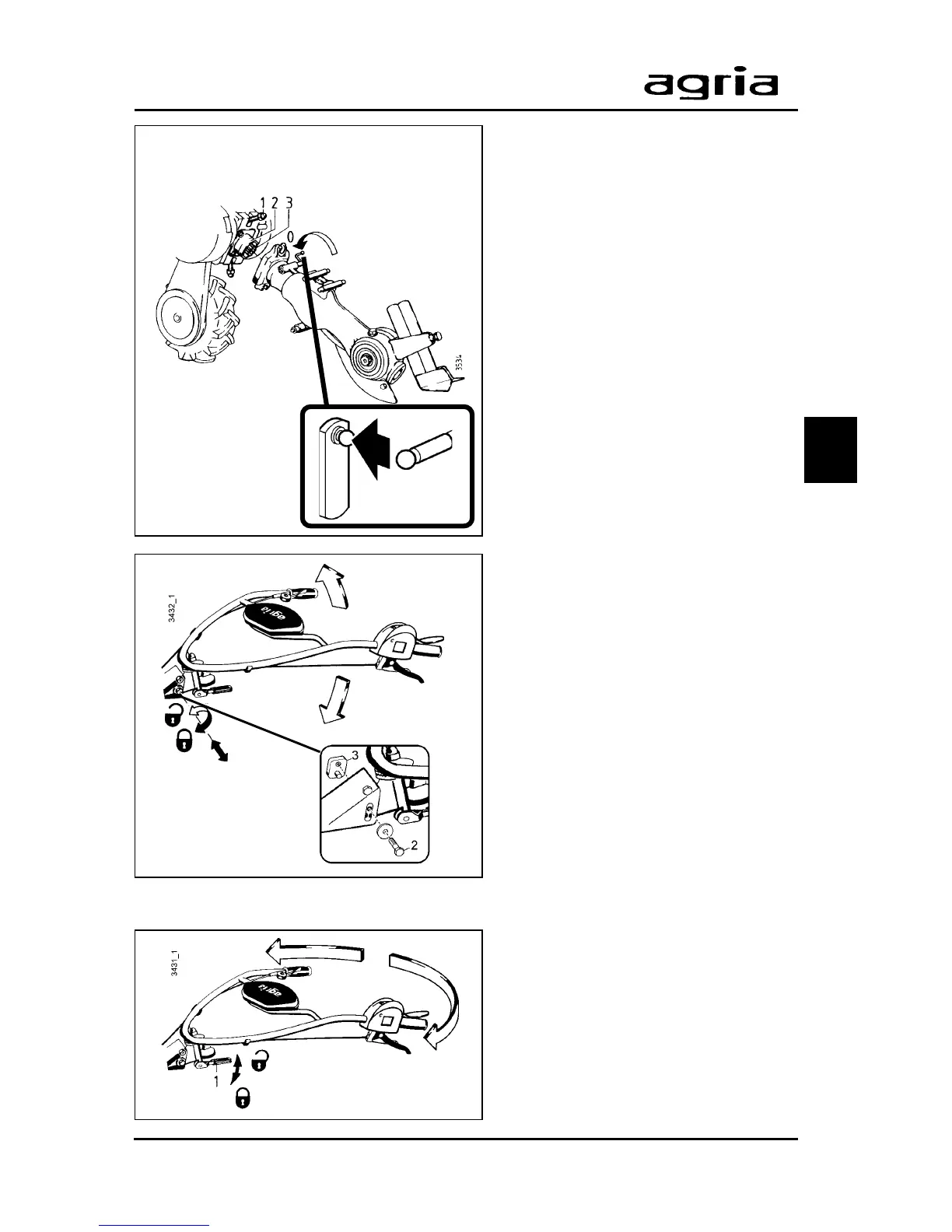

Attachment linkage
with integrated PTO for mounting the
tilling shaft or other draft attachments
(e.g. cultivator)
Coupling Attachments:
For PTO-driven attachments, set
PTO shifter on attachment to posi-
tion „0“.
Slightly grease PTO (3) and se-
lector sleeve in attachment.
Slide attachment over coupling
pin (2).
Put eye bolts (1) into the slotted
holes and tighten them evenly.
Mount the shift lever onto the gear
lever.
Decoupling Attachments:
Reverse the above process.
Steering Handle
Steering handle
height adjustment
Unscrew hexagonal screw (2)
from square clamping piece (3) and
remove from steering bar joint.
Adjust handlebar to desired height
and insert into proper boring in steer-
ing bar joint.
Insert hexagonal screw and screw
into square clamping piece and
tighten. (Ensure that snug of clamp-
ing piece locks into long hole of lo-
cation in steering bar joint).
Steering handle
side adjustment
Pull tensioning lever upwards (1),
swivel handlebar to desired position
and fit into proper toothing.
Press tensioning lever back down
(tension).
1 Eye bolt with cap nut
2 Coupling pin
3PTO
