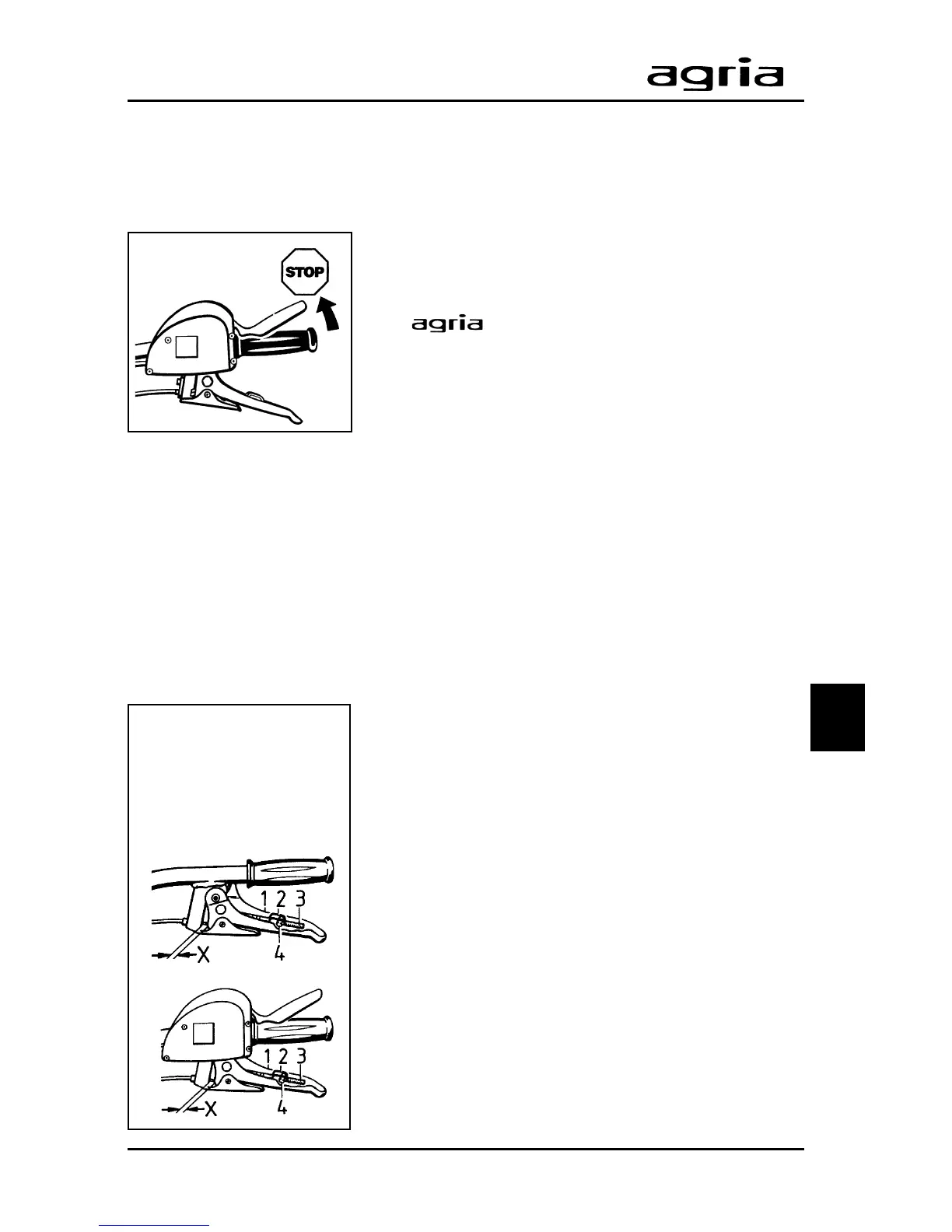

Safety circuit
Check safety circuit for proper function each time you
do maintenance work on the machine.
l Upon release of lever (C/4) and with clutch en-
gaged the engine must automatically come to a stop.
l Check electric lines and connections for good
condition, exchange, if necessary.
è - Serviceç
Adjustments on
Hand Levers for Clutch and Wheel
drive
Check play or adjustments each time before you op-
erate the machine. If necessary, re-adjust (especially
after commissioning the machine during break-in
period, and after exchanging clutch V-belt).
l Remove the retaining spring (2) with a screw-
driver or similar tool.
l Remove cable end (3) and set pin (4) out of
bracket in hand lever.
l Adjust the set pin (4) to a play of X.(Screw set
pin in to reduce play, screw out to increase play).
l Place cable end and set pin back into bracket
and check.
l Fit retaining spring (2).
 Hand lever for wheel drive:
X = 3–5 mm
 Hand lever for clutch:
X = 2.5–4 mm
However, the base setting is adjusted in neutral
position.(see “Adjusting V-Belt Tension”).
1 Hand lever for
wheel drive
2 Retaining spring
3 Threaded end
of cable
4 Set pin


