18 agria Multi-Purpose Machine 400P
3. Devices and Operating Elements
3

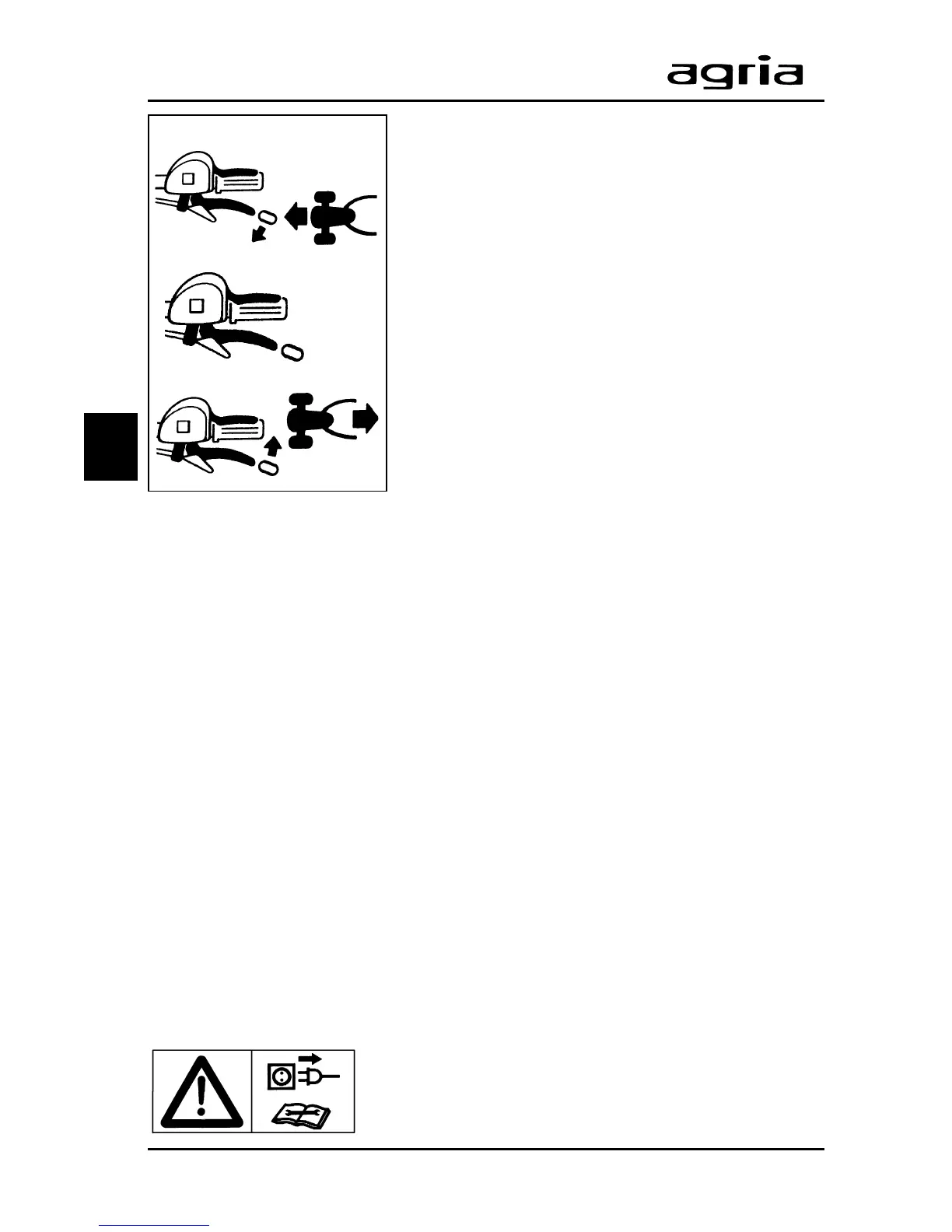

Travelling Drive
Forward – Reverse
The multi-purpose machine is equipped with a
clutch-integrated FR-gearshift, which is operated
with the clutch lever (E/4 or G/4).
Travelling drive forward speed:
Move clutch lever down (C/5) – the pawl is unlocked.
Travelling drive idling speed:
Clutch lever (C/5) is pulled approx. half way – the
pawl is locked.
Travelling drive reverse speed:
Pull clutch lever (C/5) all the way up.
Pawl (C/6) is for locking the clutch lever in idling
position (“0”).
On slopes, always turn machine towards the slope.
I
Note: Always park machine with clutch lever pulled (“0” – pawl
locked), otherwise clutch problems may arise due to deformation of V-belt.
Speeds
To change speeds, move the V-belt to another idler pulley (D/12) - see fold-out
page 54.
W
Before you move the V-belt, stop the engine and remove
the spark plug connector.
l
Remove nut (D/10) to remove the belt guard (D/8) and the belt guide plate (D/7).
l
Lock the clutch lever (D/4) in neutral position. This ensures that the idler
pulley (D/1) does not to press against theV-belt.
l
Move the V-belt (D/12) to the desired pulley (only use your hands, do not use
pointed or sharp tools. Otherwise the V-belt will be damaged).
l
Replace V-belt guide plate (D/7). Push the guard (D/7) onto pins (D/4) and
close it.
l
Fit nut (D/10) with spring washer (D/9) and tighten.
Only drive pto-driven attachments at speed “I”.
