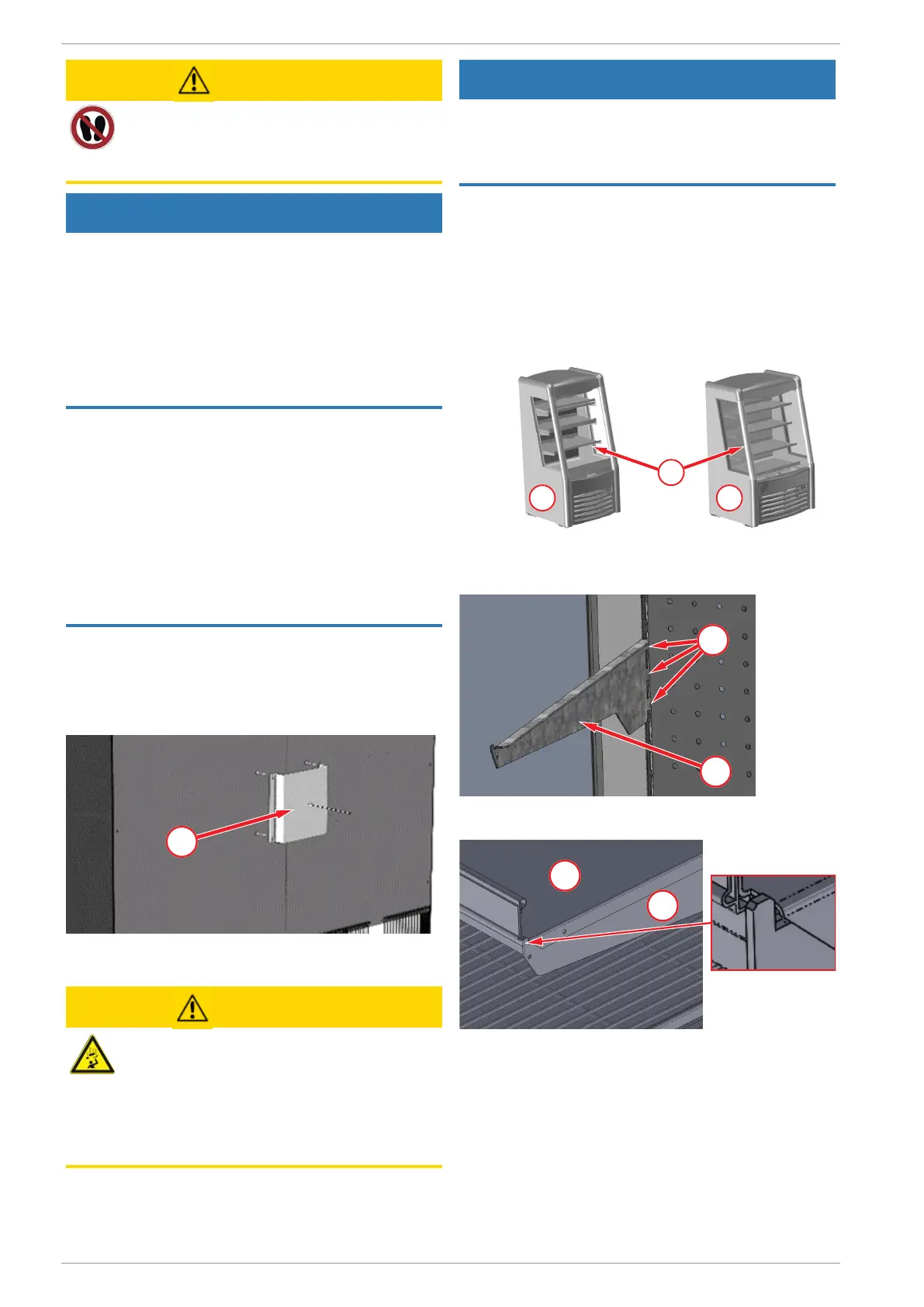

8.1 | Electrical connection AHT Cooling Systems GmbH | en
34 / 458
409654_1_0120
CAUTION
Material breakage.
Risk of falling. Risk of impact due to the pos-
sibility of products falling. Cutting injuries.
Do not climb onto or into the unit.
NOTICE
Material and property damage in the event of
incorrect positioning.
Place the appliance in a stable operating position
(horizontal alignment).
Do not expose the unit to direct heat radiation at the
installation site.
Do not expose the device at the installation site to
the direct action of air conditioning and ventilation.
Do not install the appliance outdoors.
Material and property damage due to accumu-
lation of warm exhaust air (heat accumula-
tion).
Exhaust air must be able to escape unhindered at
the top and rear of the appliance.
Maintain a minimum distance from the wall. The
minimum distance is defined by wall spacers on the
rear of the appliance.
Only operate the appliance with wall spacers.
“Back to back” installation only in consultation with
the manufacturer.
Wall spacer mounting
Wall spacer is included with the appliance as an ac-
cessory pack.
Attach the wall spacer to the four pre-installed
screws.
1
Fig.4: Wall spacer (1) on rear of appliance
Install display shelves
CAUTION
Improper installation of the display
shelves.
Risk of injury due to falling of the display
shelves holding goods.
The bracket for the display shelves and the
display shelves must fully engage in the
slots provided during suspension.
NOTICE
Material damage due to deformation of the
display shelves.
Align the brackets in parallel.
Align the display shelves horizontally.
Number and position of display shelves
Number of shelves see →Technical data
Appliance models with different display shelving
AC-S
AC-W
The bottom display shelf must be at the lowest posi-
tion.
Possible attachment positions for bottom display shelf:
Openings 1 to 7
1
2 3
Fig.5: Bottom display shelf (1) on AC-S (2) and AC-W (3)
Attach the brackets for the display shelves to the
openings of the attachment rails.
2
1
Fig.6: Attach bracket (1) to openings (2)
Attach the display shelves to the brackets.
1
2
Fig.7: Attach display shelf (1) to bracket (2)
8.1 Electrical connection
The connection to the power supply is made by the
operator.
See →Start-up
For technical data see →Technical data
