6.1 Analog Inputs
The Analog Inputs may acquire any source in the different ranges:
0-50 mV
0-500 mV
0-5V
0-12V
In case an input is configured as Analog Input, you may enable an internal 2kOhm pull up resistance, as

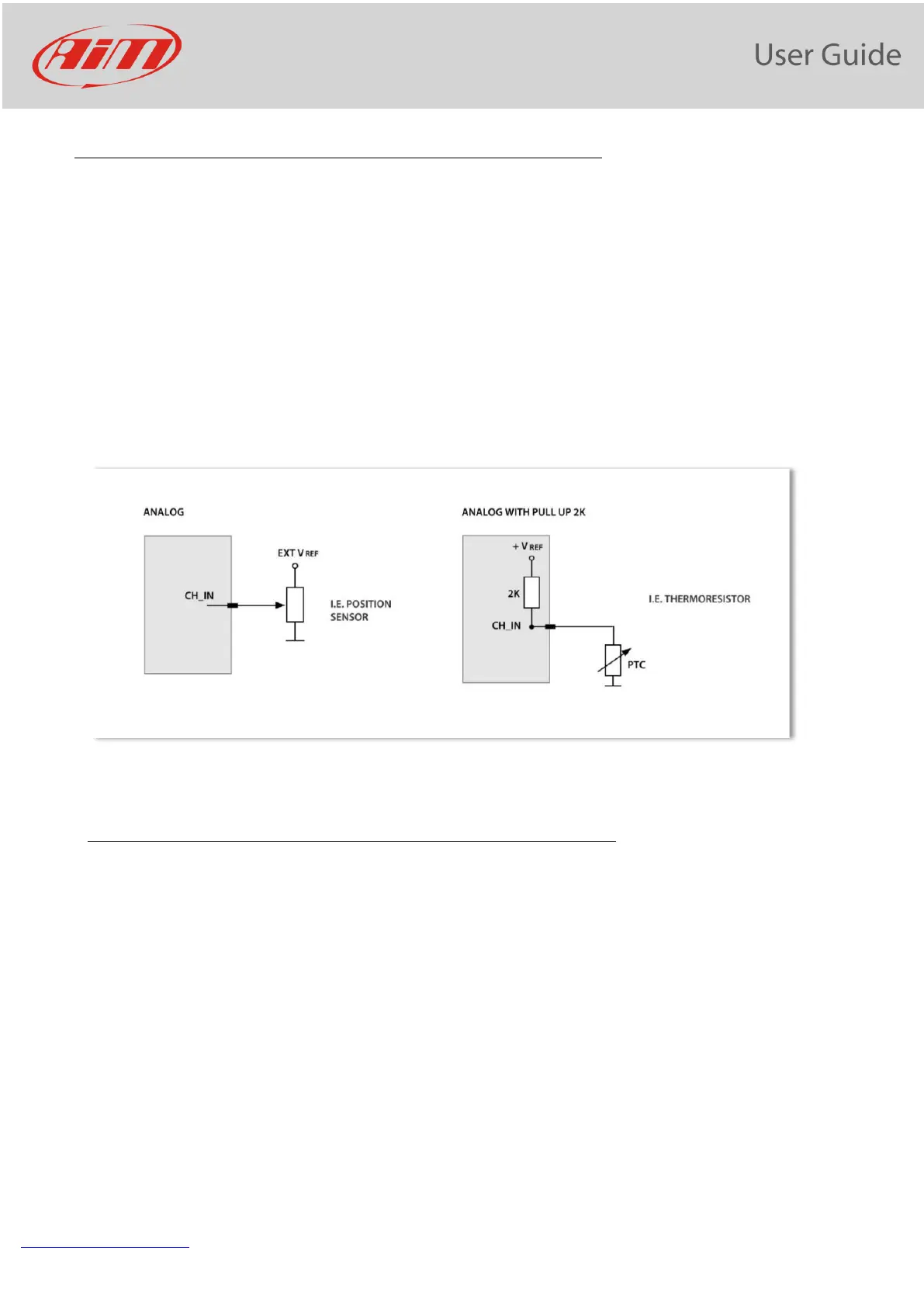

shown in the following picture:
6.2 Digital Inputs
In case an input is configured as Digital input, it is possible to enable an internal pull-up or pull-down
resistance, depending on whether they are closed to ground or closed to VBatt, as shown in the following
