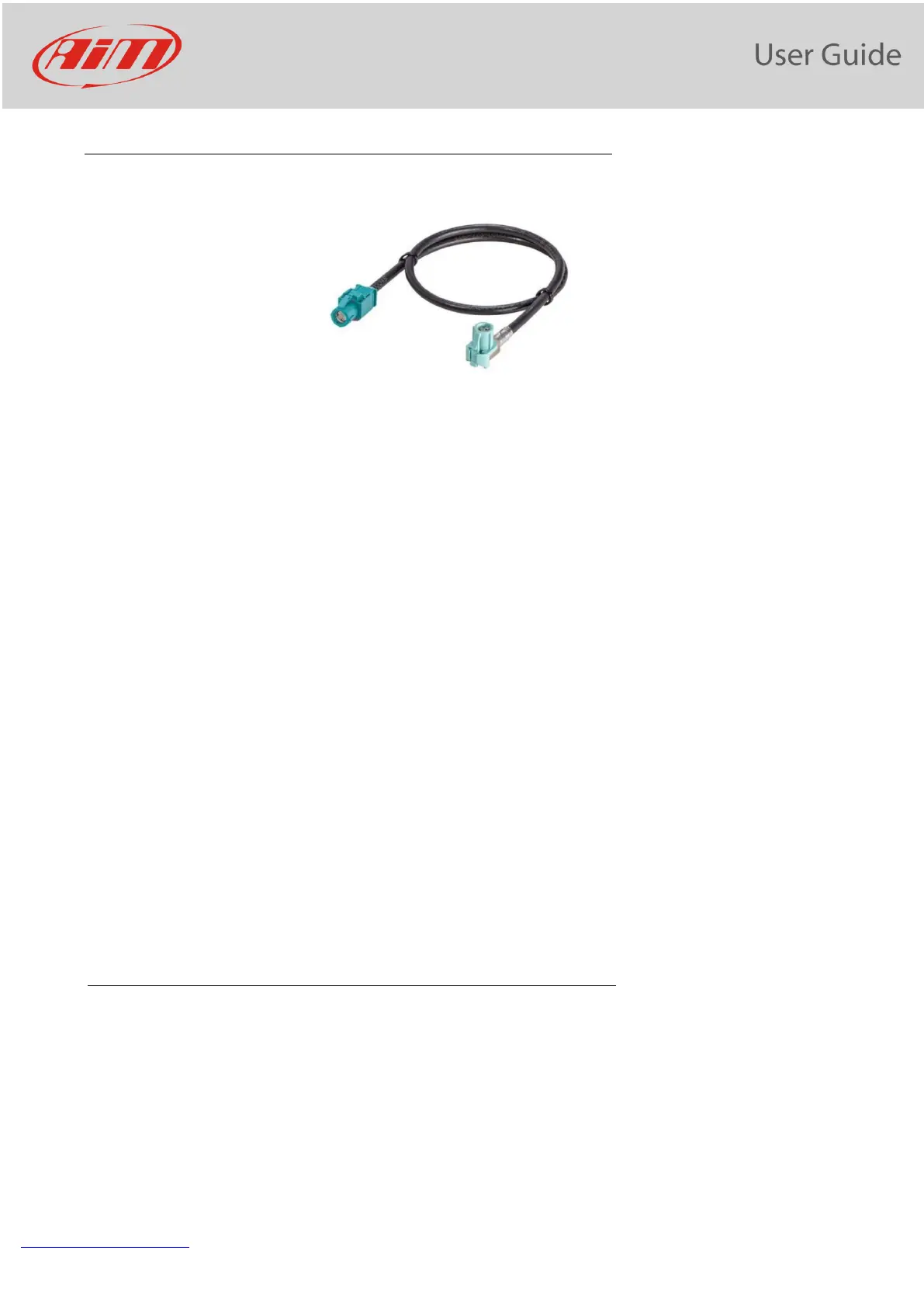

2.3 Rosenberger LVDS connector
PDM has an external high-speed link used to manage remote display. This link is realized by AIM custom
cable (FCCA 682000). Link transmits to remote display the TFT information and the status LEDs activity. On
the other side receives from remote display light sensor data and push buttons status. Same link is used
also to power the remote display making a simple and reliable connection. Rosenberger connectors allow
high immunity noise levels and IP67 class connection.
Mechanical data
Mating cycles ≥ 25
Engagement force ≤ 30 N
Engagement force waterproof ≤ 40 N
Disengagement force ≥ 5 N
Retention force latch ≥ 110 N
Retention force primary lock ≥ 80 N
Retention force secondary lock ≥ 60 N
Polarization feature effectiveness ≥ 80 N
Environmental data
Temperature range -40 °C to +105 °C
Thermal shock IEC 60068-2-14
Vibration IEC 60068-2-64
Mechanical shock IEC 60068-2-27
Temperature and humidity USCAR 2-4 5.6.2 Dry heat IEC 60068-2-2
3. Standard compliances
PDM complies with the following standards:
• ECE Regulation No.10 Add.9 Rev.5
• IEC 61000-4-2 exceeds level 4 - 30 kV (air discharge) - 30 kV (contact discharge)
• ISO10605 – C = 330 pF, R = 330 Ω - 30 kV (air discharge) - 30 kV (contact discharge)
• ISO 7637-2:
- Pulse 1: VS = -150 V
- Pulse 2a: VS = +112 V
