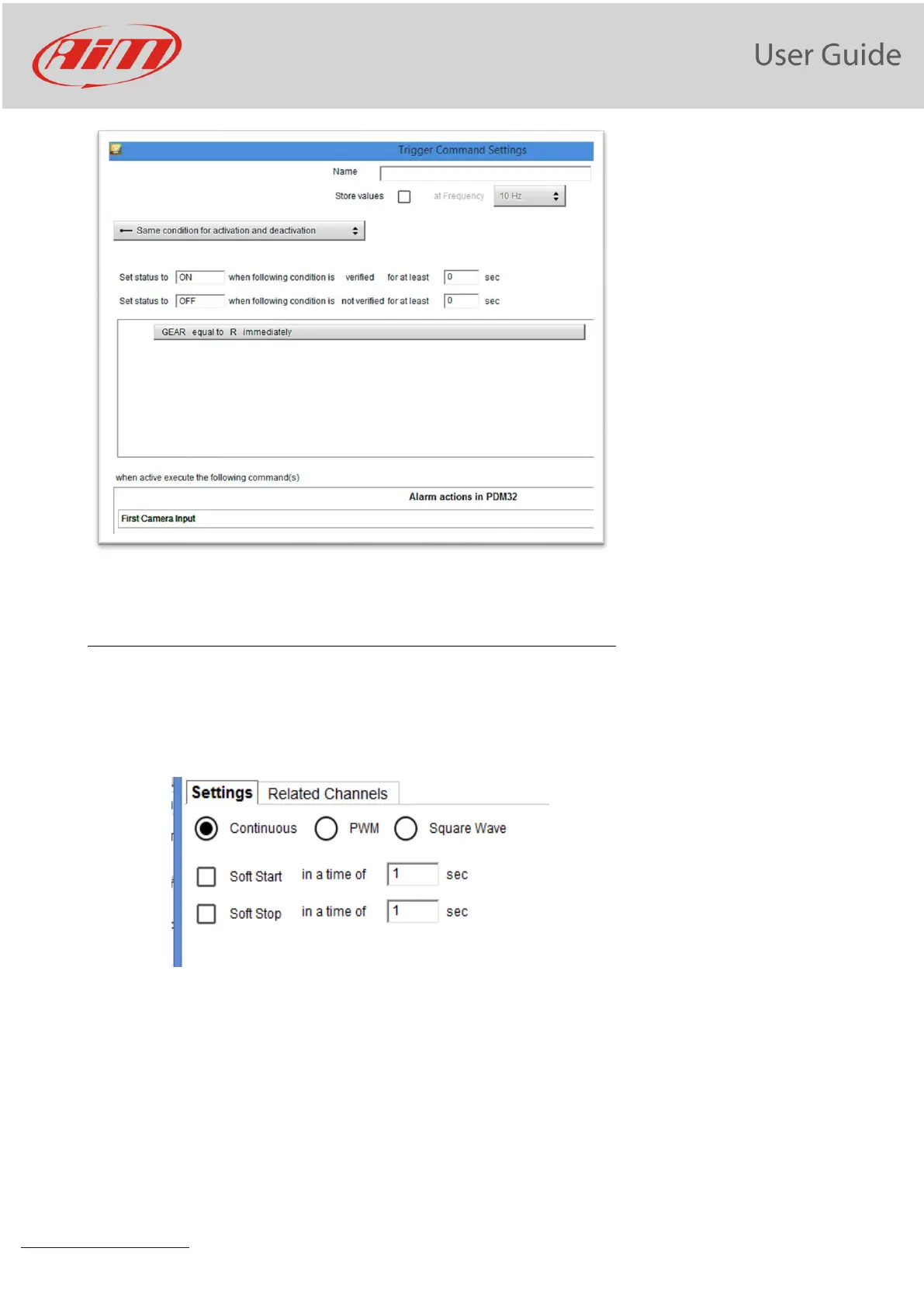

11.9 Power Outputs configuration
Every Power Output may be configured in order to generate an output of three different shapes:
- Continuous
- PWM
- Square Wave
- A Continuous Output is a constant current generation, whose value depends upon the device connected
and the limit set by the user, as indicated in the Power Output Chapter.
- A PWM output is an output in frequency (100 Hz for all but the HalfBridge outputs, that may work up to
10 KHz). where the duty cycle is depending upon some conditions.
In this case too, the soft start and soft stop are available.
- The square wave mode offers the possibility to define the frequency and duty cycle of the output and
is used when the wave frequency is very low.
