22. CAN Output configuration

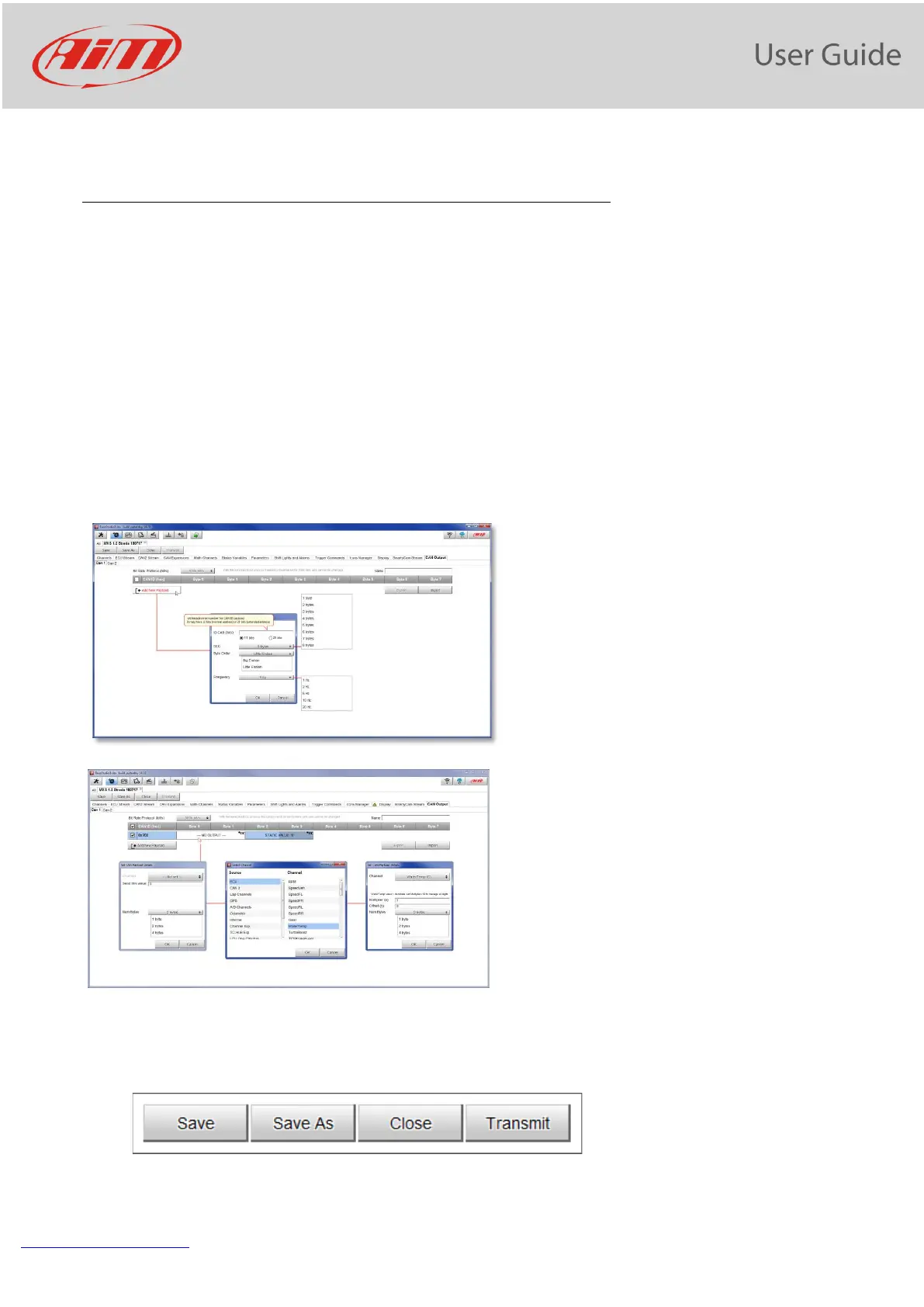

You may configure your device to transmit a CAN data stream, both on CAN1 and CAN2, containing the
channels required.
To add a payload:
• press “+Add new Payload” and “Set CAN Header details” appears.
• fill in ID CAN (hex), available options are:
o 11 bits (normal address)
o 29 bits (extended address)
• select the payload max bytes number (DLC), from 1 to 8 bytes
• select the byte order according to the used processor, available options are:
o Little endian for Intel compatible processor
o Big Endian for Motorola processor
• set the sampling frequency among 1,2, 5, 10 or 20 Hz
When all channels set your configuration is finished:
• press “Save” on the page top keyboard
• press “Transmit” to transmit the configuration to the PDM 32
