Loom wires and connectors pin selection are very important. Be sure to select wire size according to load
current specification.

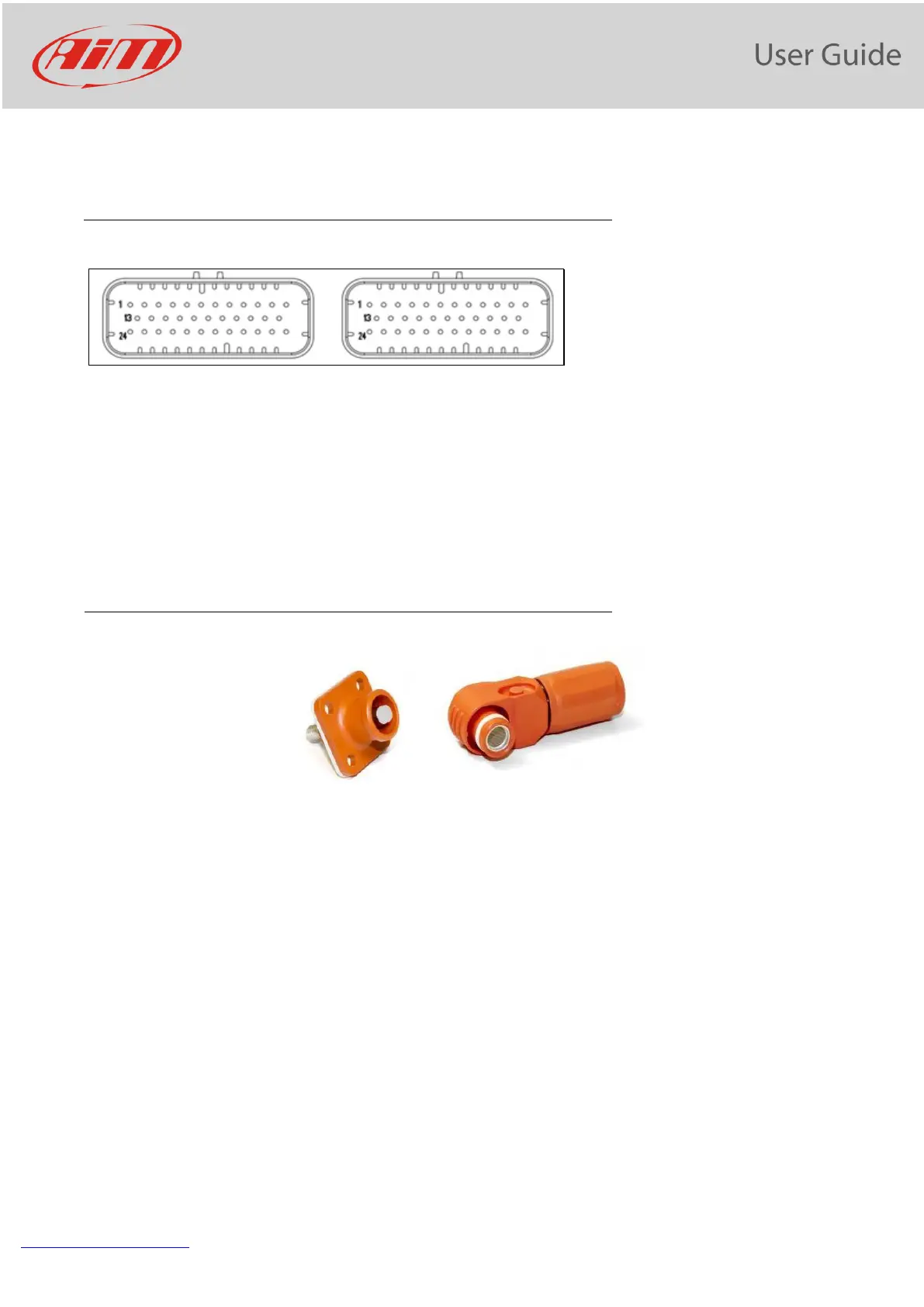

2.1 AMP connectors
PDM 32 connectors mate with AMP 776164-1 (black) and AMP 776164-4 (grey).
Connector terminal: AMP 770520-3. This is the gold-plated version rated up to 17A.
Wire sizes qualified for this terminal are: 20AWG, 18AWG, 16AWG.
2.2 Surlok connector
Connection to POWER is made by a Surlok connector, Amphenol SLPRATPSO.
This connector is rated up to 120A and can manage wire from 16mm^2 to 25mm^2. Mating part code is
SLPPA25BSO and both are IP67.
An advantage of this type of connection, is that the user does not require any special tools to make a
connection or disconnection between the two. As they feature an automatic quick lock and press-to-
release function
