9.2 GPS

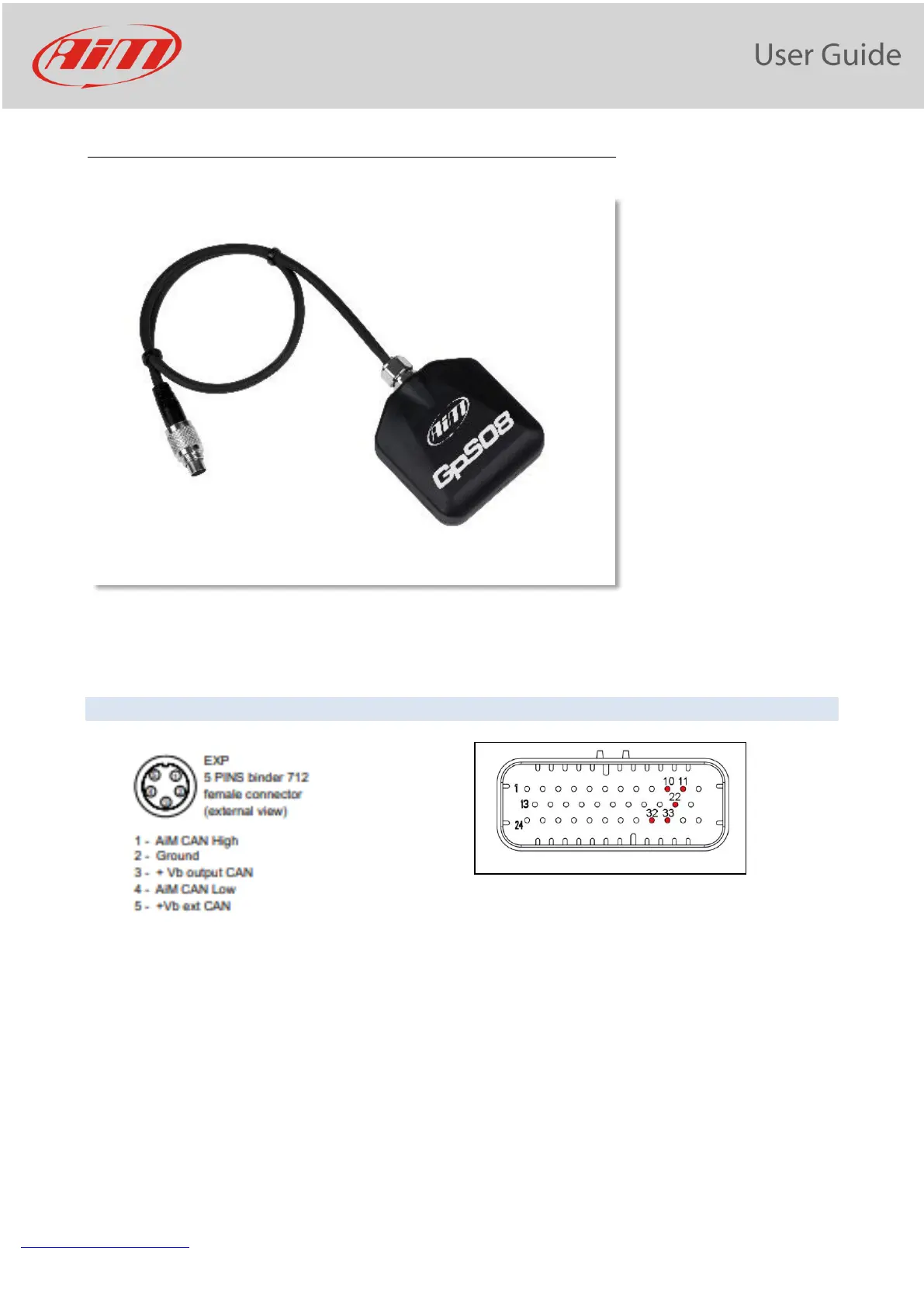

Gps 08 module is supplied with a standard male 712 Binder 5 pin plug, that needs to connect to Can0H (Aim
Expansion Can ) (22) and Can0 L (11) with ground (10) , +VBext(32) and +Vbout (33)
A 1 mt patch cable with a female 712 Binder inline socket is in the kit and should be wired as shown here.
Please, refer to the dedicated chapter that explains how to use the GPS 08 module.
