Aim PDM 32 - Connections; AMP Connectors; Surlok Connector

www.aim-sportline.com - PDM 32 User Guide 4

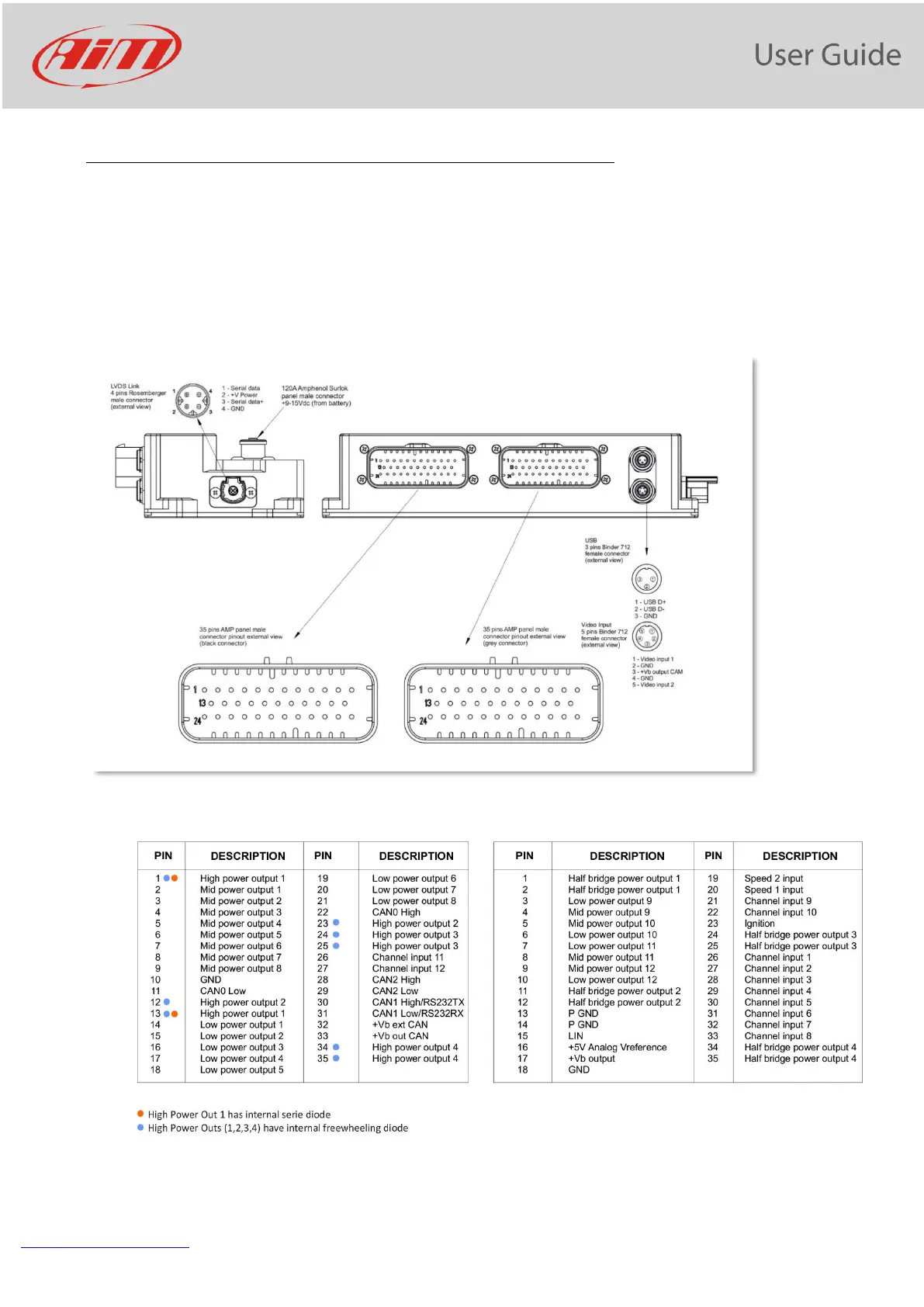

2. Connections
The PDM 32 has 6 connectors:
1 Surlok Power Connector to connect to the +V battery
1 Rosenberger LVDS connector to connect the display (6” or 10”)
2 35 pins AMP connectors
2 Binder connectors, 5 and 3 pins, for the connection to the USB port and to the analog mirror
camera
