- the HB outputs have a configurable frequency from 1 Hz to 10 KHz
- All outputs can then be managed as a square wave, with configurable Time ON and Time OFF, from 0.1 to
10 sec

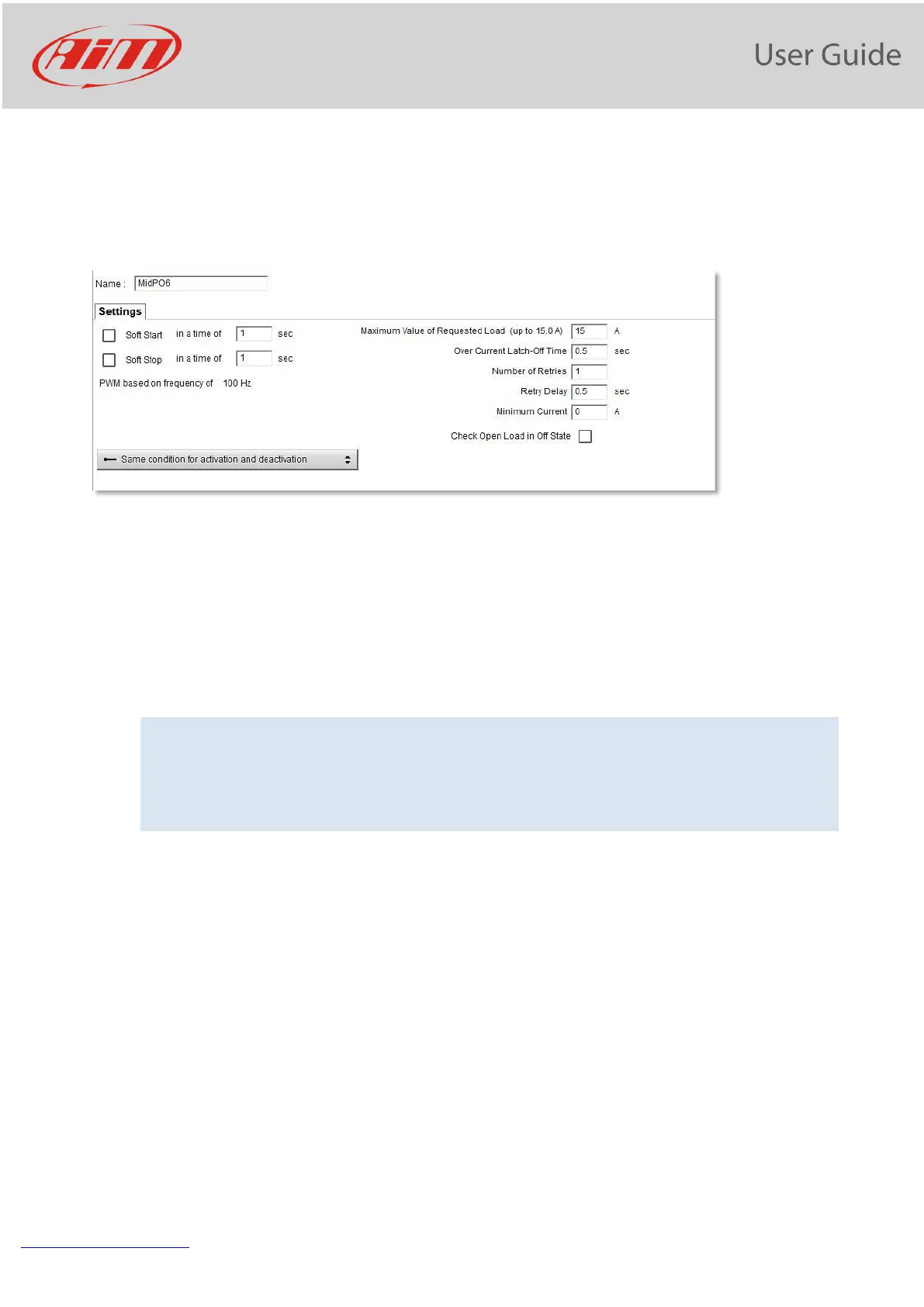

The management parameters of each single output are:
For every output user can set:
• MAX continuous current: this is the trip level of cut off current. After Over Current Latch-off
Time the output will be disabled
• Over Current Latch-off Time: during this period, we allow current over MAX selected by user
• Number of Retries: after latch-off occurred, pdm retries to activate out up to this setting value
• Retry Delay: time between retries
• Minimum current: this is the low level of current allowed. Lower value activates the alarms for
Open load
• Check Open Load in Off State: available for L and M output types. Check load presence also in
OFF state. If you enable this check, a very low current constantly flows through the output, and,
sometimes, it is enough for activating the connected device
• Soft Start and Soft Stop are useful to reduce high inrush current. These settings perform a first
stage activation with PWM going from 0 to 100% and viceversa in deactivation. User could also
set a duration time for this mode. In case of PWM mode selected on this out, soft start reaches
user PWM value.
• In B type outputs, there is also the possibility to set PWM frequency
