reaches 100°C and the RPM are higher than 2000, and we must turn it OFF when the Water
Temperature goes below 80°C.

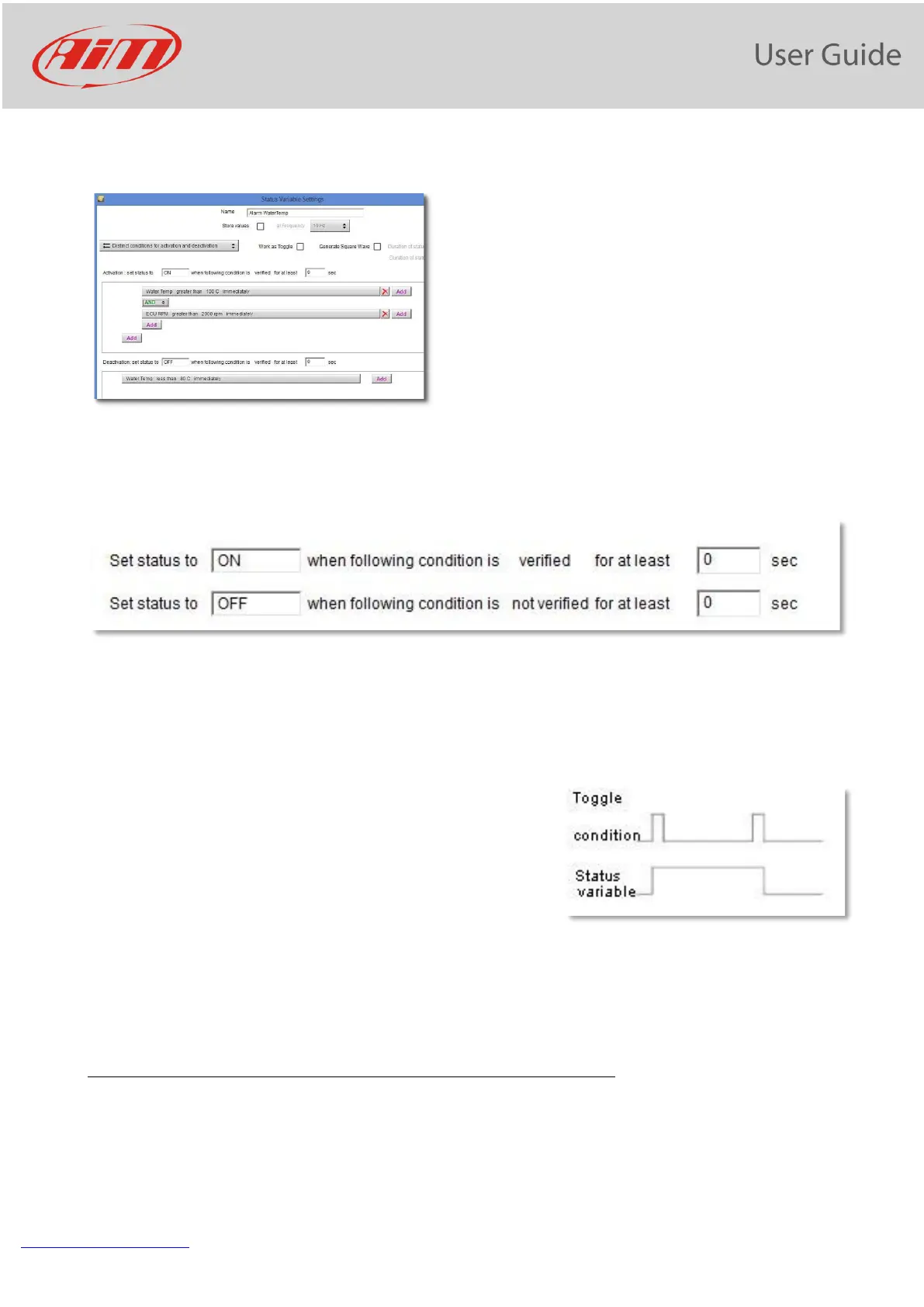

It is possible to associate a LABEL to Status Variable value:
And use this label per every further control or indication in the display.
A Status variable may also be activated in two different special ways:
As Toggle: the Status variable is set to TRUE (1) the first time the
condition swaps from FALSE to TRUE and remains TRUE till when
the same condition swaps again from FALSE to TRUE.
As Square Wave: The Status variable may generate a Square wave,
for which it is possible to set both ON time and OFF time, whenever the activation condition is
valid.
Multiple output values each with its own condition
This is the only case in which the Status variable assumes more than 2 values. An example may
be the management of a rotary switch, connected to an analog input, as shown in the following
picture:
