Aiphone IX SERIES Web Setting Manual

105
Configuring the Station

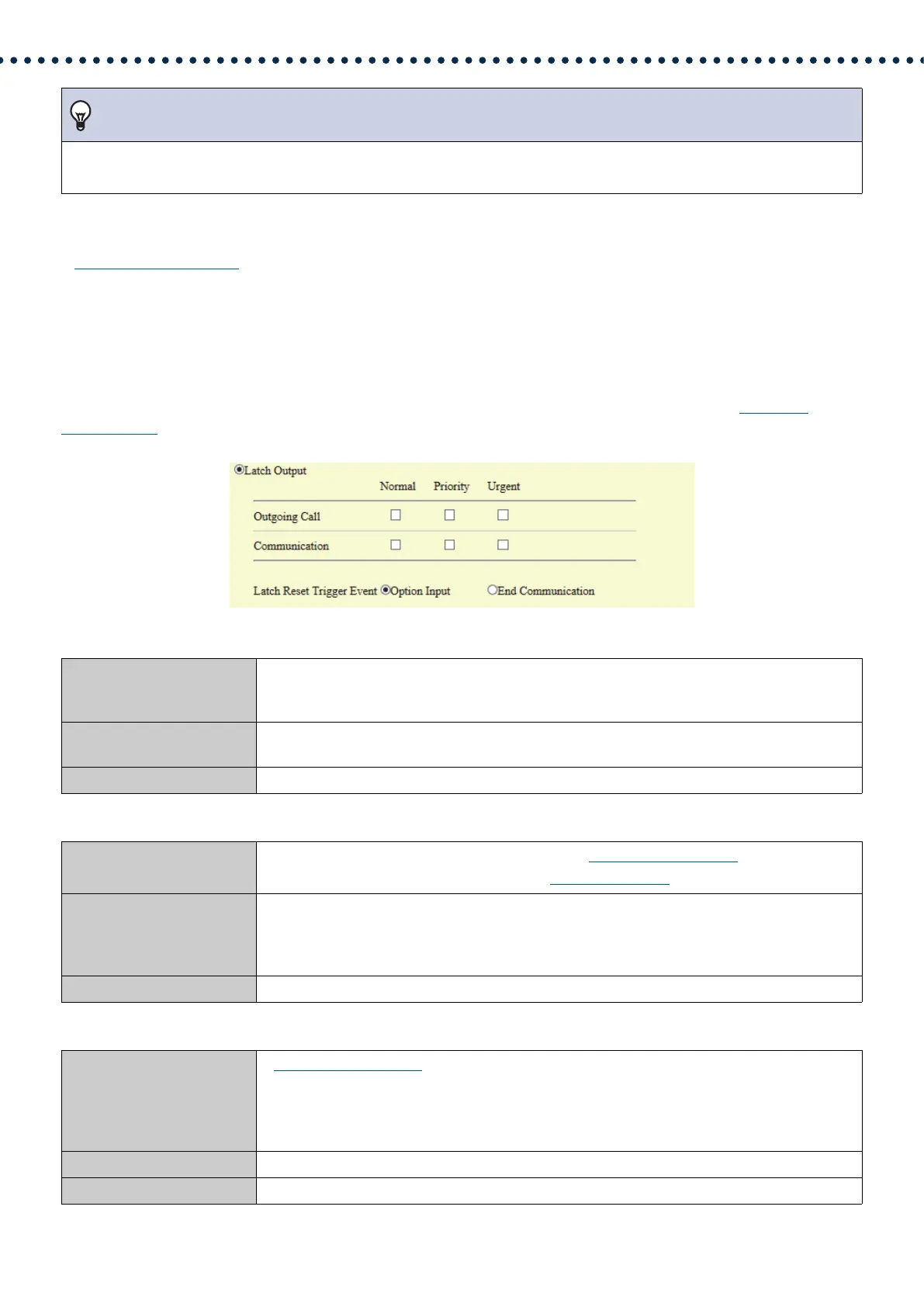

Latch Output advanced settings
If “Function (→page 104)” is set to "Latch Output," select the station operating state for when relay output occurs.
This can be selected for each operation priority (multiple selections allowed).
You can choose from two restoration methods for relay output.
• Option Input (default value): The relay output operating the flashing light is stopped by contact input.
• End Communication: The relay output operating the flashing light is stopped by starting and ending a call or via
contact input.
By default, all are set to "Option Input." To recover via contact input, be sure to set "Option Input" - “Function
(→page 102)” to "Relay Latch Reset."
■ Option Relay Control
■ Output Time Range
■ Door Release Authorization
Note
• For "Incoming Page," relay output is performed even during message paging and external input paging.
• For "Monitored," relay output is performed even during scan monitoring.
Description Configure whether to Enable or Disable control when controlling the output terminals using the
Speed Dial buttons on IX-MV7-*. If set to "Enable," this can be controlled as optional relay. The
output time will be the output time configured in IX-MV7-*.
Settings • Enable
• Disable
Default values Disable
Description Configure the output time range of the relay output if “Function (→page 104)” is set to "Door
Release" or if the relay output is controlled via
“CGI (→page 120)”.
Settings • 200 - 2000 [msec]: Select when configuring a value from 200 to 2000 msec (by 200 msec).
Enter the time in "Output Time [msec/sec]♦."
• 3 - 600 [sec]: Select when setting a value from 3 to 600 sec (by 1 sec).
Enter the time in "Output Time [msec/sec]♦."
Default values 400 msec
Description If “Function (→page 104)” is set to "Door Release," configure the Authentication Key used to
authenticate door release for the electrical lock connected to the station. Door release will be
permitted if it matches the Authentication Key of the station connected to the door to release.
This will also be the Authentication Key used to release the door using the numerical keypad on
IX-MV7-* or the VoIP Phone.
Settings 1 - 20 digits
Default values —
