Aiphone IX SERIES Web Setting Manual

103
Configuring the Station

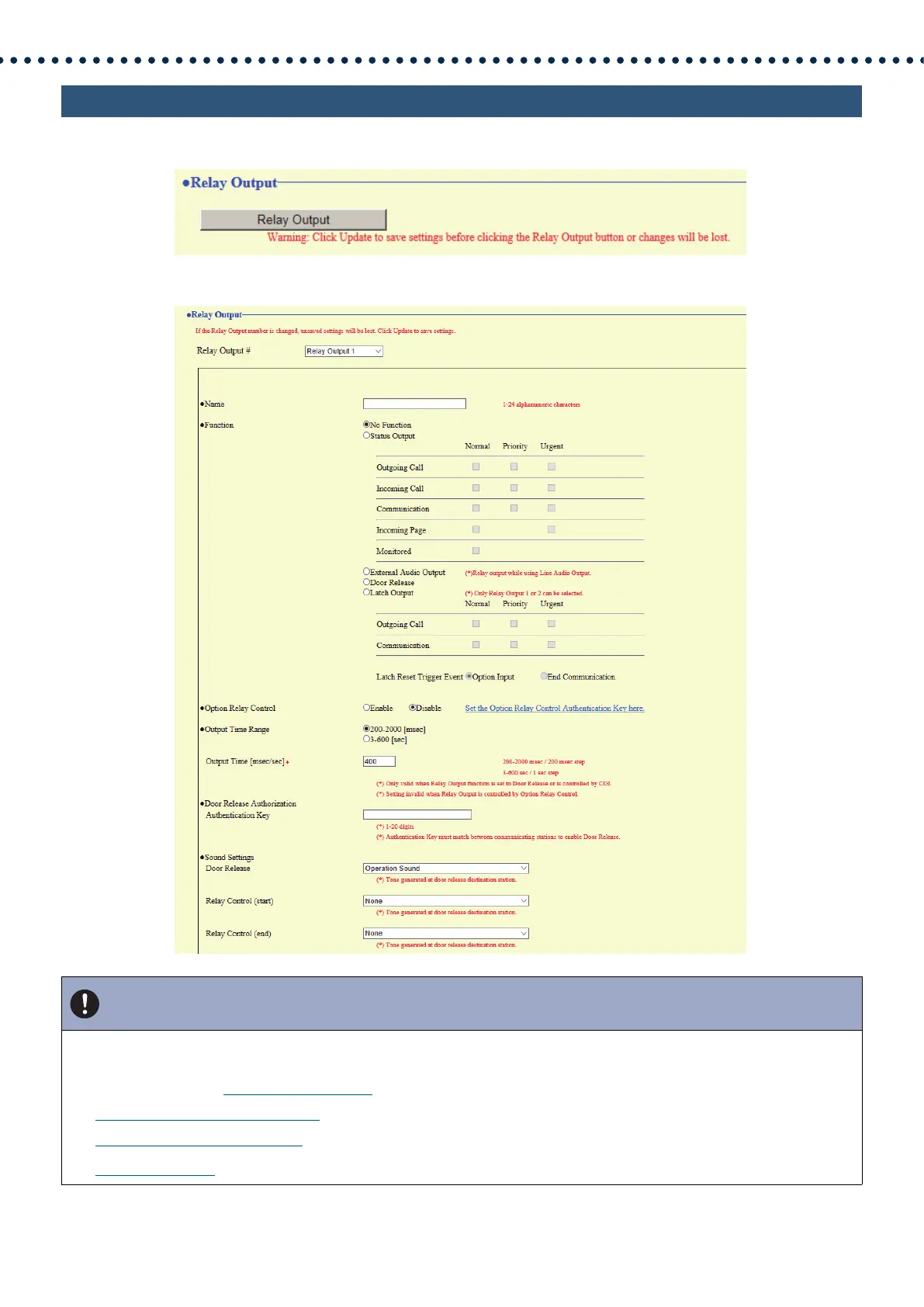

5.2 Relay Output
Click [Relay Output].
Or, click "Relay Output" in the Setting menu to switch to the Relay Output window.
Important
• The four relay output methods are shown below. Redundant configuration is possible for each relay output. If multiple
commands occur during a single relay output, the latest command will take priority.
– Function selected in
“Function (→page 104)”
–
“Option Relay Control (→page 105)”
–
“Schedule Settings (→page 106)”
–
“CGI (→page 120)”

Aiphone IX SERIES Specifications

General

Series	IX Series
Communication	IP Network
Audio	Yes
Video Codec	H.264
Network	Ethernet
Video	Yes
Integration	Yes
Security	Encrypted Communication
Power	PoE (IEEE 802.3af)
Video Resolution	720p HD
Audio Codec	G.711
Mounting	Wall Mount
Relay Outputs	Yes
Inputs	Yes
Relative Humidity	90% or less, non-condensing
Audio Output	Speaker (Internal or External)
Audio Input	Built-in Microphone
Type	Video Intercom
