Aiphone IX SERIES - Page 40

40
Startup and configuration
*1 Found by opening terminal cover.
*2 Press and hold the reset button for at least 1 second (less than 5 seconds), then release to restart (reset) the station.

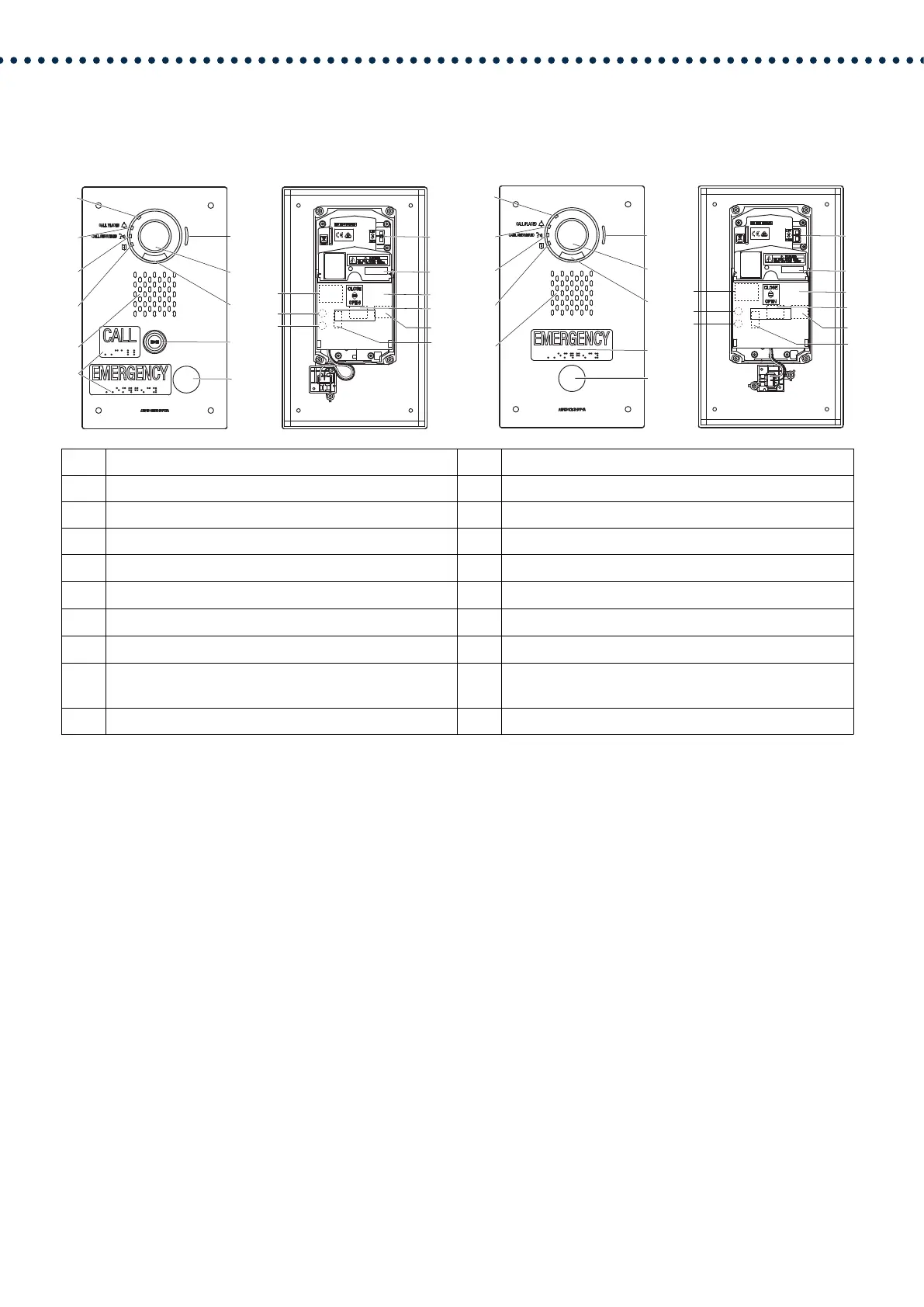

1 Status indicator (orange/blue) 11 Urgent call button
2 Call indicator (green) 12 Camera angle adjustment lever
3 Communication indicator (orange) 13 MAC address
4 Camera 14 Terminal cover
5 Microphone 15
Option connector terminal
*1
6 Door release indicator (green) 16
LAN terminal (PoE/PSE)
*1
7 LED for night illumination 17
LAN terminal (PoE/PD)
*1
8 Speaker 18
Reset button
*1*2
9 Call button
Surrounding area is lit up with blue light.
19
microSD card slot
*1
10 Braille 20
microSD card release button
*1
1
2
3
6
8
10
5
4
7
9
11
12
13
14
15
18
20
16
17
19
1
2
3
6
8
5
4
7
11
10
15
18
20
12
13
14
16
17
19
IX-DVF-2RA
Front
Back
IX-DVF-RA
Front
Back
