AIREDALE ET05D - Unit Overview and Features

Ecotel™ Telecoms
12
Ecotel™ 5-15kW Technical Manual 9321381 V1.3.0 02_2018

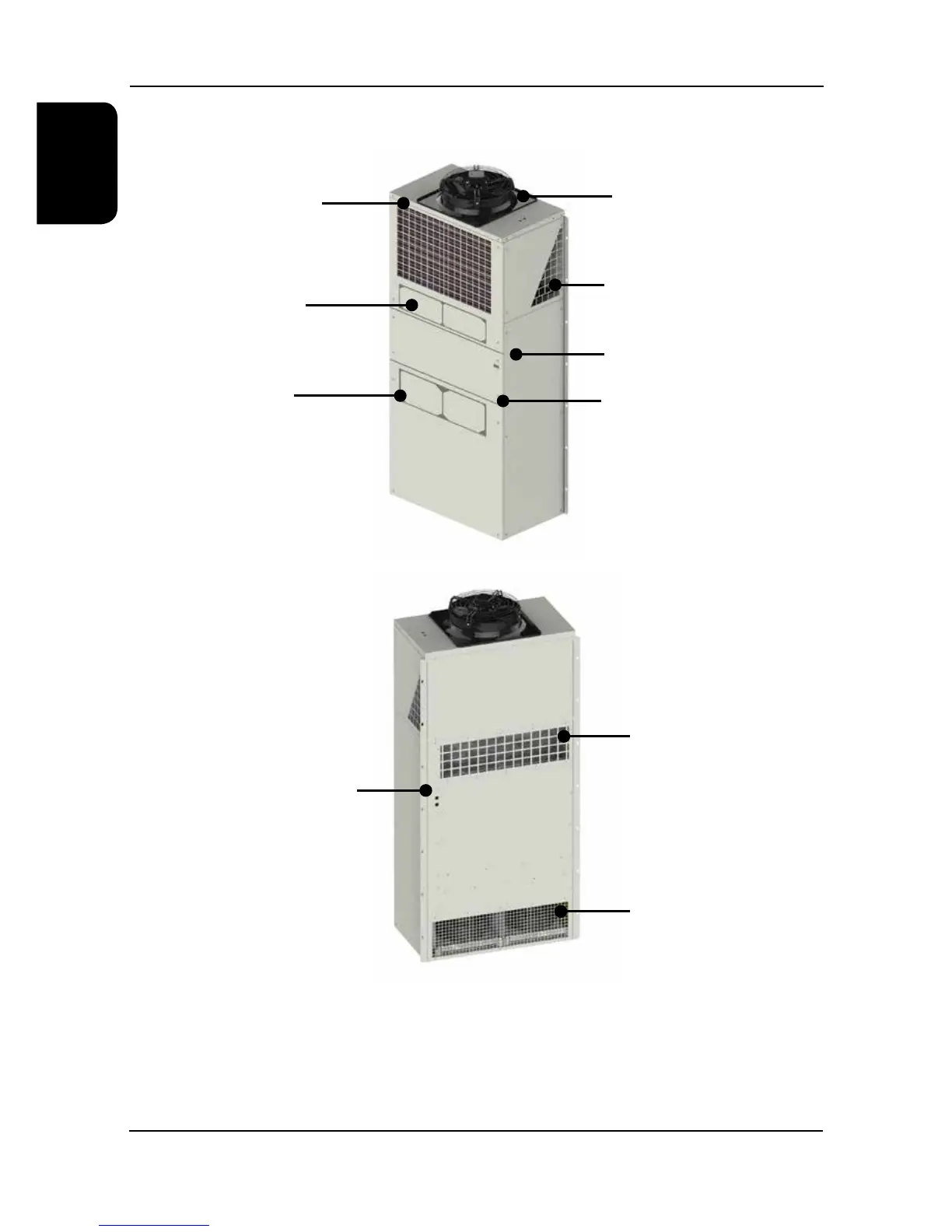

450mm AC Axial Condenser
Fan (ErP compliant)
Condenser Coil protected
by punched panels. “V”
block coil for increased
surface area
Tamper Proof Fixings
Control Panel Access
Inlet Louvre
Exhaust Louvre
RAL 7038 (Agate Gray) or
RAL 6014 (Yellow Olive)
painted panels
Unit Overview
Features
Return Air Aperture
Supply Air Aperture
Customer Connection Points
for Wiring
(Controls Point above,
Power Point below)
Introduction
