AIREDALE ET05D - Dimensions

Ecotel™ Telecoms
28
Ecotel™ 5-15kW Technical Manual 9321381 V1.3.0 02_2018
Installation Data

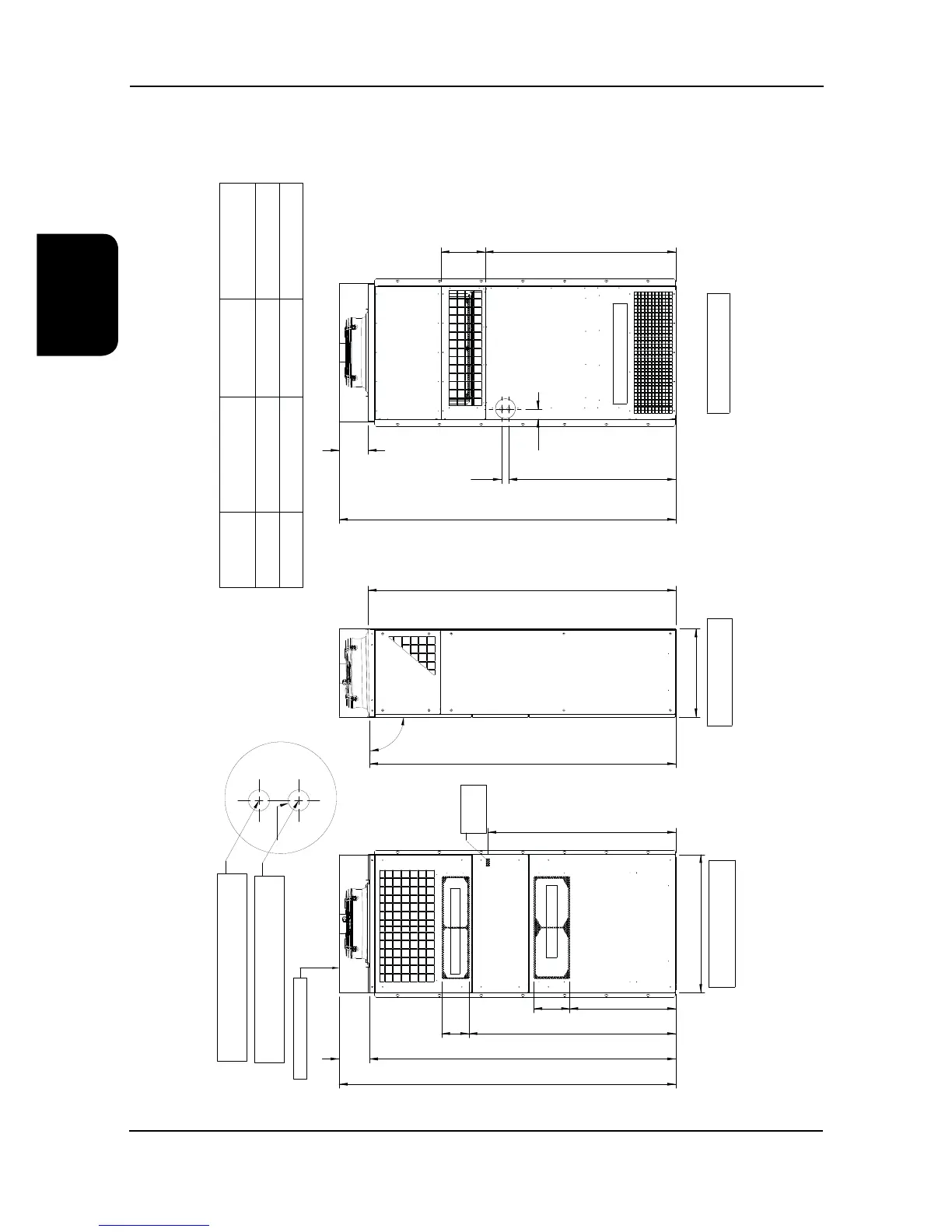

Dimensions
ET05/08D-HX1F*-*
FAULT CODE
DISPLAY
(OPTIONAL)
PLENUM (OPTIONAL)
CUSTOMER INCOMING CABLES
(CONTROLS)
CUSTOMER INCOMING CABLES
(POWER)
CABIN APERTURE
INLET LOUVRE
EXHAUST LOUVRE
FRONT VIEW
SIDE VIEW
REAR VIEW
SUPPLY AIR (CABIN)
910
1101 47
65
699 237
1363
180
2019
1240
580
'B'
'A'
A
DETAIL A
2220
89°
O 25
201
2019
2029
2911257
DIMENSION
AC CONDENSER
FAN 50Hz
AC CONDENSER
FAN 60 Hz
EC CONDENSER
FAN
'A' 2219 2219 2181 'B' 190 190 152
Installation
