Specier’s Guide
Nomenclature
Introduction
The Ecotel is a self contained packaged outdoor unit designed to cool areas such as outdoor cabins, shelters and
telecom base stations.
The unit range shall be available with single circuit 5kW, 8kW,12kW and 15kW and dual circuit 12kW and 15kW.
Various modes of operation including:
● Mechanical Cooling
● Free Cooling Mode
● Concurrent Mode (DX and Free cool)
● Heating Mode
● Attend Mode
The unit shall control by a temperature setpoint as standard.

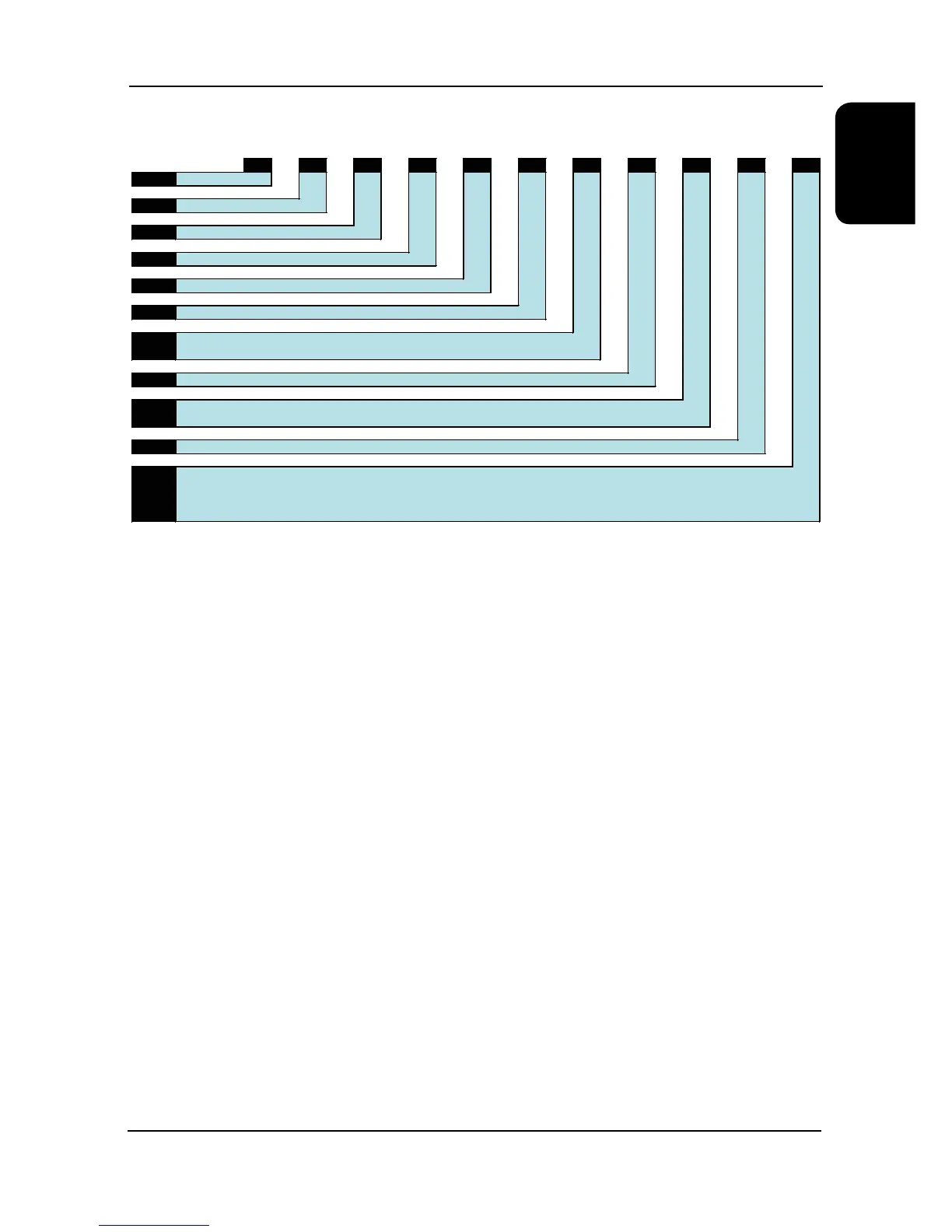

ET 15 D - H X 2 F 1 - 7
ET
05-15 Nominal cooling capacity in kW
D Downflow
-
H
X
1
2
F
0
1
-
0
7
1
2
Emergency Backup (-48VDC)
EcoTel Unit
Separator
High Efficiency
Separator
400V / 3PH + N / 50Hz
230V / 1PH + N / 50Hz
380V / 3PH + N / 60Hz
220V / 3PH / 60Hz
DX Cooling
Single Circuit, Single Compressor
Dual Circuit, Single Compressor
Free Cooling
No Emergency Backup
Introduction
