AIREDALE ET05D - Control System Overview

Ecotel™Telecoms
21
Ecotel™ 5-15kW Technical Manual 9321381 V1.3.0 02_2018
Controls

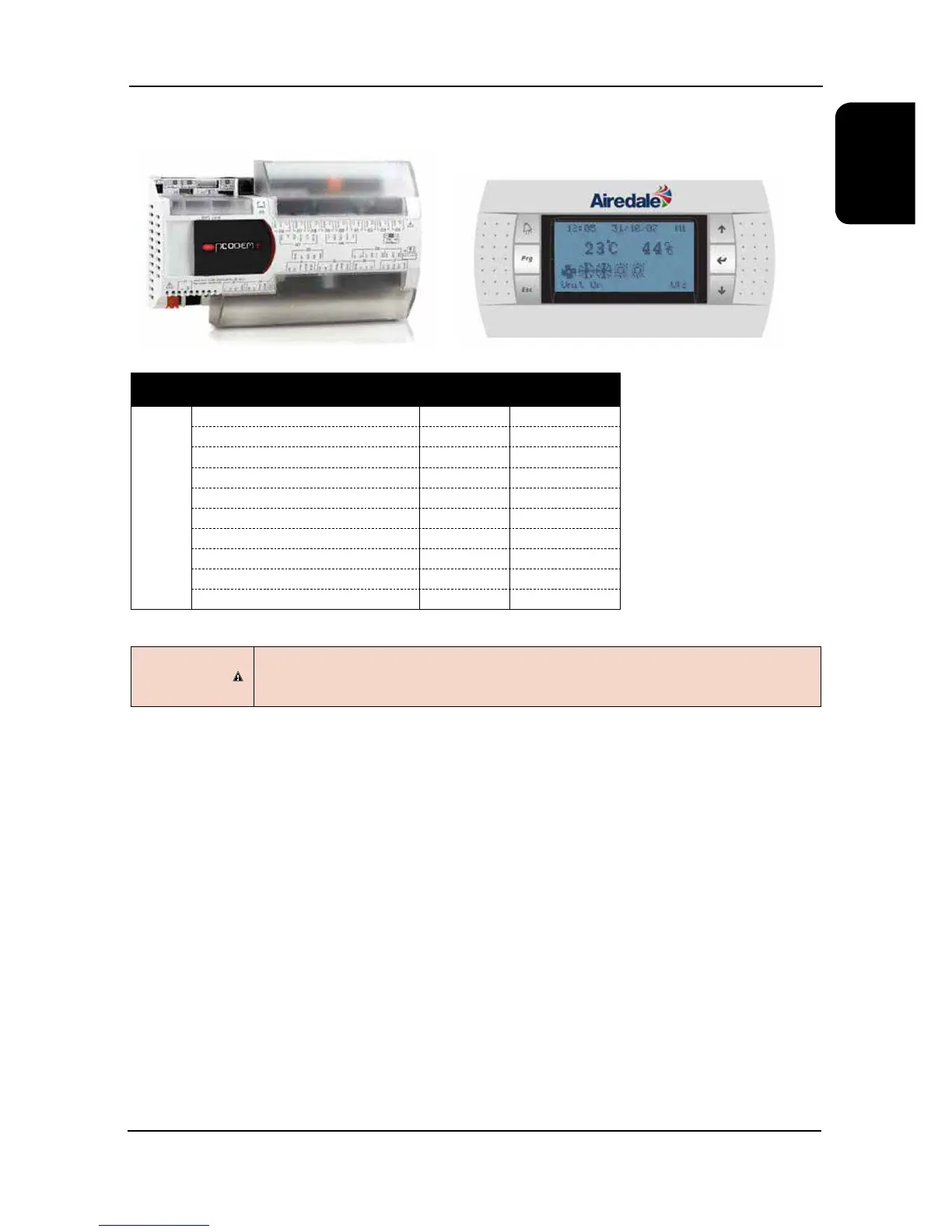

pCO OEM+ controller
Features
System Conguration
ET05/08D-HX ET12/15D-HX
Controls
pC0 OEM+ Controller
● ●
pGD1 Remote Display
● ●
Evaporator Fan Control
● ●
Return Air Temperature Control
● ●
Constant air Volume
○ ○
Alarm Code Display
○ ○
BMS Interface Cards
○ ○
Humidity Monitoring
○ ○
Filter Change Switch
○ ○
Attend Switch
○ ○
●
Standard Features ○ Optional Features — Feature Not Available
The Ecotel is not tted with a display terminal as standard. This is to prevent unauthorised access
to the controls software on units which can be targets for vandalism and are often installed at
remote and rarely attended locations. A pGD1 display is supplied loose with the unit as standard.
IMPORTANT
pGD1 Display
The units shall be supplied with a European ROHS Directive 2002/95/EC compatible microprocessor controller
connected to an 8 x 22 back-lit LCD keypad display. LEDs shall not be acceptable. The microprocessor controller offers
powerful analogue and digital control to meet a wide range of monitoring and control features including a real time clock
and industry standard communication port and network connections.
All the boards feature a 16 bit microprocessor, and consequently the calculation power and operation processing speed
have been signicantly increased. Also featured are a visual alarm and the facility to adjust and display control settings
by local operator for information and control.
Introduction
