Display/Keypad
The display keypad features a simple array of keys to navigate through the in-built menus.
With an 8 x 22 character (132 x 64 pixel) screen size, back lit in white for improved contrast, the larger screen shall
provide for user friendly viewing and easy status recognition by displaying a combination of text and icons.
The default screen shall show the unit status without the need for interrogation and an easy to navigate menu structure
for further interrogation and adjustment shall be provided.

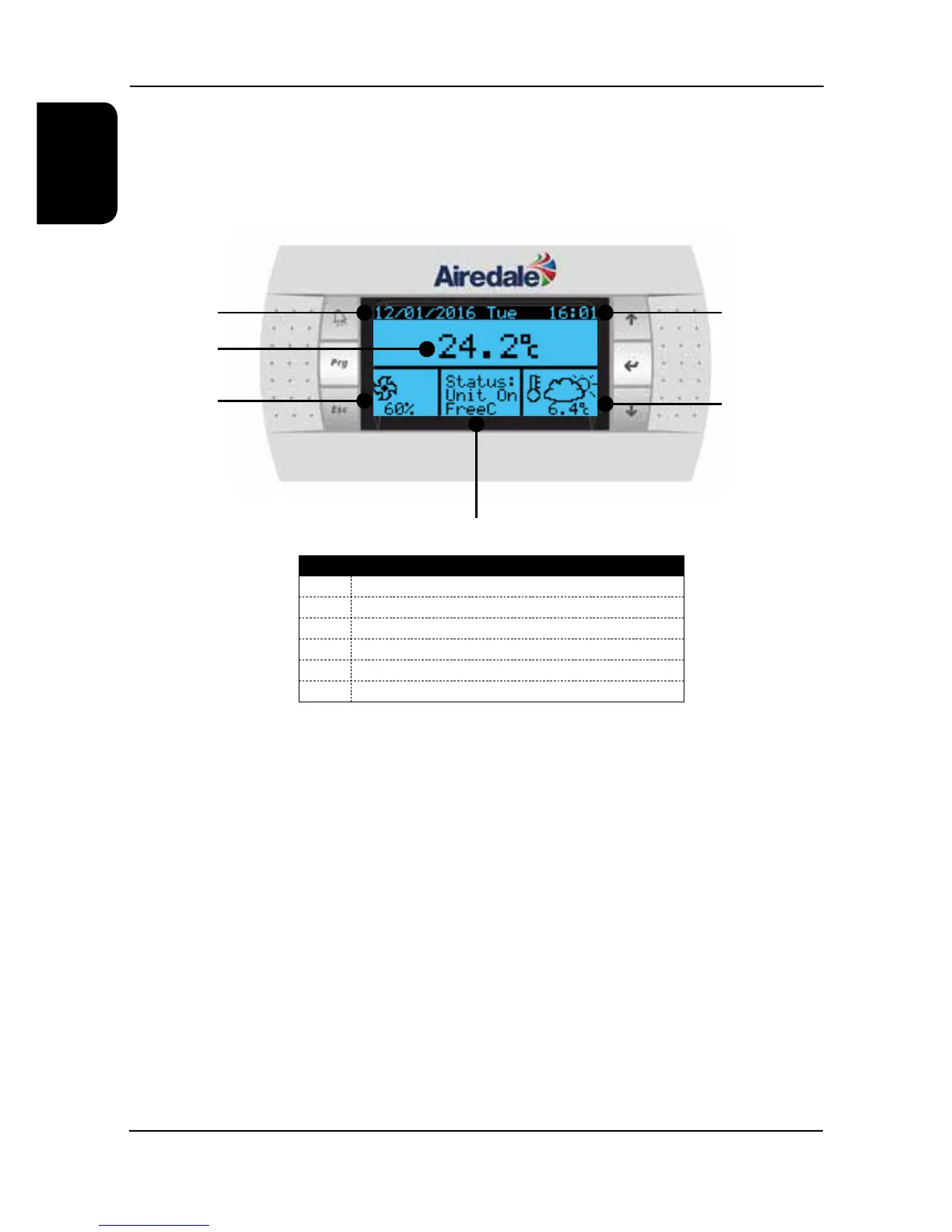

The pGD1 display can be connected within the control panel to the controller using an RJ11 cable.
1
2
4
3
6
5
No. Description
1 Date
2 Time
3 Cabin Temperature (max./avg.)
4 Fan Speed & Heating Status
5 Additional Information (ambient temp./setpoint/humidity)
6 Unit Status
