2 ProHood Capture Hoods PH730/PH731
Instrument Description
The basic PH730 includes a micromanometer, carrying case, 18 in. (46 cm) pitot tube, (2) static pressure
probes, (2) 8 ft (2.4 m) Norprene
®
tubing, user manual, LogDat-CHfor Windows
®
data downloading
software and RS232 interface cable, neck strap, internal NiMH battery charger, (4) AA NiMH batteries,
AC adapter, and NIST traceable certificate.
The basic PH731 contains all of the PH730 components plus 2 ft 2 ft (610 mm 610 mm) air capture
hood, frame, and base. A variety of optional tools (see below) are also available to meet your
measurement needs.
The following paragraphs provide brief descriptions of the micromanometer and the various standard and
optional tools for use with the ProHood Capture Hood Refer to Chapters 3 and 4 for more detailed
information on using the micromanometer and taking measurements with various sensors and probes.
Micromanometer

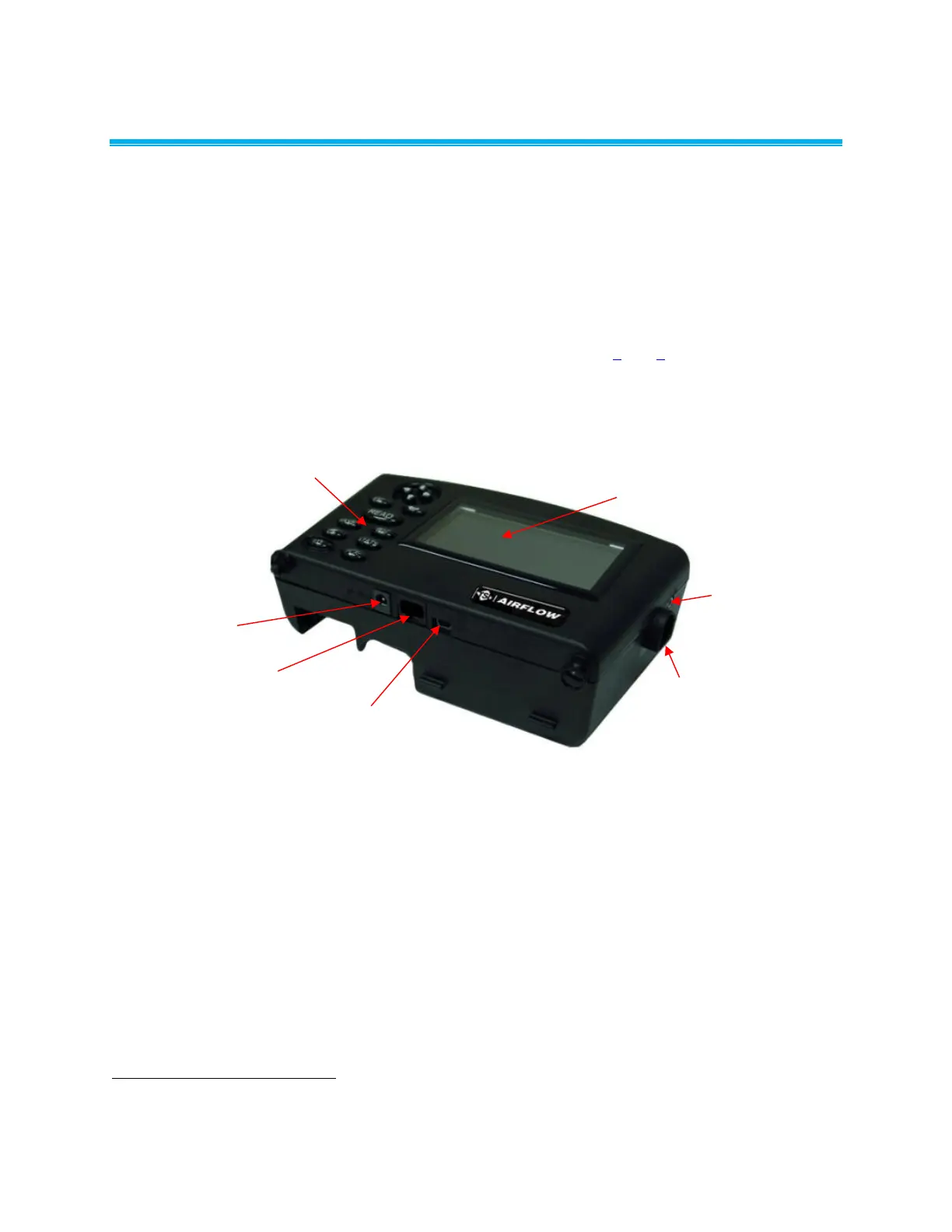

Figures 1 and 2 show the features of the micromanometer used in the PH730/PH731.
Keypad
AC Adapter
Connection
Display
Headphone
Connection
USB Port
Probe Connector
RS-232 Port
(factory use
only)
Figure 1: Features of the PH730/PH731 Micromanometer, Front View
®
