Chapter 5. Changing Capture Hoods
This chapter identifies the flow hood parts and gives instructions for assembling the flow hood.
Capture Hood Parts Identification

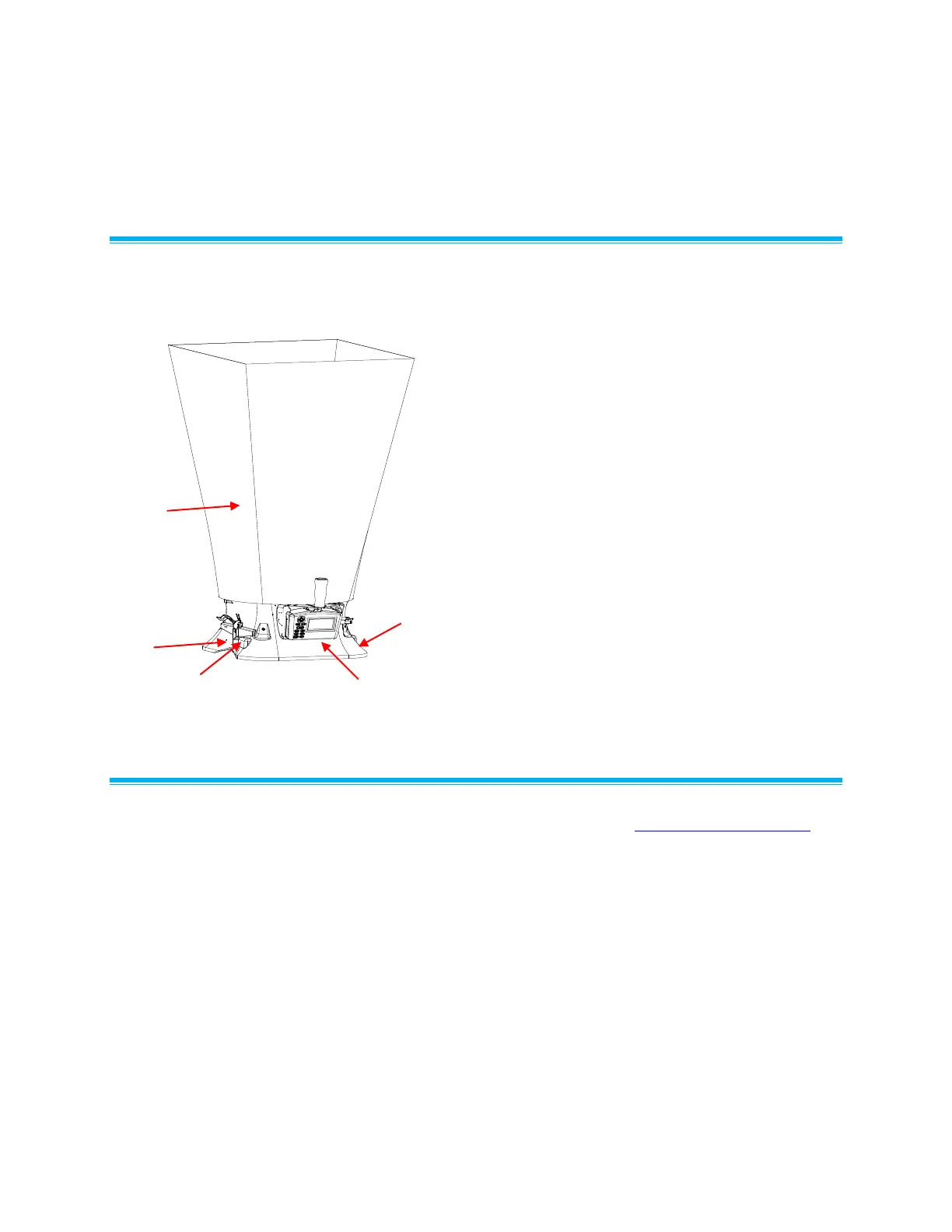

Figure 15 identifies the major parts of the capture hood, which are described in the following paragraphs.
Before using the hood, please familiarize yourself with the various parts. You may also refer to Tables 1
through 3.
1 Fabric hood - Basic hood assembly
2 Base allows micromanometer to be attached
3 Micromanometer with display
4 Flap Actuator
5 Read Switch
Figure 15: Flow Hood Components
Capture Hood Assembly
The Capture Hood is shipped from the factory partially assembled with the 2 ft 2 ft (610 mm 610 mm)
nylon hood attached to the base. If you wish to use another hood size, see Changing Capture Hoods.
To complete the assembly of the 2 ft 2 ft (610 mm 610 mm) hood, follow these six steps:
1. Place the base of the capture hood on the floor.
2. Lift the top of the fabric. Insert one end of a support pole into its pole mount in the base. There is a
cup in each corner of the frame to accept the other end of each support pole.
3. Grasp the support pole. Bend the pole slightly to insert the top end of the pole into the support pole
cup located in the opposite corner of the fabric frame. The poles are connected to the frame corners
in a crisscross fashion as shown in Figure 16.
