Airflow Instruments ProHood PH731 User Manual

48 ProHood Capture Hoods PH730/PH731

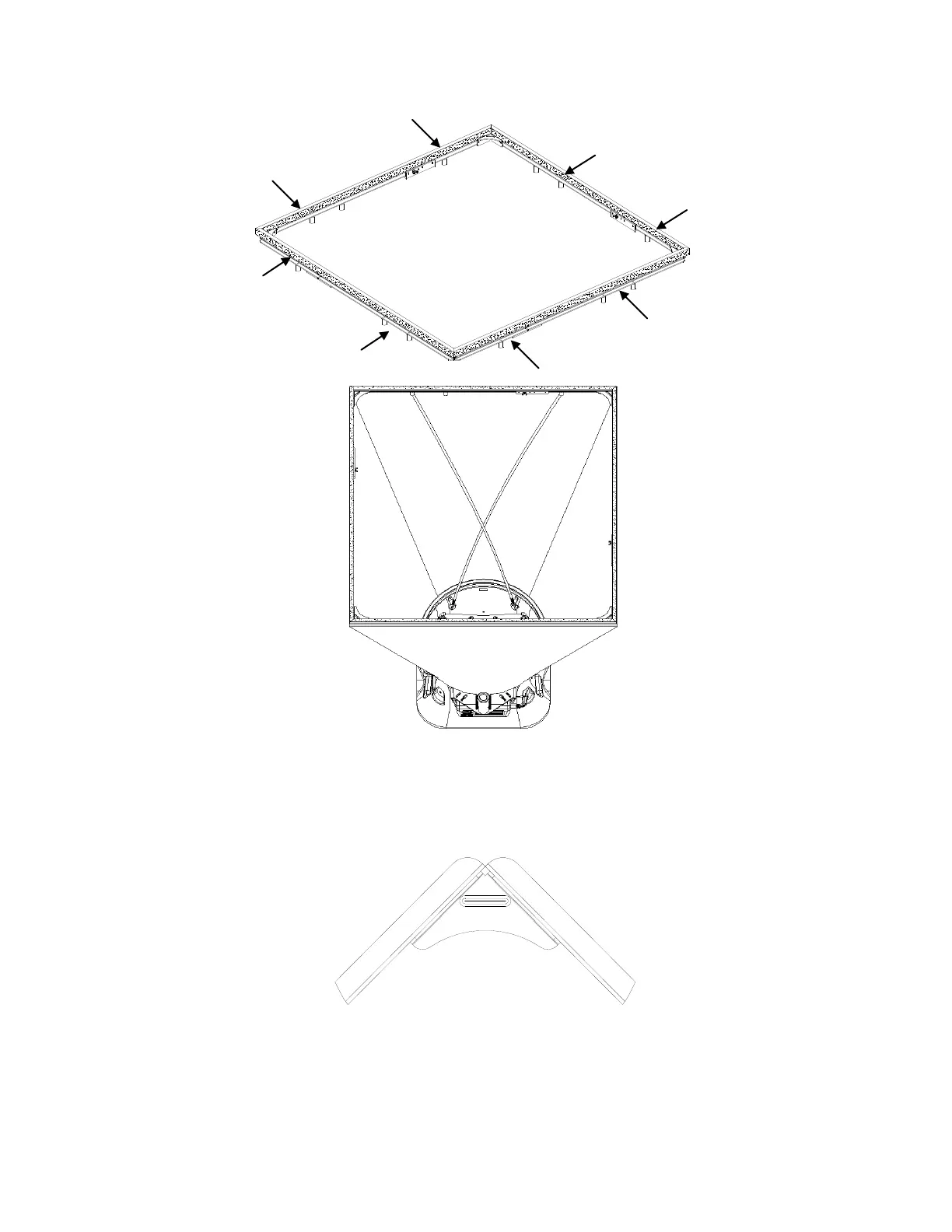

Figure 20: 3 ft  3 ft (915 mm  915 mm) hood and frame. The support poles always cross as pairs at the
front and back of the fabric hood. For the 3 ft  3 ft (915 mm  915 mm), the support poles are inserted into
the outside ferrule locations.
Figure 21: Frame Corner Assembly
1
6
6
1
6
1
6
1
