Chapter 2: Installation
Physical Installation
Page 16
Lift the unit from below with lifting equipment or tools, and then move the unit to the wall. Use the screws (installer
supplied) to affix the unit on the wall. Generally this is done by following these steps:
1. Position the unit next to the wall using a forklift or leveling system.

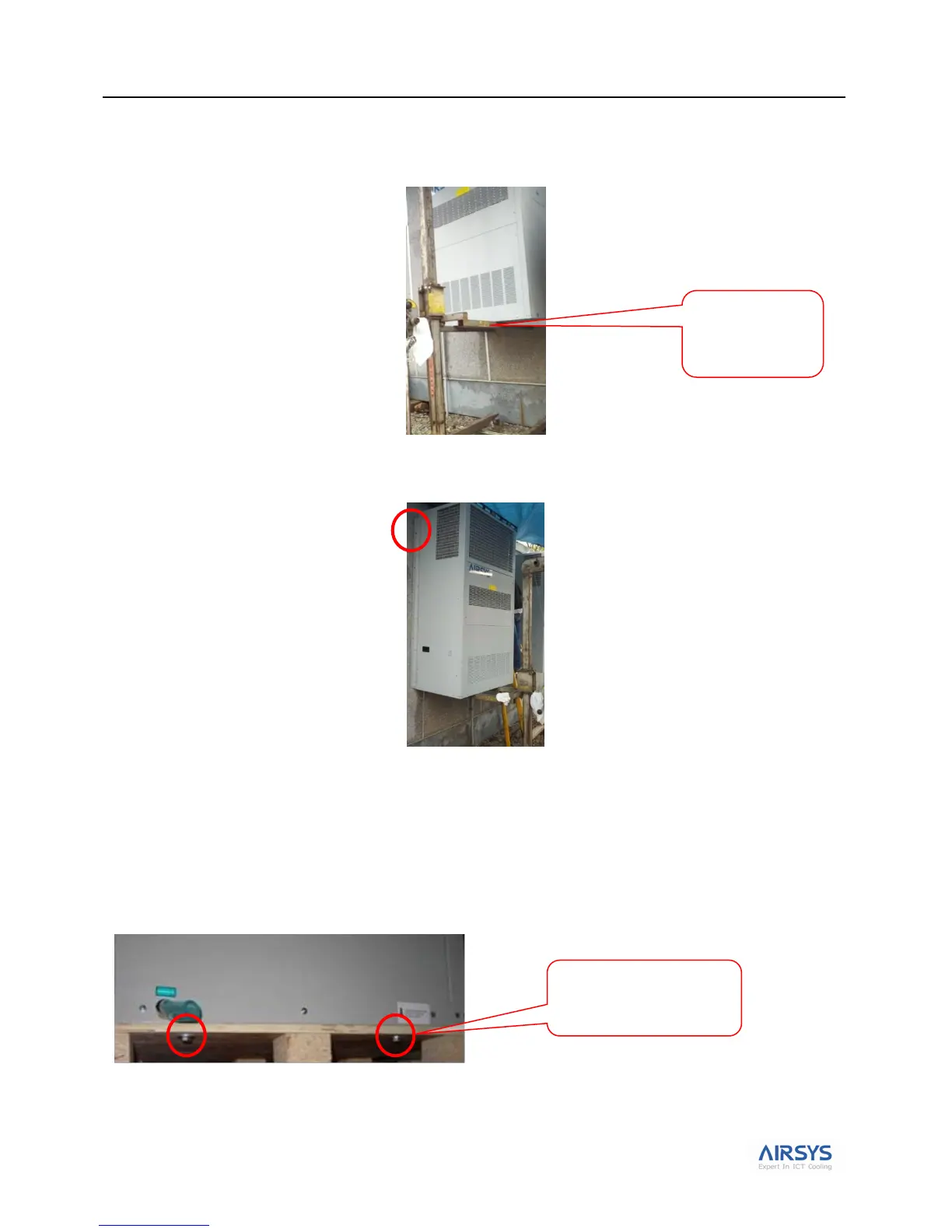

Figure 7: Position the Unit
2. Attach a single mounting screw and adjust to ensure the unit is level.
Figure 8: Verify the Unit is Level
3. After the unit is level, attach the remaining mounting screws (a quantity of 10 total for each WPU).
Remove Wooden Pallet from WPU
The WPU is bolted to a wooden pallet to facilitate safe lifting and transport of the unit. Four bolts attach the pallet to
the unit, as show in Figure 9. The pallet frame is recessed under the WPU to allow for easy installation while using a
forklift. Before completing the mounting of the unit to the wall, remove the pallet by removing the four bolts.
Figure 9: Remove Wooden Pallet
Use either a level
system or a forklift
to position the unit.
Remove the 4 bolts under the
unit to remove the pallet
