Appendix 1:Drawings
Page 73
Appendix 1:Drawings

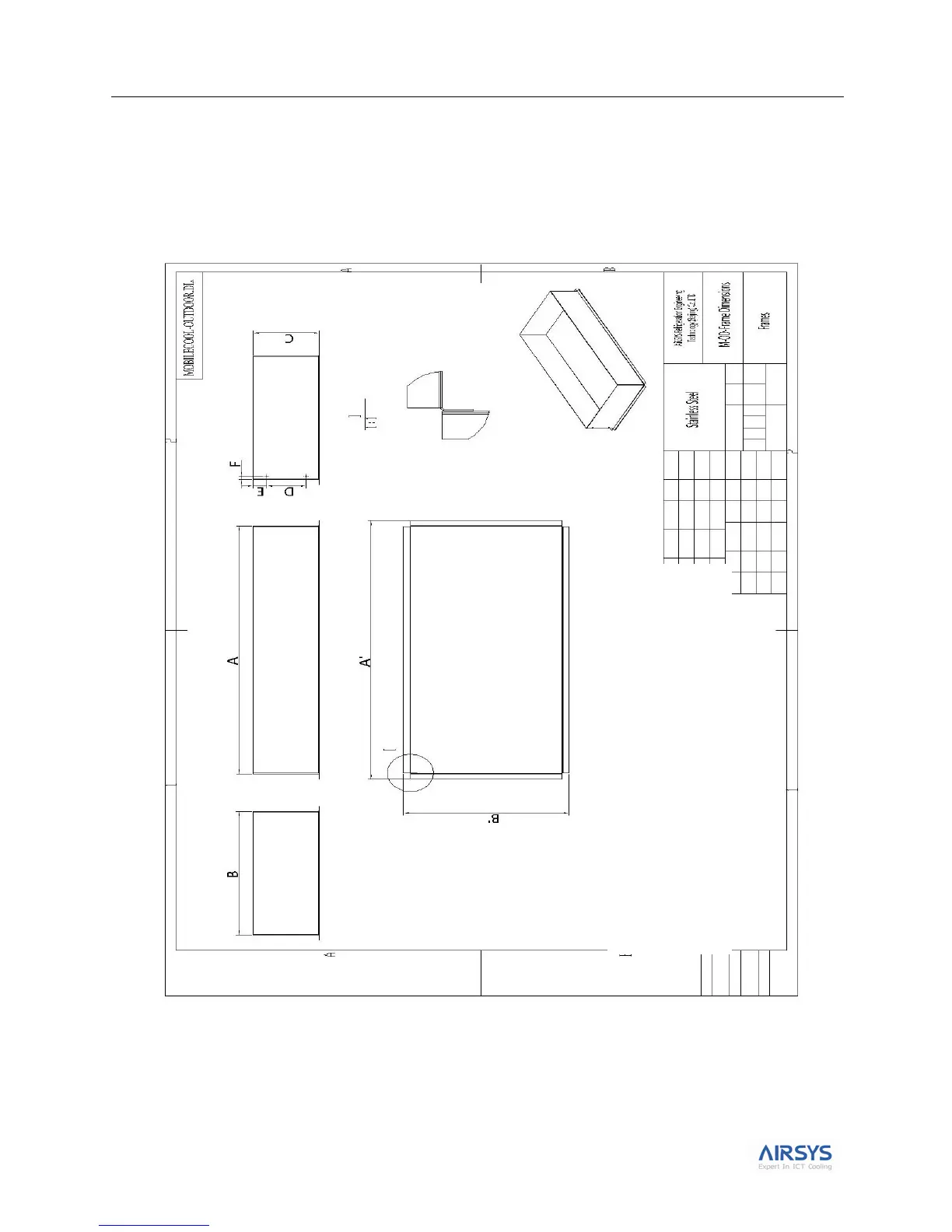

Figure 23: Frame Dimensions
Technical Notes:
1. Use two holes provided for fastening the sheet metal together.
2. Remove the burrs.
3. Use stainless steel sheet metal that is 0.8 mm (.031 in) thick.
