Ki Pro Installation and Operation Manual — Installation
Attaching the optional Ki Pro Exo-skeleton rod accessory kit is simple:
1. Open the kit box; you’ll find preassembled endplates—these must be
disassembled before you can attached the plates to the Exo-skeleton. Place an
endplate from the kit on the outside of the Exo-skeleton frame, aligning it’s two
screw slots with the two screw holes in the frame.
2. Insert one of the supplied screws from the inside of the frame through the frame
hole and slot. While holding the screw from the inside, place a supplied washer
over the threaded end of the screw and screw one of the supplied knobs over the
end of the screw.
3. Repeat step 2 for each of the 4 knobs, washers and screws.
Once the kit is installed, you can then loosen the rod lock knobs, insert user-supplied
15mm accessory rods, and then mount any desired accessories.
To raise or lower the rods, simply loosen the rod height adjustment knobs (the ones you
installed in step 2), lift the rods to the desired height, and then tighten the knobs once
complete.

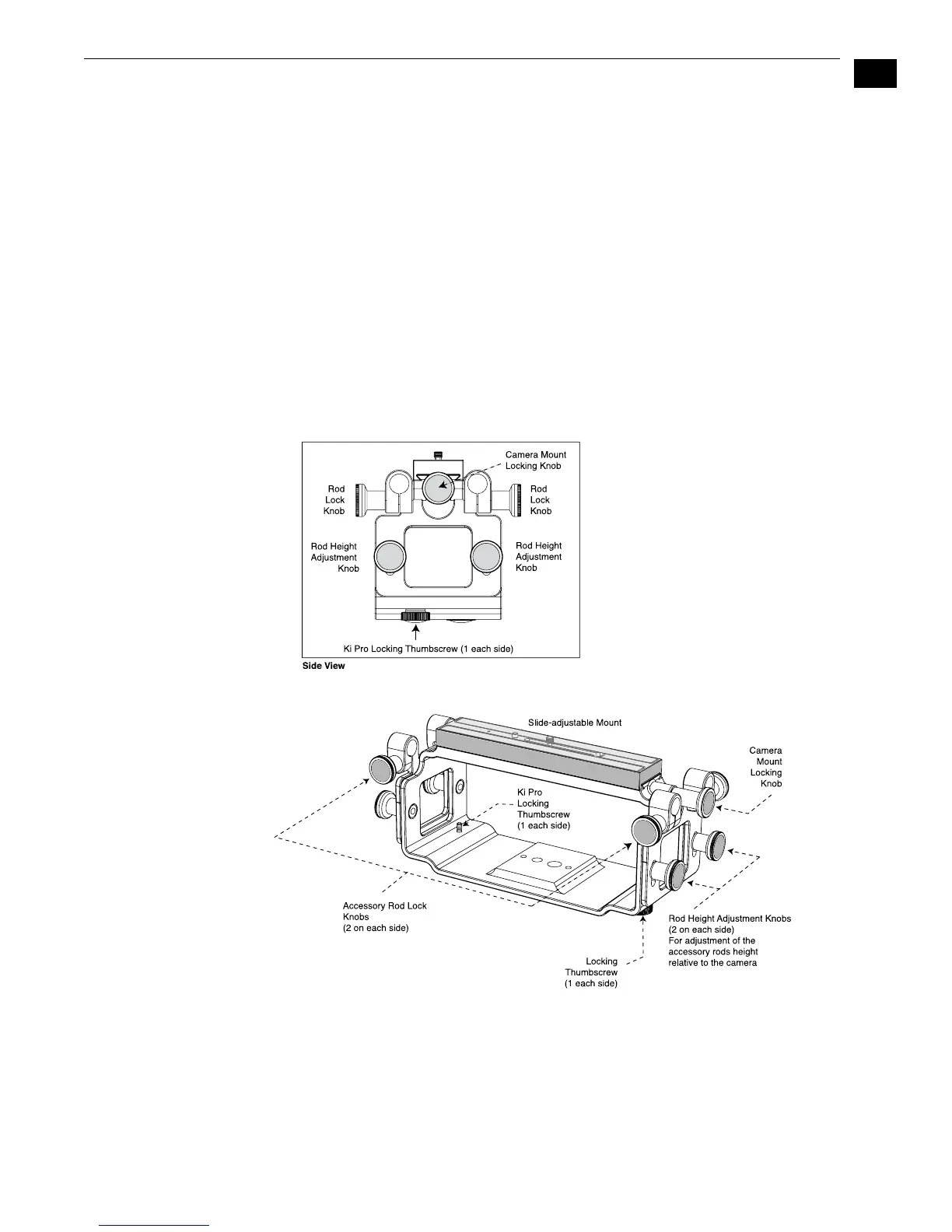

Exo-skeleton Endplates and Rod Height Adjustment
