Akai QZ-503R Series

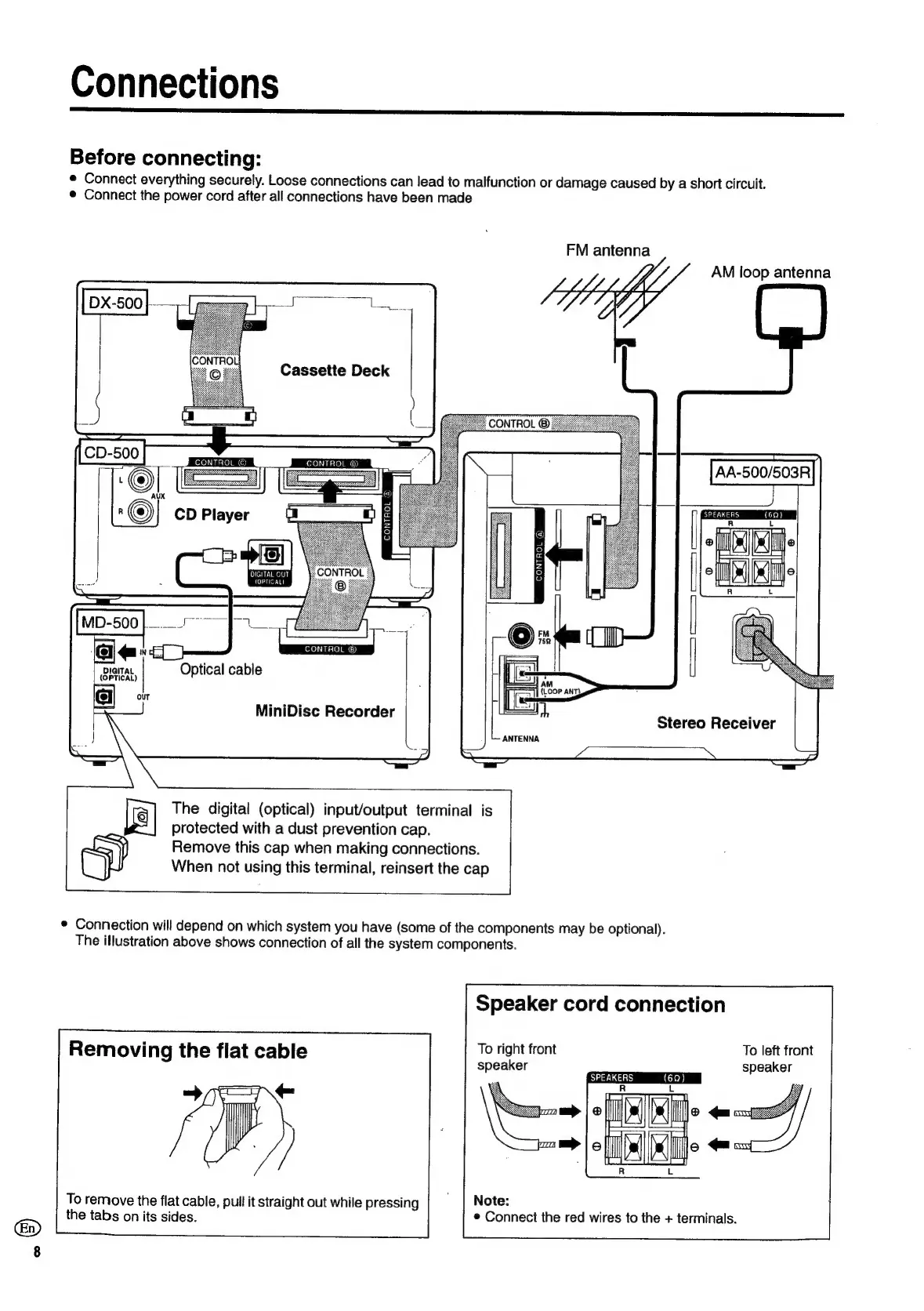

Connections
Before connecting:
¢
Connect
everything
securely.
Loose
connections
can
lead
to
malfunction
or
damage
caused
by
a
short
circuit.
¢
Connect
the
power
cord
after
all
connections
have
been
made
FM antenna
AM loop antenna
Cassette Deck
AA-500/503R
fofe] histo) MC
CONTROL @
DIGITAL OUT
(OPTICAL)
foto] Sars ielanc))
DIGITAL Optical cable
(OPTICAL)
MiniDisc
Recorder
Stereo
Receiver
ANTENNA
The digital (optical) input/output terminal is
protected with a dust prevention cap.
Remove this cap when making connections.
When not using this terminal, reinsert the cap
*
Connection
will
depend
on
which
system
you
have
(some
of
the
components
may
be
optional).
The
illustration
above
shows
connection
of
all
the
system
components.
Speaker cord connection
To right front To left front
Removing the flat cable
speaker speaker
» +
/
To
remove
the
flat
cable,
pull
it
straight
out
while
pressing
the
tabs
on
its
sides.
© Connect the red wires to the + terminals.
