Protections
Warning
• Charge failure
• Battery under voltage
• Fail to stop
• Low fuel level (opt.)
• kW over load
• Negative phase sequence
• Loss of speed signal
Pre-alarms
• Low oil pressure
• High engine temperature
• Low engine temperature
• Over/Under speed
• Under/over generator frequency
• Under/over generator voltage
• ECU warning
Shut Downs
• Fail to start
• Emergency stop
• Low oil pressure
• High engine temperature
• Low coolant level
• Over/Under speed
• Under/over generator frequency
• Under/over generator voltage
• Oil pressure sensor open
• Phase rotation
Electrical trip
• Earth fault (opt.)
• kW over load
• Generator over current
• Negative phase sequence
LED indication
• Mains available
• Mains on load
• Generator available
• Generator on load

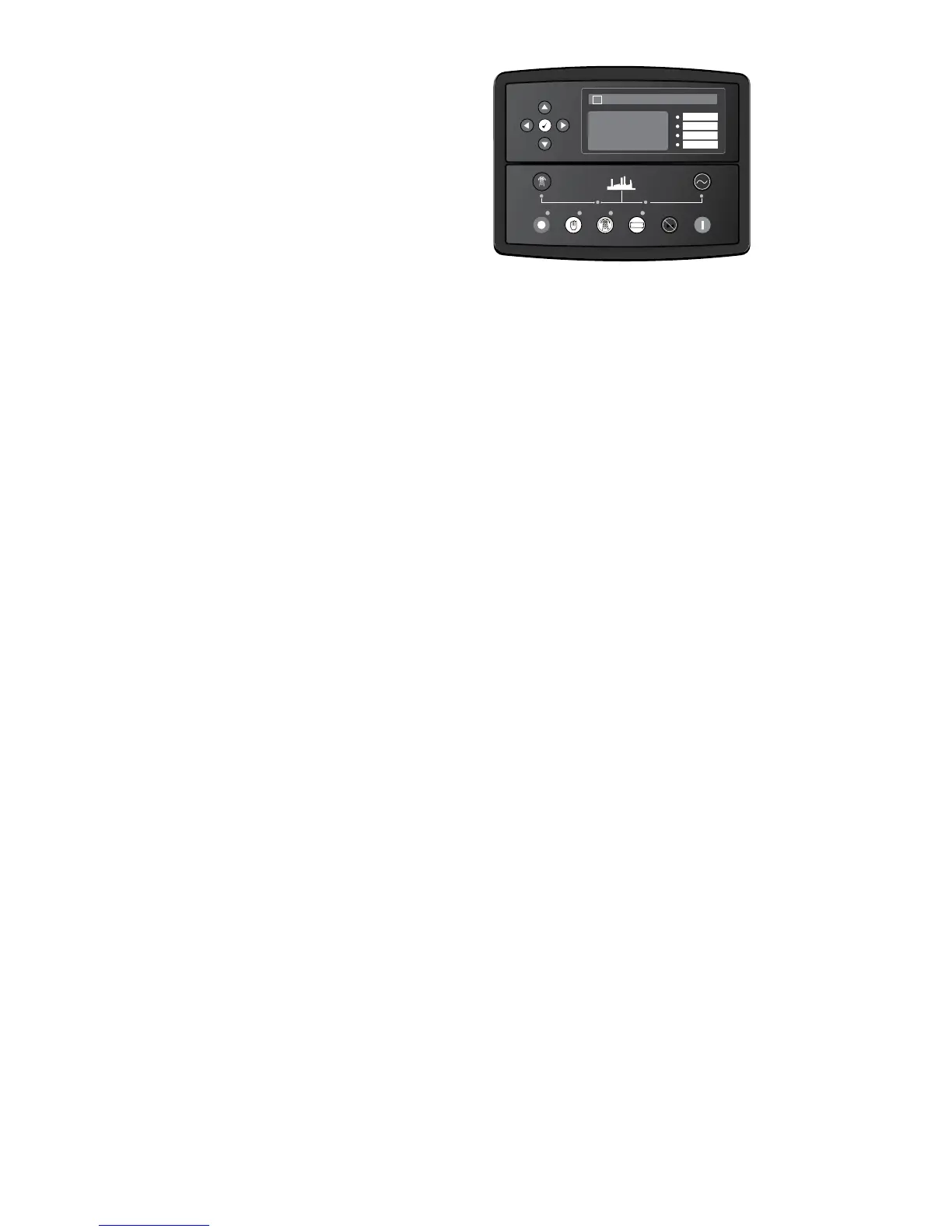

Figure 6.1. DSE, model 7320 control module
6.2. Control System P 602
Control, supervision and protection panel is mounted
on the generator set base frame.
Equipments:
• DSE, model 6020 Automatic Mains Failure module
• Static battery charger
• Emergency stop push button
DSE 6020 Module Features
• Automatic controls generating set, start and stop
• 3 phase generator and mains voltage monitoring
• Transfer between mains and generator power
• LCD display shows the status of the generator at
all time
• 4- line, 64 x 132 graphic display with LED backlight
• PC and front panel configurable
• Easy push button control
STOP/RESET - MANUAL - AUTOMATIC - TEST -
START
Display Scroll button Page button
Metering via LCD display
• Generator Volt (L-L, L-N)
• Generator Ampere (LI, L2, L3)
• Generator Frequency (Hz)
• Mains Volt (L-L /L-N)
• Mains Frequency
• Engine cooling temperature
• Engine oil pressure
• Engine speed
• Engine hours run
• Engine battery volt
• Event Log (5) events
AUTO
DEEP SEA ELECTRONICS
DSE 7320
DSE
