Service Manual Aktilite
CL128
Version 1.
3
Page 17
of 41

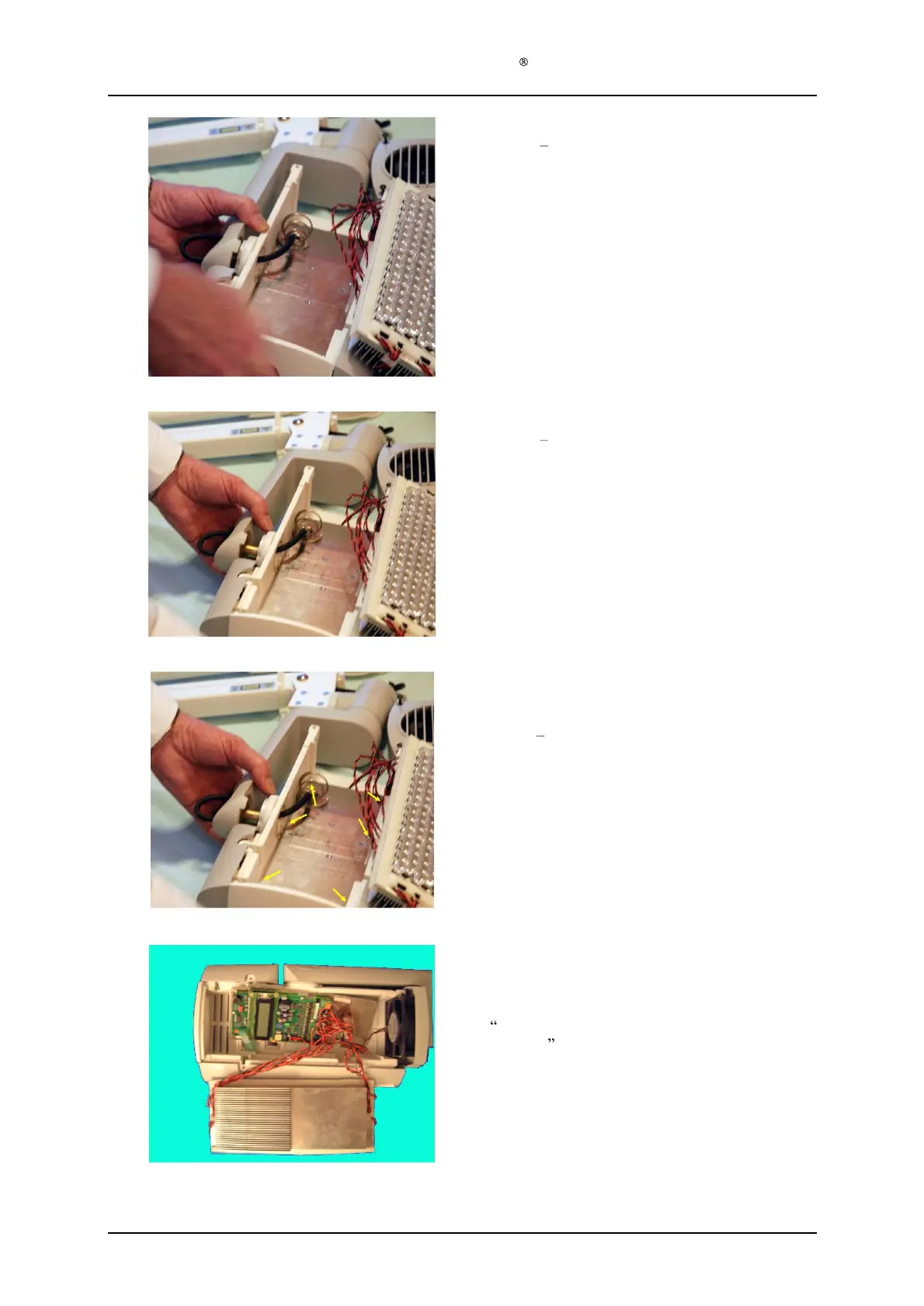

Step 15
Step 13
16
is only necessary if you need to change
the main arm or the housing
Take off the washers and spring.
Step 16
Step 13
16
is only necessary if you need to change
the main arm or the
housing
Bring out
the main arm
Step 17
The control electronics is fastened with 6 Torx 0,7
screws
shown by the arrows.
Step 18
The picture shows the electronics control board and
its connections. Wiring can be found in chapter 1.2
Read
y tetst
s
ystem electronics module (128
-0-
439
)
assembly
and on the next page.
