Service Manual Aktilite
CL128
Version 1.
3
Page 37
of 41

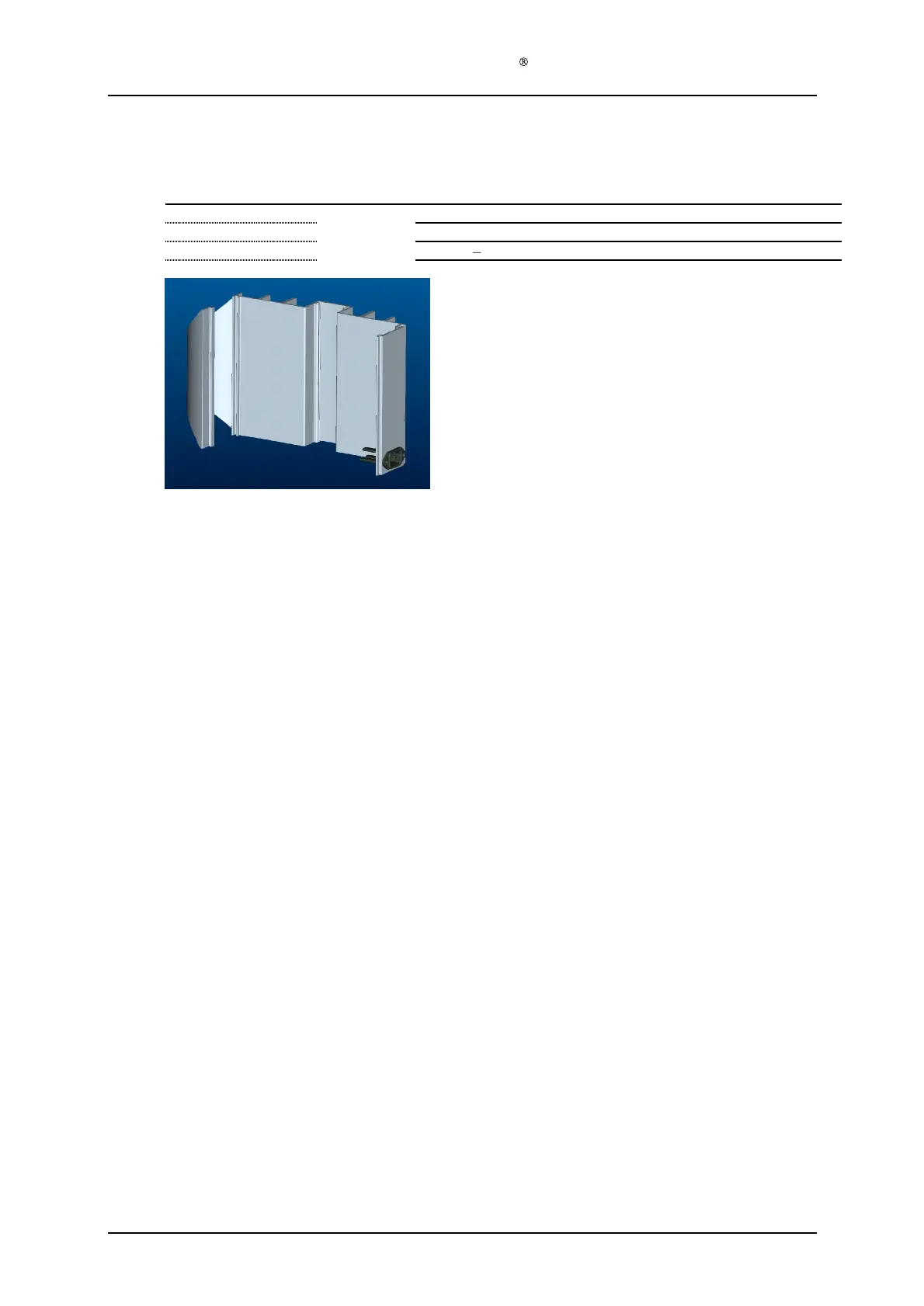

3.3
PS housing module A (128
-0-
310) assembly
Required items
Part #
# of items
Description
128
-1-
311
1
PS housing profile, type A
128
-1-
312
1
AC power inlet plug
128
-1-
313
2
Screw
s
PT3x10 wn1553K30x10
Tool B, screwdriver Torx
10
Assembly description
Step 1)
Assemble the AC power inlet plug (128
-1-
312) onto the PS housing profile, type B (128
-1-
311), with the 2 screws (128
-1-
313). Make sure it is fastened in the correct position, with
the central pin facing upwards. Use Tool B.
