Aktilite CL128 - Lamp Disassembly and Reassembly Procedures

Service Manual Aktilite CL128
Version 1. 3 Page 12 of 41
1.9.3 Dis a ssemly and Assembly of the lamp slide serie s
The lamp head module assembly slide series in this chapter is based on the Aktilite CL128 with fixed lamp
head. However, there are only minor differences between lamp head module assembly for fixed and detachable
lamp head . The below slide series is therefore common for both lamp head variations.
Warning: The gas springs i nside the arm is very powerful therefore secure the arm with a strap
Required Tools :
Nylon Strap length minimum 45 cm
Pair of telephone pliers
Circlip pliers for 16 mm circlip
Torx T7 screwdriver
Torx T10 screwdriver
Torx T20 screwdriver
Philips PH 2 screwdriver
Tool to compress the spring mechanism
Allen key (5mm)

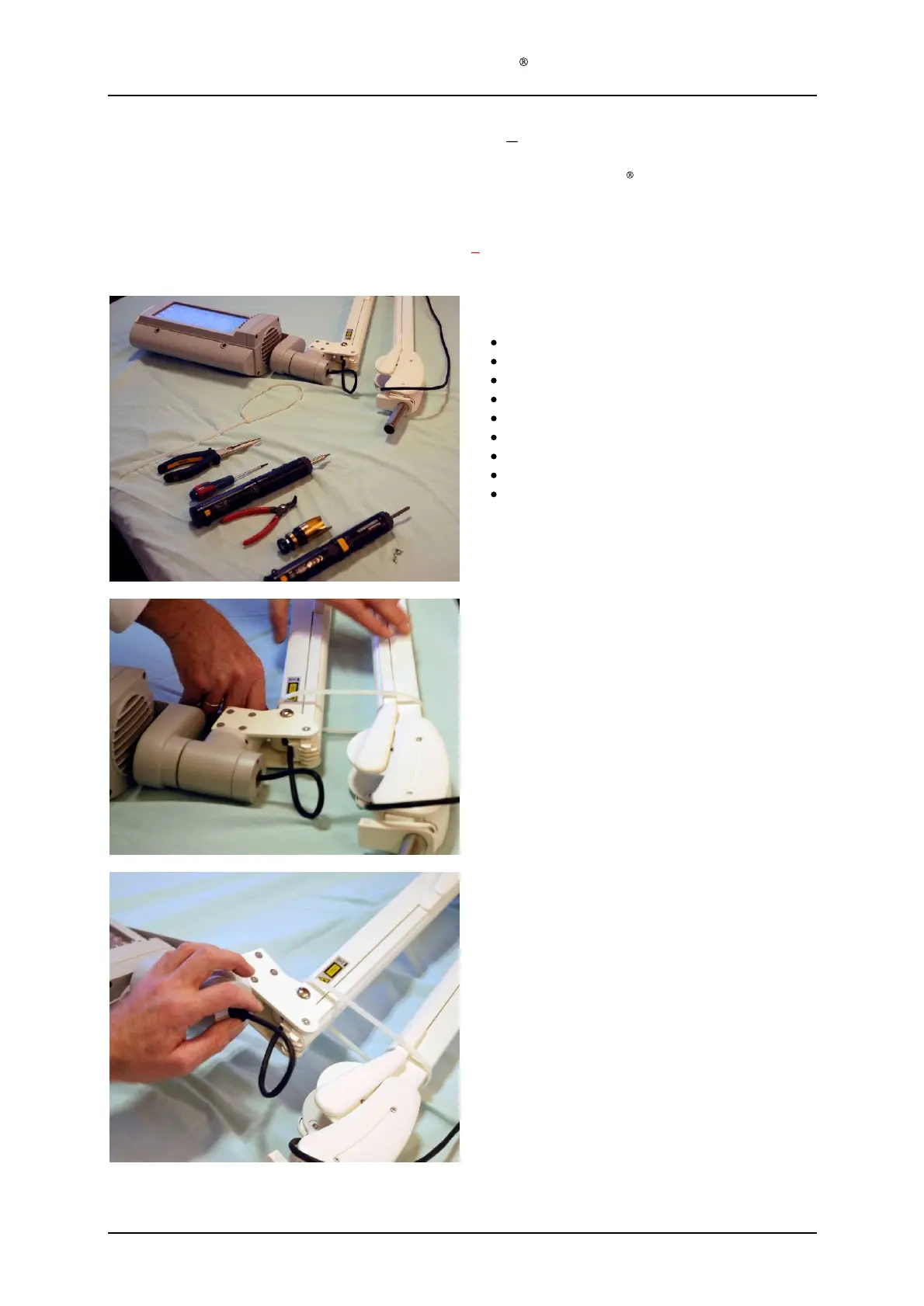

Step 1
Put on a strap or similar to secure the parallel arm.
Step 2
Step 2 - 5 is only necessary if you need to take off the
main arm, the housing or replace the cable.
Remove the strain relief (black) on the end of the
main arm using a pair of pliers .
F or lamps with deta chable lamp head:
Disconnect the cable plug from the T- piece cover
plug and detach the lamp head by removing the
lamp head holder locking screw using the provided
Allen key .
