Service Manual Aktilite CL128
Version 1. 3 Page 26 of 41

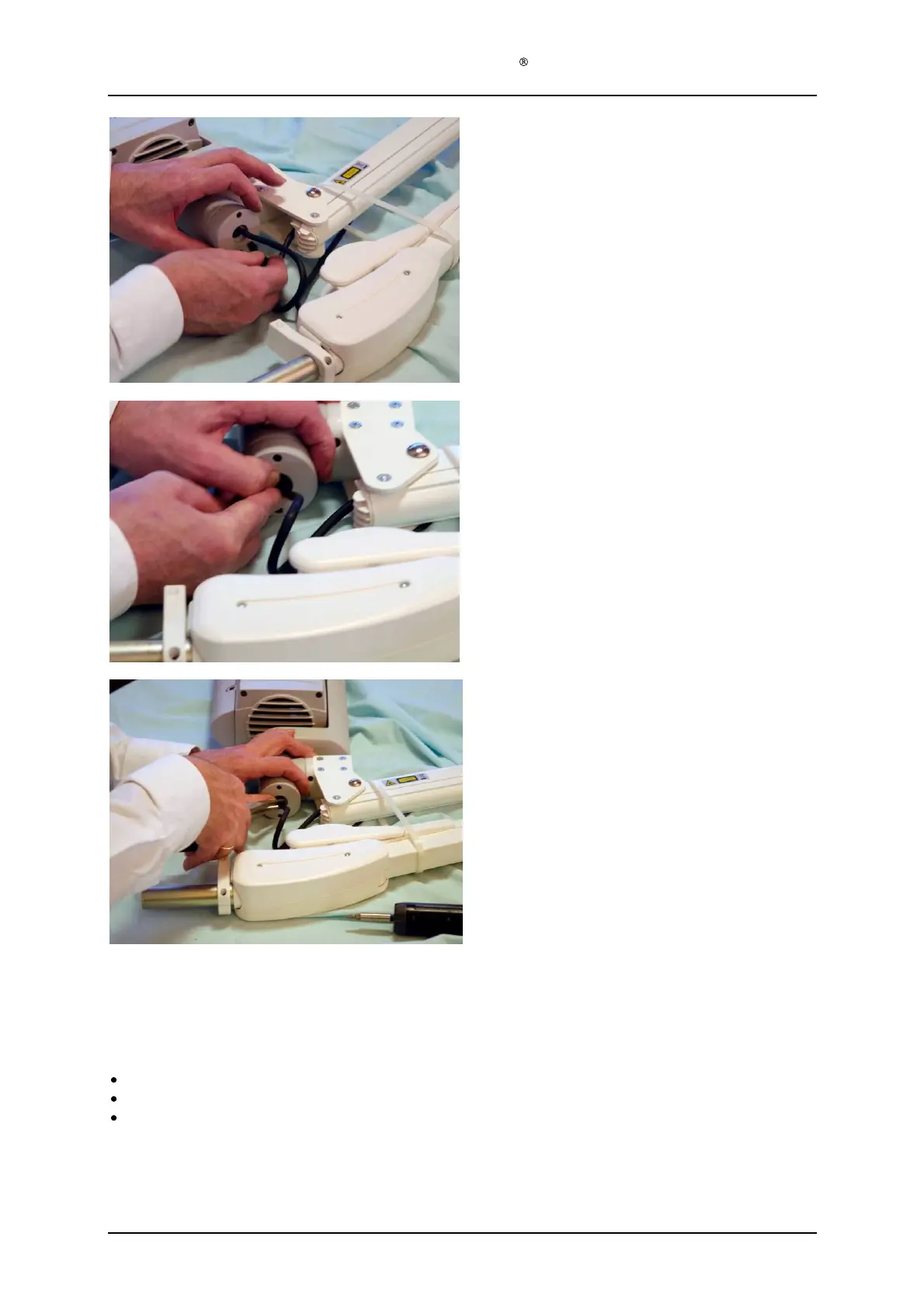

Step 37
Put on the strain relief .
F or lamps with deta chable lamp head:
Place the lamp head in the lamp head holder on t he
parallel arm and secure the connection with the
locking screw using the provided Allen key.
Connect the cable plug in the T - piece cover plug .
Step 38
Position the strain relief into the hole in the cap.
Not applicable for lamps with detachable lamp
head
Step 39
Use a pair of telephone pliers for the final assembly
of the strain relief.
Not applicable for lamps with detachable lamp
head
Step 40
After final assembly, test that th e lamp is functioning OK and that nothing is obstructing the fan.
This is done by:
Attaching power to the lamp and pressing the start button on the display panel.
After self test is over, press start again to start the lamp. Do not stair into the light.
Press stop after a few seconds of operation to stop the lamp.
If the repairs are done to the light module or electronics the lamp has to be fully tested according to test
specifications. Ref. Instructions in PCU - 009 - 128.
