C319 Series Indoor Monitor Administrator Guide

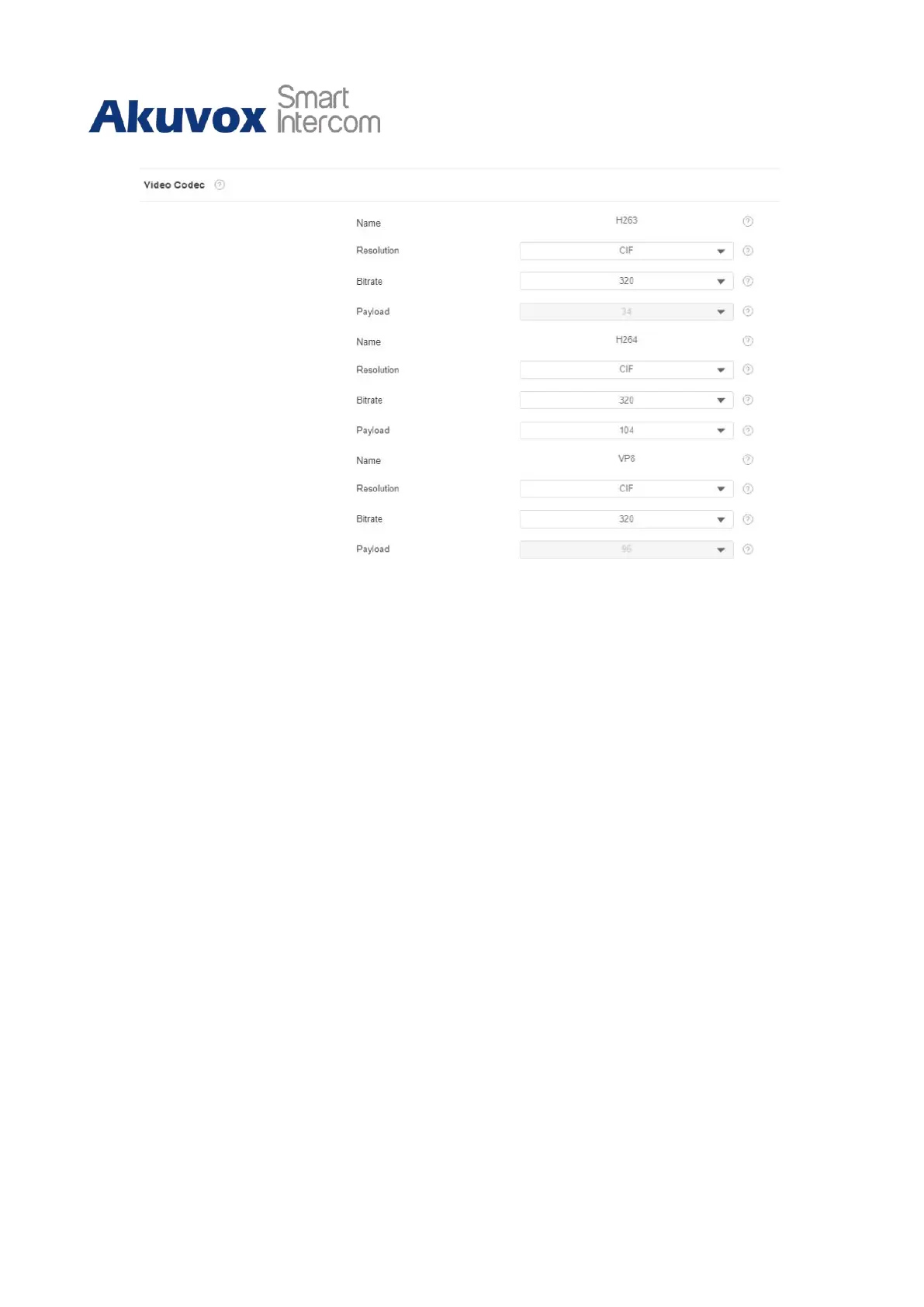

Parameter Set-up:
•
Name: check to select the H264 video codec format for the door phone video
stream. H264 is the video codec by default.
•
Resolution: select the code resolution for the video quality among four options:
QCIF, CIF, VGA, 4CIF, and 720P according to your actual network environment. The
default code resolution is 4CIF.
•
Bitrate: select the video stream bit rate (ranging from 320-2048). The greater the
bitrate, the data transmitted every second is greater in amount therefore the video
will be clearer. While the default code bitrate is 2048.
•
Payload: select the payload type (ranging from 90-118) to configure audio/video
configuration file. The default payload is 104.
