Appendix H. Interface card installation
akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de
44
Appendix H. Interface card installation
DANGER
Dangerous voltage
The voltage on some components of the circuit board can be dangerous. Direct
contact with the circuit board must be avoided.
Operation must be performed only by fully qualified personnel.
1. Remove the top cover with the keypad (Fig. G.1).
2. Use a screwdriver to pry the top board near the USB connector and carefully
separate it from the middle board. (Fig. G.2, H.1a).
3. Cut an opening in the enclosure for the card terminal and mount the card on the
mounting pins (Fig. H.1b).
4. Perform the disassemble operations in reverse order to assemble the device.

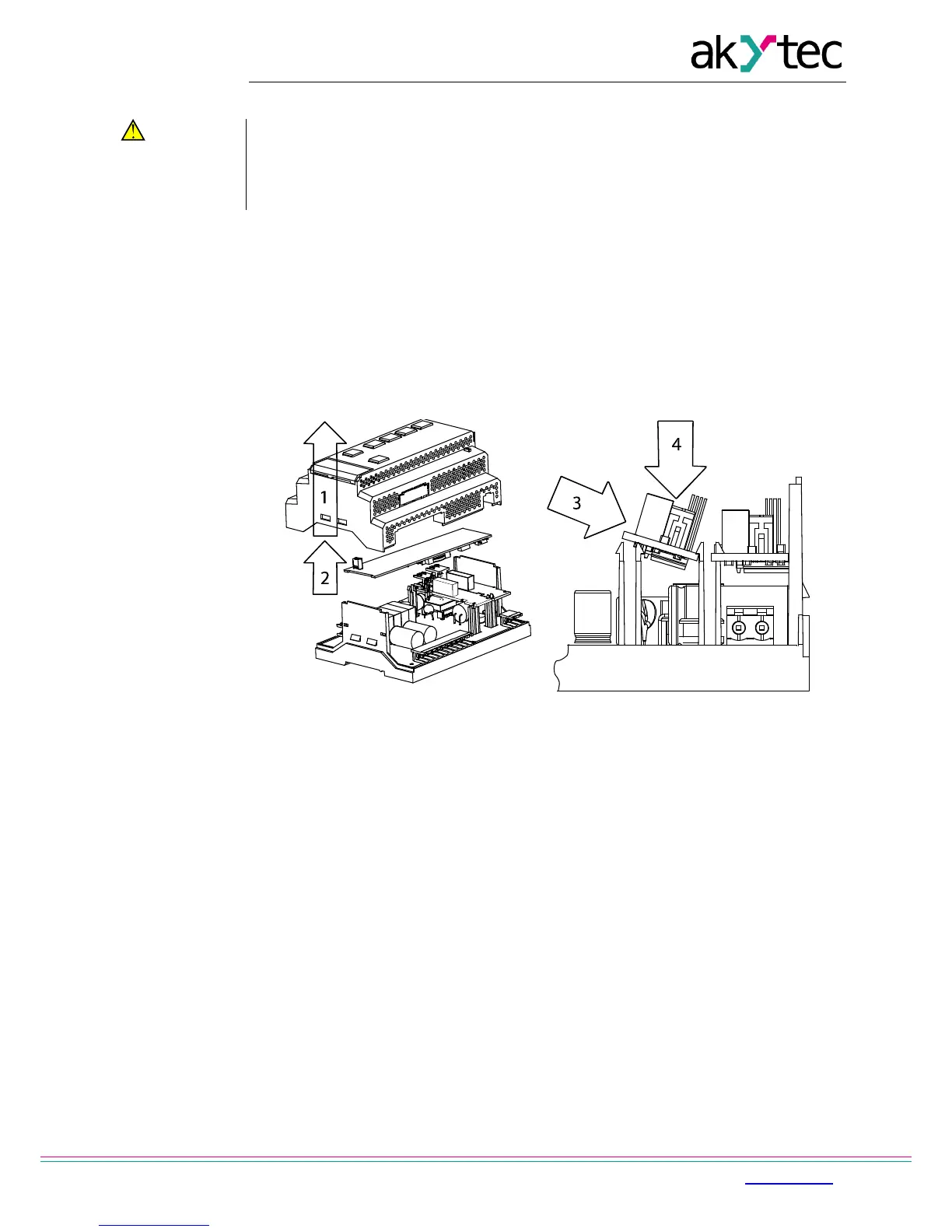

a b
Fig. H.1
