7 Installation
The relay is designed for DIN rail mounting. For the dimension drawing see Appendix. A.
The operating conditions from the section 2.1 must be observed
WARNING
Improper installation can cause serious or minor injuries or device damage.
Installation must be performed only by fully qualified personnel.

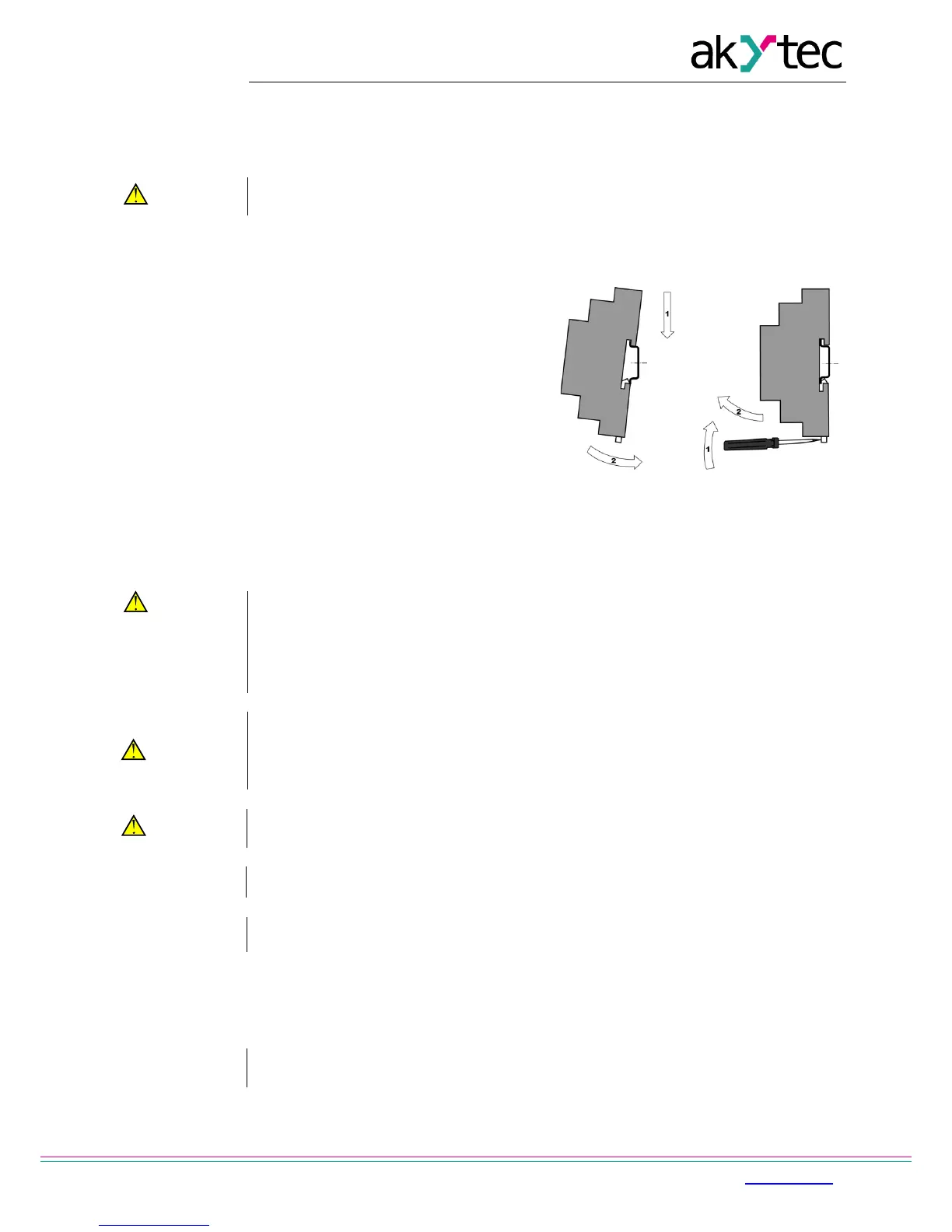

− Align the upper slide of the DIN rail
mounting groove with the DIN rail and
push it onto the rail.
− Wire external connections in
accordance with sec. 7.2 ‘Wiring’ using
plug-in terminal blocks (included).
Removal:
− Take off the terminal blocks without
disconnecting the wires.
− Insert a screwdriver into the eyelet of
the slide interlock, push it, and then
remove relay from the rail.
Fig. 7.1
7.2 Wiring
Electric shock could kill or seriously injure.
All electrical connections must be performed by a fully qualified electrician.
Ensure that the mains voltage matches the voltage marked on the nameplate!
Ensure that the device is provided with its own power supply line and electric fuse!
The application runs after transferring it to the relay. It is recommended to transfer
the application before wiring the relay.
Otherwise ensure that all external devices are disconnected from outputs before
transferring the application.
Switch on the power supply only after the wiring of the device has been completely
Signal cables should be routed separately or screened from the supply cables.
Only shielded cable can be used for the signal lines.
─ PR200 can be powered from AC or DC voltage, depends on modification.
─ If supply voltage is lower than 19 V DC, the device cannot operate properly but will
not be damaged.
Supply voltage may not exceed 30 V. If supply voltage is higher than 30V DC, the
device can be damaged.
─ Terminal assignment is given in Tables 7.1, 7.2 and layouts of terminal blocks are
shown in Appendix B
─ Electrical connections for inputs and outputs are given in Fig. 7.2 – 7.7
