5.2 Menu content
The menu structure is shown in Fig. 5.1

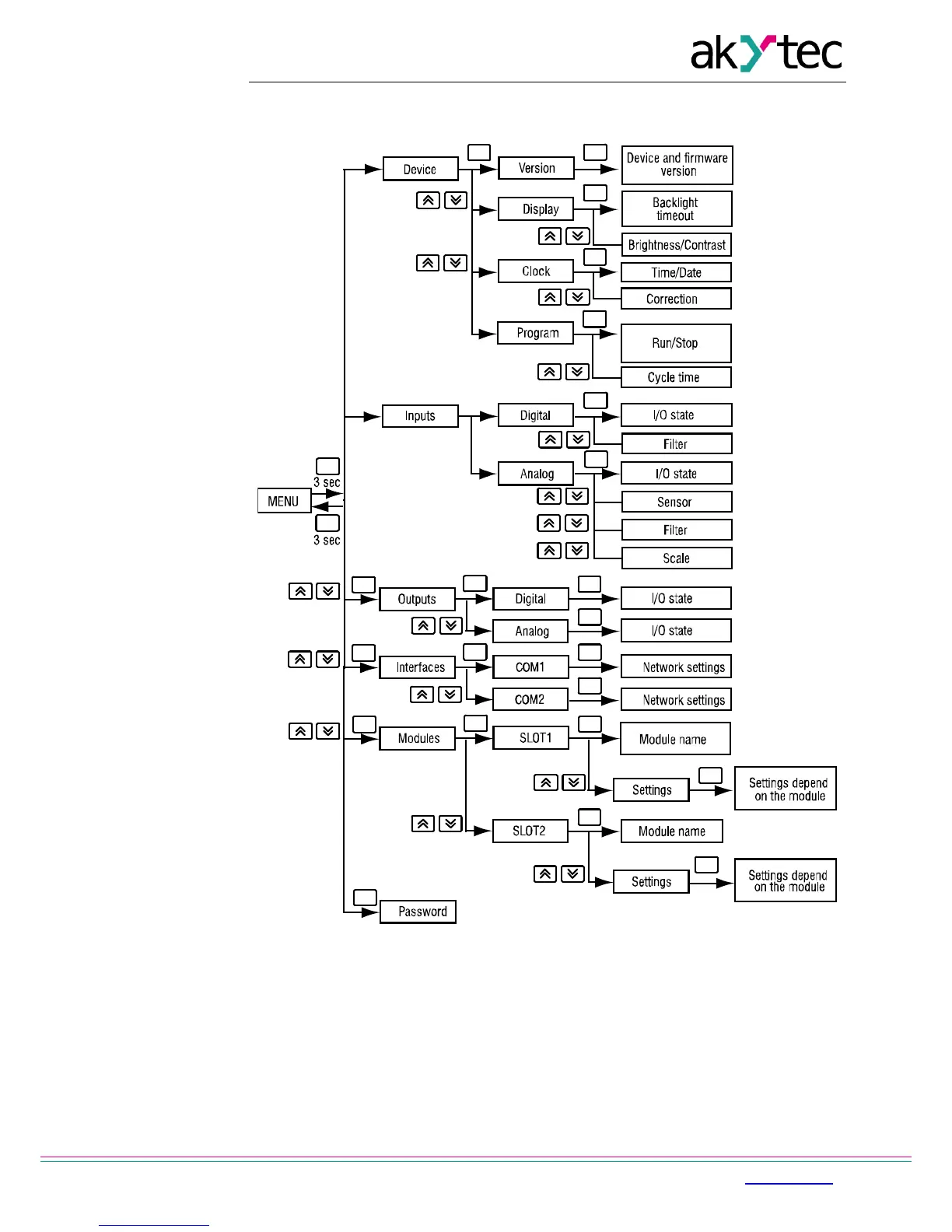

Fig. 5.1 System menu
Inputs
− Digital
Status of digital inputs is displayed as a bitmask: 0 for OFF state, 1 for ON state.
The first bit in the mask corresponds to input 1.
Use the menu item Inputs>Digital>Filter to set the time constant for the debouncing
filter in the range of 0…255 ms.
A
LT
OK
OK
OK
OK
OK
OK
ESC
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
