Akytec PR200 - Quick Replacement

Installation
akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de
28
Table 7.2 Terminals 37-40
№
Name
Function
PR200-230(24).2.2
37
АО1-
Analog output AO1
(4-20 mA)
38
АО1+
39
АО2-
Analog output AO2
(4-20 mA)
40
АО2+
PR200-230(24).4.2
37
V-
-24 VDC
38
V+
+24 VDC
39 АО1
Analog output AO1
(0-10 V)
40 АО2
Analog output AO2
(0-10 V)
7.3 Quick replacement
PR200 is equipped with plug-in terminal blocks which enable
quick replacement of the device without disconnecting the
existing wiring (Fig. 7.9).
To replace the device:
− power off all connected lines including power supply
− remove all detachable parts of the terminal blocks
− replace PR200
− connect detachable parts with existing wiring to the device

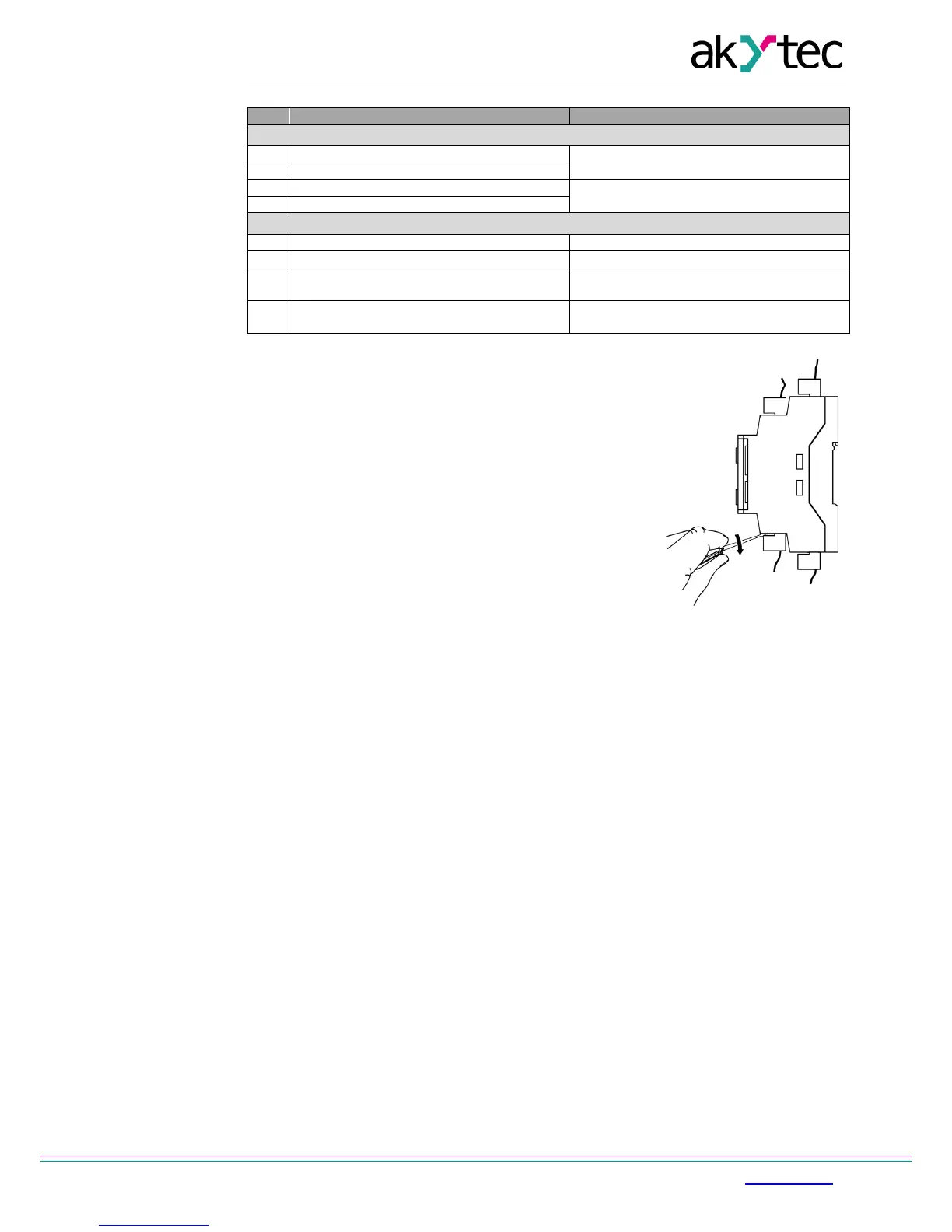

Fig. 7.9 Quick replacement
