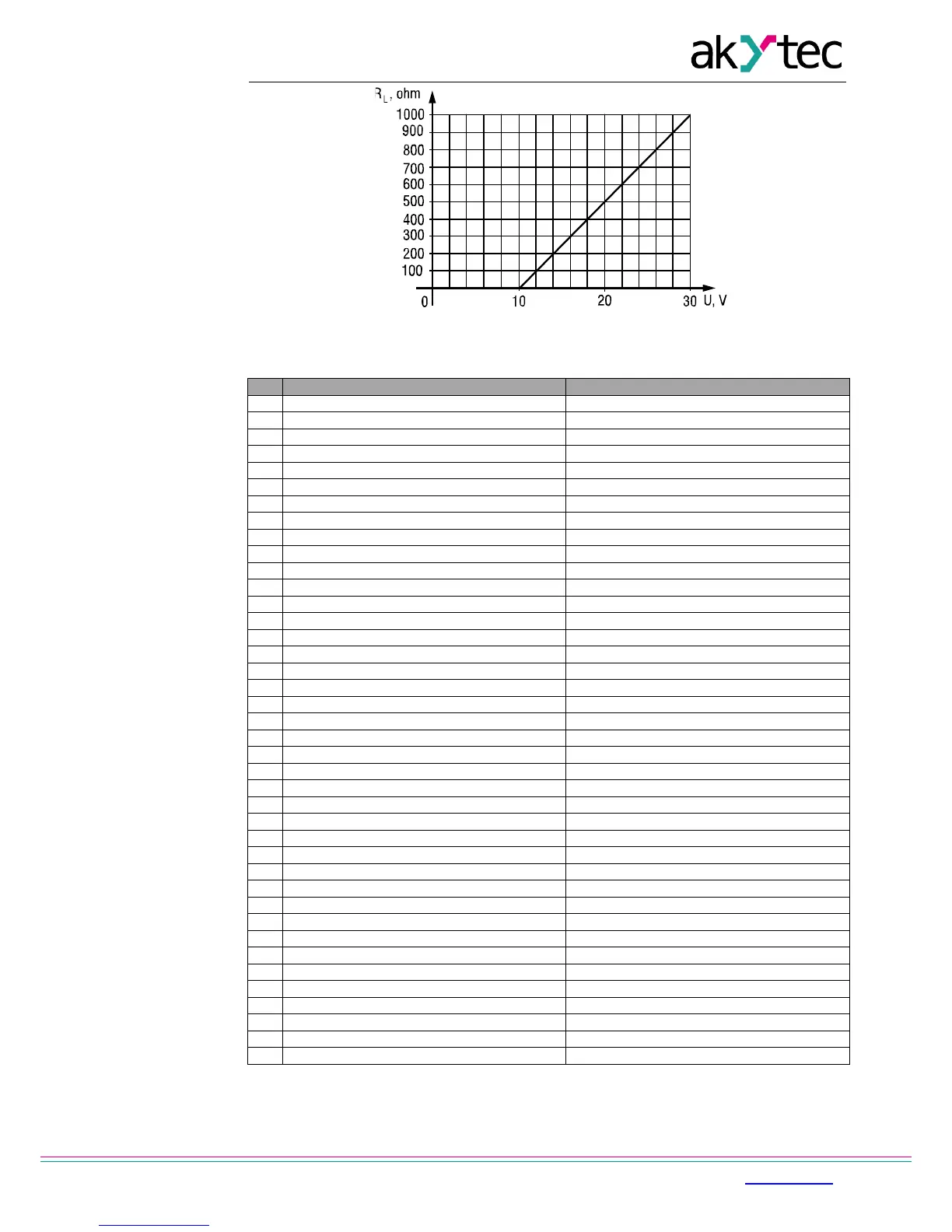

Fig. 7.8 Load resistance determination
Table 7.1 Terminal assignment
№
Name
Function
1
AC230V L / DC24V -
Power supply AC / DC *
2
AC230V N / DC24V +
Power supply AC / DC *
3
COM1
Common minus DI1...DI4
4
DI1
Digital input DI1
5
DI2
Digital input DI2
6
DI3
Digital input DI3
7
DI4
Digital input DI4
8
COM2
Common minus DI5...DI8
9
DI5
Digital input DI5
10
DI6
Digital input DI6
11
DI7
Digital input DI7
12
DI8
Digital input DI8
13
OUT 24V+
24 V DC integrated voltage source **
14
OUT 24V-
24 V DC integrated voltage source **
15
DO1
Digital output DO1
16
-
Common contact DO1...DO2
17
DO2
Digital output DO2
18
DO3
Digital output DO3
19
-
Common contact DO3...DO4
20
DO4
Digital output DO4
21
DO5
Digital output DO5
22
-
Common contact DO5...DO6
23
DO6
Digital output DO6
24
DO7
Digital output DO7
25
-
Common contact DO7...DO8
26
DO8
Digital output DO8
27
AI1
Analog input AI1
28
COM3
Common minus AI1...AI2
29
AI2
Analog input AI2
30
AI3
Analog input AI3
31
COM4
Common minus AI3...AI4
32
AI4
Analog input AI4
33
RS-485 D-
RS485 Interface 1 -
34
RS-485 D+
RS485 Interface 1 +
35
RS-485 D-
RS485 Interface 2 -
36
RS-485 D+
RS485 Interface 2 +
37
see Table 7.2
38
see Table 7.2
39
see Table 7.2
40
see Table 7.2
* Depending on device modification (PR200-230 or PR200-24)
** PR200-230 only
