ALC AWF61 - Camera Mounting Procedure

— 8 —

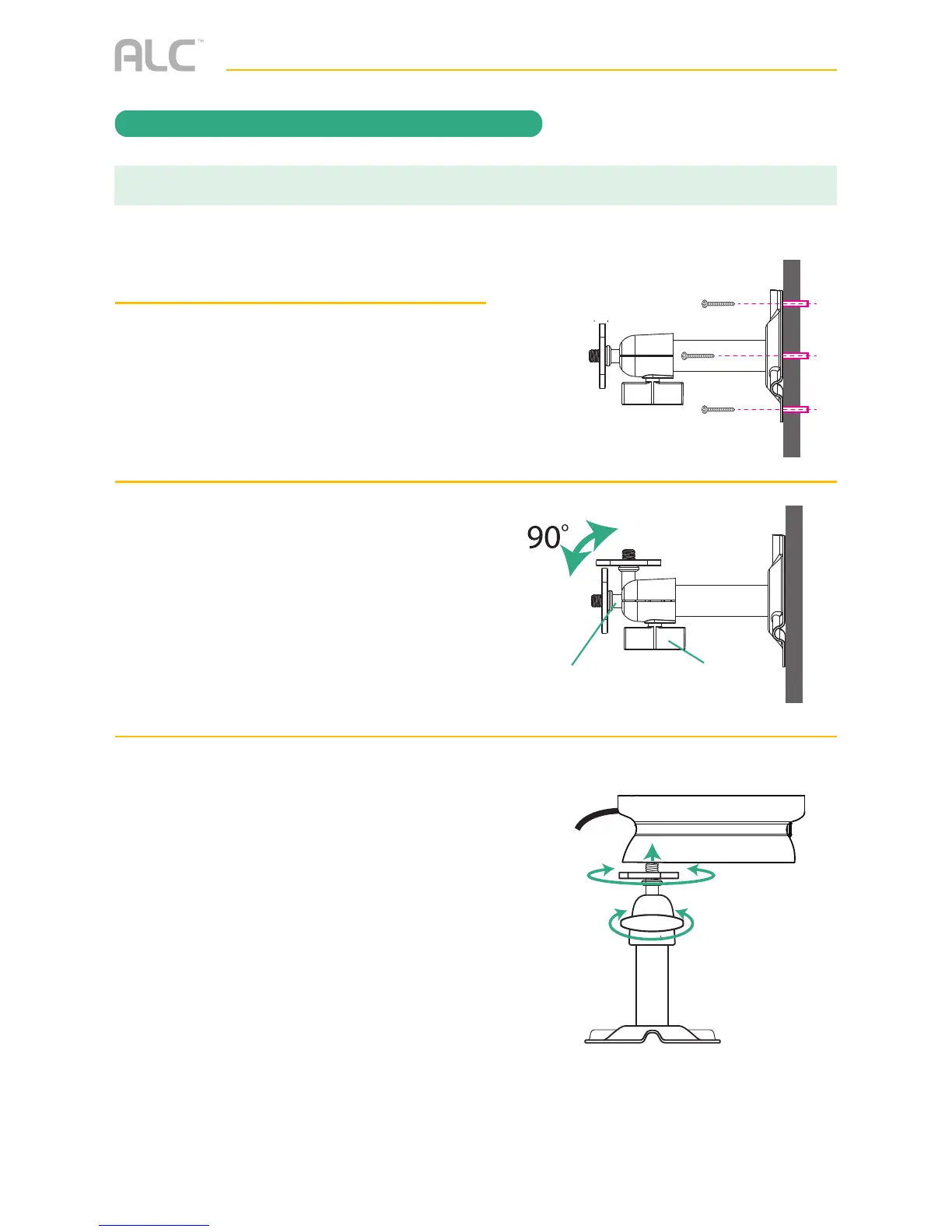

INSTALLATION
Installing the Camera
u
If not mounting, but just using on a flat
surface (desk, table, etc.), skip to step 4.
v
Secure the multi-position Camera Bracket
to a stable surface, ceiling or wall using
the three screws. If needed, three
anchors are also included.
w
Loosen the T-Bolt on the Camera Bracket
and adjust viewing angle using the
Thumb Screw to rotate position.
x
The process for hanging the camera
is the same for Ceiling Mount or
Surface mount. See page 46 “Screen
Orientation” section to set the correct
image view.
u Align Mounting socket on the camera
with T-Bolt and screw camera onto the
T-Bolt until it is in the desired position.
v Tighten the Brace against the camera to
secure it in place.
w Set the desired camera angle and then
tighten the Thumb Screw.
T-Bolt Thumb
Screw
T-Bolt Thumb
Screw
v
w
u
IMPORTANT: Please set up the camera first before mounting and stay in close range with the camera during setup.
