Mounting OS6250 Switches Assembling OS6250 Switches
OmniSwitch 6250 Hardware Users Guide September 2015 page 4-7
1 Attach the slot-brackets to the front and rear of the chassis using the attachment screws (M3 flathead)
provided for each bracket.

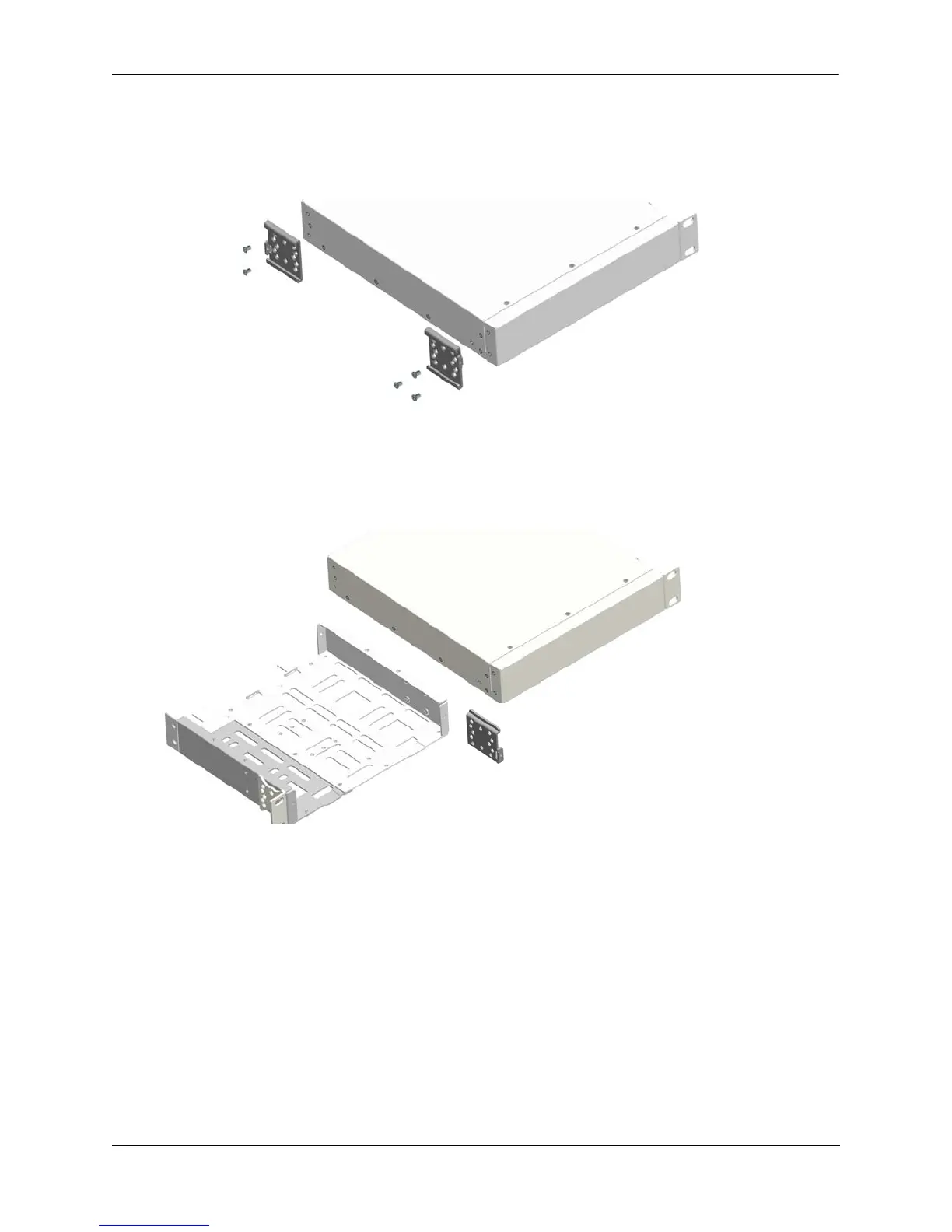

Slot-Bracket Attachment
2 Attach slide-bracket to front of the power supply tray using the attachment screws (M3 flathead).
Slide-Bracket Attachment
Slide bracket
