OmniSwitch 6850E Series Chassis and Hardware Components
page 2-14 OmniSwitch 6850E Series Hardware Users Guide January 2013
OmniSwitch 6850E-48

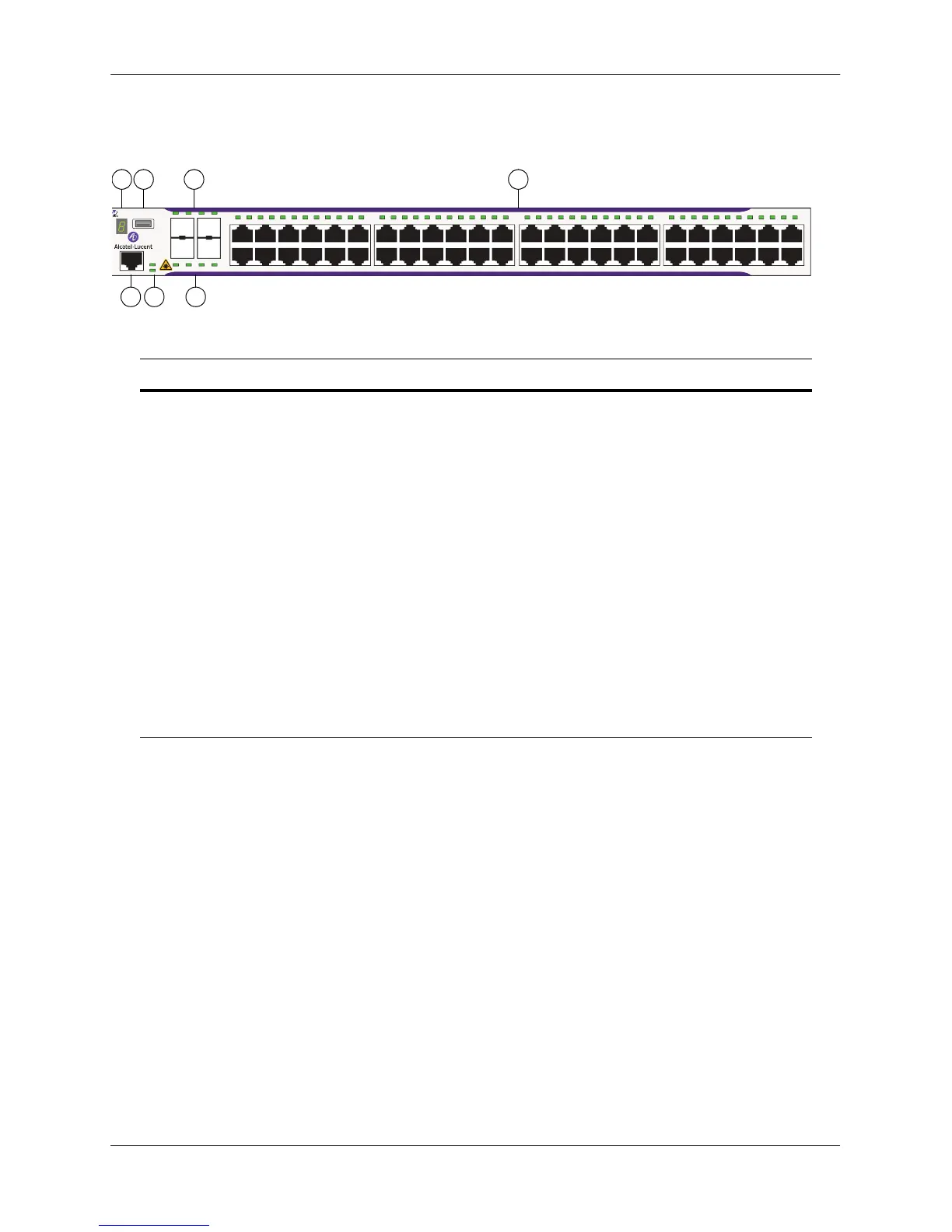

OS6850E-48 Front Panel
Refer to “OmniSwitch 6850E LED Status Indicators” on page 2-31 for LED status information.
Refer to “OmniSwitch 6850E Port Numbering” on page 2-30 for port numbering.
Item Description
A
LED Indicator
Seven segment LED provides stack element ID.
B
USB Port
High speed USB port.
C
System Status LEDs
Provides status on hardware, software, primary and redundant power.
D
10/100/1000BaseT RJ-45 Ports and LEDs
10/100/1000BaseT non-combo and 10/100/1000BaseT combo ports. Odd-numbered ports are
on top row, even-numbered ports are on bottom row.
E
Console Port
RS-232 console port with an RJ-45 connector. Provides access to the CLI for configuration
and management.
F
Rear Module Port LEDs
Provides link and traffic status for rear modules.
G
SFP Combo Ports and LEDs
Combo SFP connectors for various supported SFP transceivers.
