OmniSwitch 6850E Series Chassis and Hardware Components
page 2-26 OmniSwitch 6850E Series Hardware Users Guide January 2013
OmniSwitch 6850E-U24X

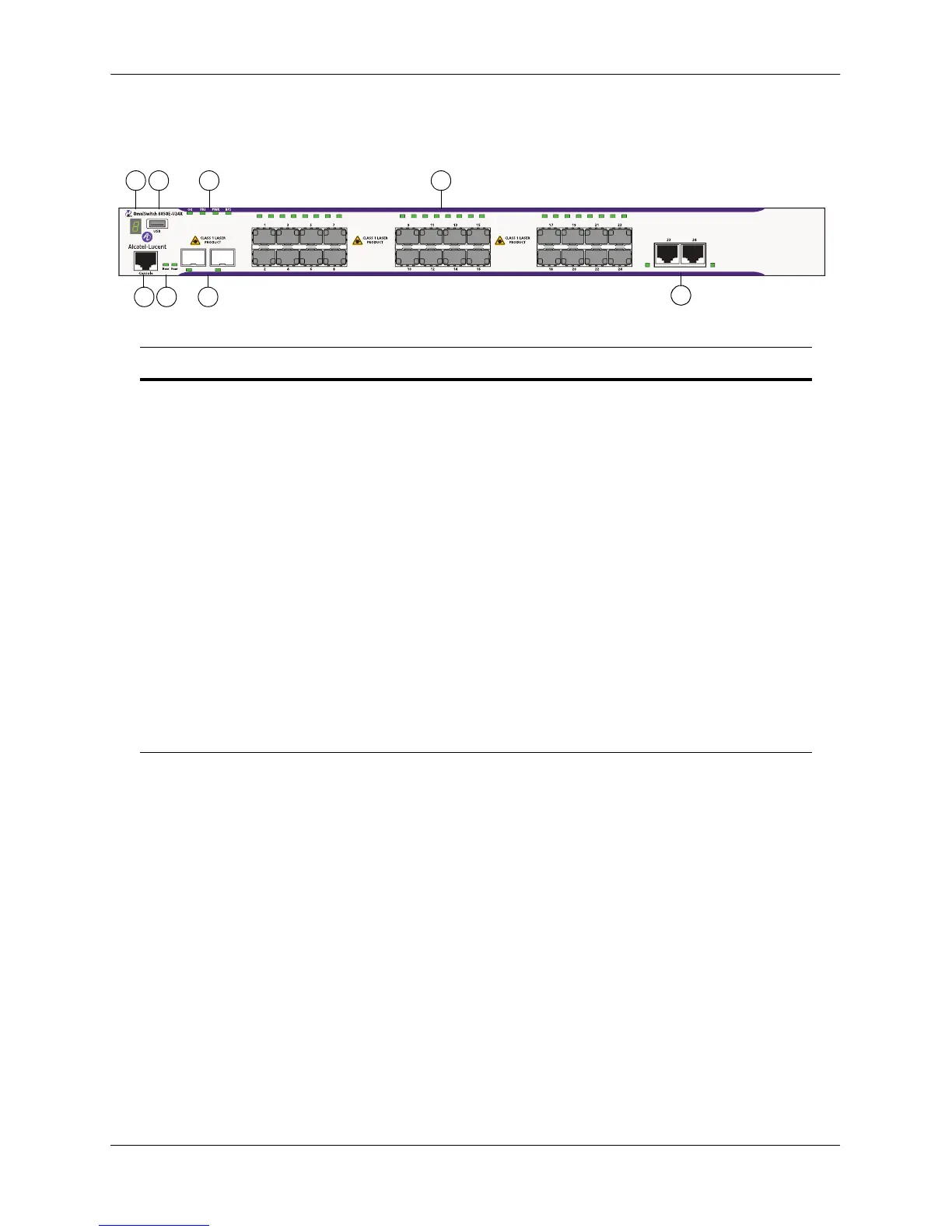

OS6850E-U24X Front Panel
Refer to “OmniSwitch 6850E LED Status Indicators” on page 2-31 for LED status information.
Refer to “OmniSwitch 6850E Port Numbering” on page 2-30 for port numbering.
Item Description
A
LED Indicator
Seven segment LED provides stack element ID.
B
USB Port
High speed USB port.
C
System Status LEDs
Provides status on hardware, software, primary and redundant power.
D
SFP Ports and LEDs
Combo and non-combo SFP connectors for various supported SFP transceivers.
E
Console Port
RS-232 console port with an RJ-45 connector. Provides access to the CLI for configuration
and management.
F
Rear Module Port LEDs
Provides link and traffic status for rear modules.
G
SFP+ Ports and LEDs
Two non-combo SFP+ connectors for various supported SFP+ transceivers.
H
10/100/1000BaseT RJ-45 Combo Ports and LEDs
10/100/1000BaseT RJ-45 combo ports.
