OmniSwitch 6850E Series Chassis and Hardware Components
OmniSwitch 6850E Series Hardware Users Guide January 2013 page 2-27

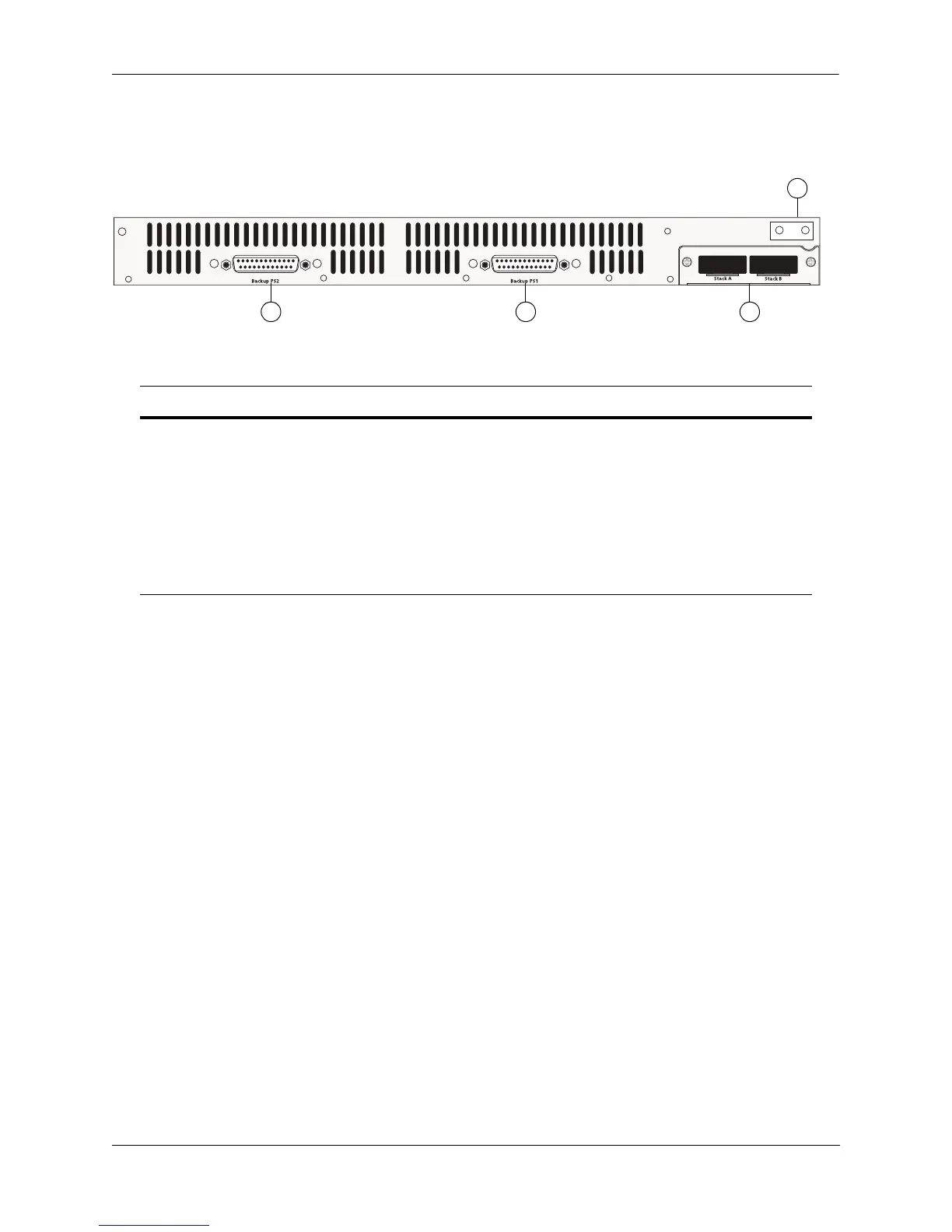

OmniSwitch 6850E-U24X Rear Panel
OS6850E-U24X Rear Panel
Item Description
A
Grounding Block
Type LCD8-10A-L grounding lug
B
Redundant Power Supply Connector
DB-25 connector for optional external redundant power supply.
C
Primary Power Supply Connector
DB-25 connector for required external primary power supply.
D
Stacking/SFP+ Uplink Module
Connectors for use in stacking switches into a virtual chassis or as uplink ports.
