Remote Go
0.25” stereo jack socket.
Connect the sleeve to tip to simulate a
GO NEXT button push
DMX Output
5 pin XLR, Not isolated, with voltage
protection, with data output indicator.
Data on channels 1 - 512 only.
Connections:
PIN 1 0V Signal ground
PIN 2 DMX drive compliment
PIN 3 DMX drive true
PIN 4 Not connected.
PIN 5 Not connected
Zero 88 Memory Module (Optional)
32 kbyte EEPROM cartridge with 9 pin D
type male connector.
Stock Number: 00-116-00.
Analogue Output (Optional)
24 (48) channels 0 to +10V
Short circuit proof
All channels capable driving 5 mA (2 mA)
All channels are diode protected
Any dimmer supply not used.
Connectors 4 (8) x 8 pin ring locking DIN
PIN 1 = Channel 1
PIN 2 = Channel 2
PIN 3 = Channel 3
PIN 4 = Channel 4
PIN 5 = Channel 5
PIN 6 = Channel 6
PIN 7 = Not used
PIN 8 = 0V Signal Ground
Stock Number: 00-118-00.
Page 40 Alcora 73-700-00 Issue 2
Technical Specification

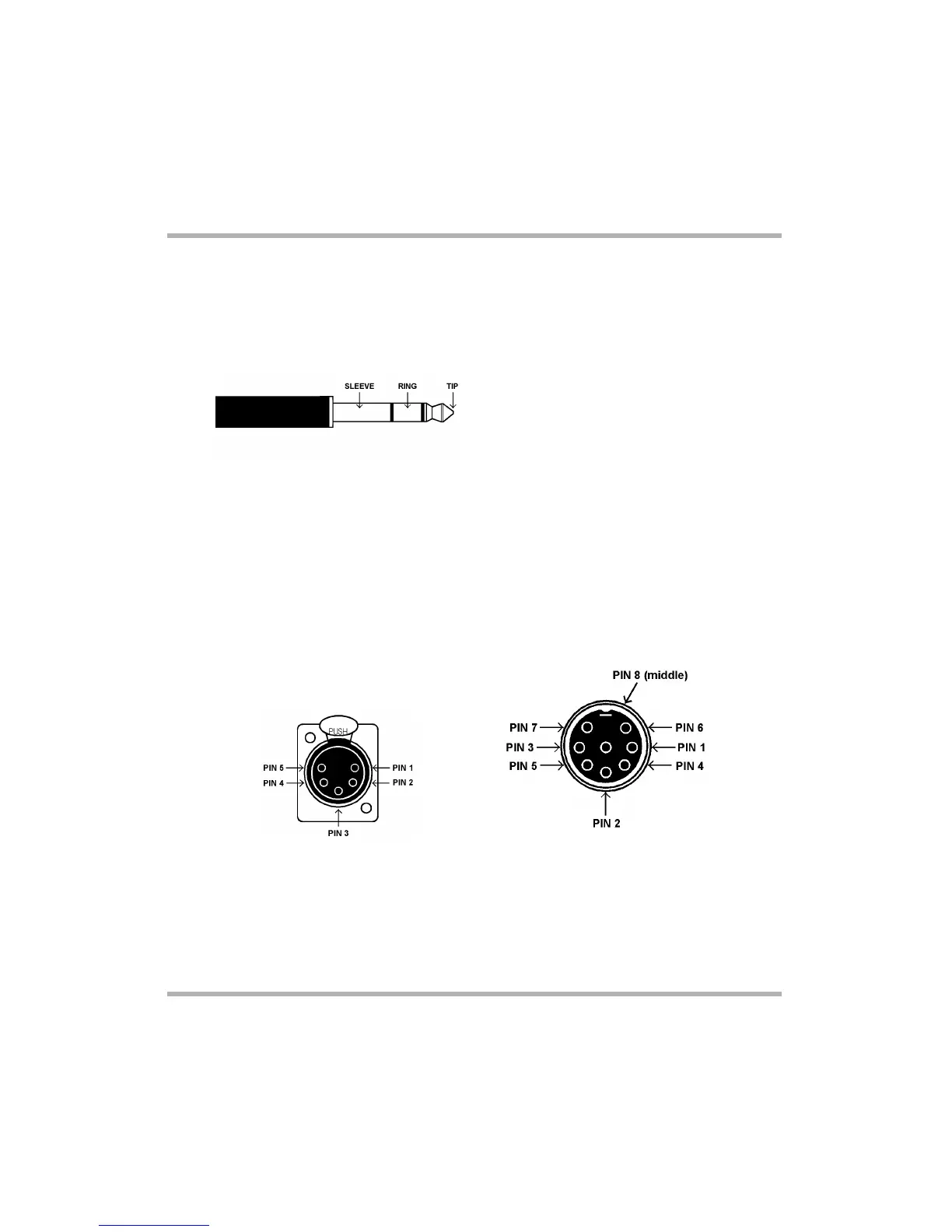

Figure C - DMX Connector
Figure D - Analogue Connector
Figure B - Stereo Jack Plug
