8301 IP Paging Adapter & Scheduler
support@algosolutions.com
1202 Call Button
A pair of wires from the terminal block Relay Input on
the back of the 8301 can connect to the center pair of
the modular connector at the back of the Call Button.
For more details check the Algo 1202 Installation
Sheet.

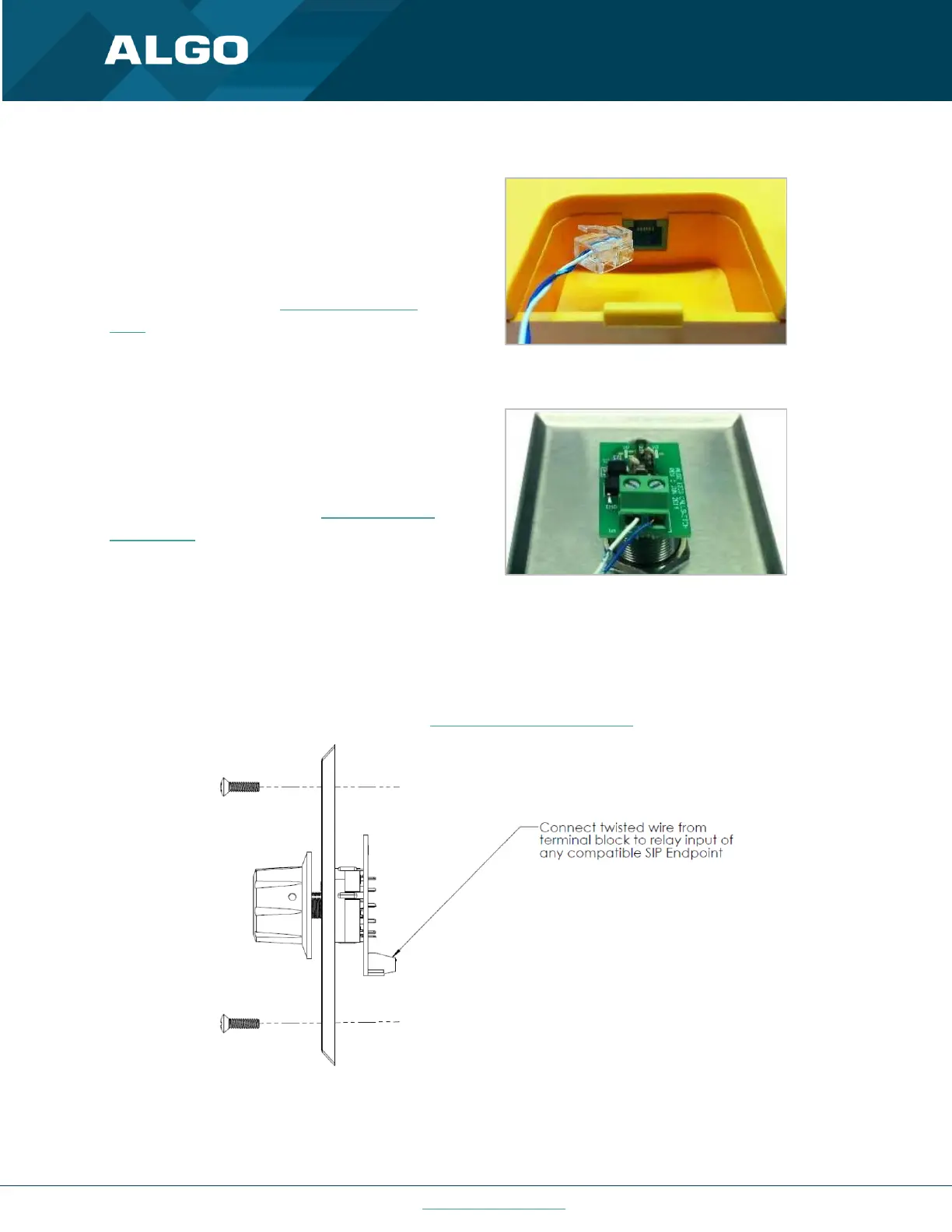

Figure 6: 1202 Call Button Wiring
1203 Call Switch
A pair of wires can be run from the back of the device
via a screw output connector to the 8301 via the Relay
Input. For more details check the Algo 1203 Getting
Started Sheet.
Figure 7: 1203 Call Switch Wiring
1204 Volume Control Switch
Install the 1204 by connecting a single twisted pair wire to its terminal block (not polarity sensitive) and wire it to the
Relay Input on the 8301. For more details check the Algo 1204 Getting Started Sheet.
Figure 8: 1204 Volume Control Switch Wiring
