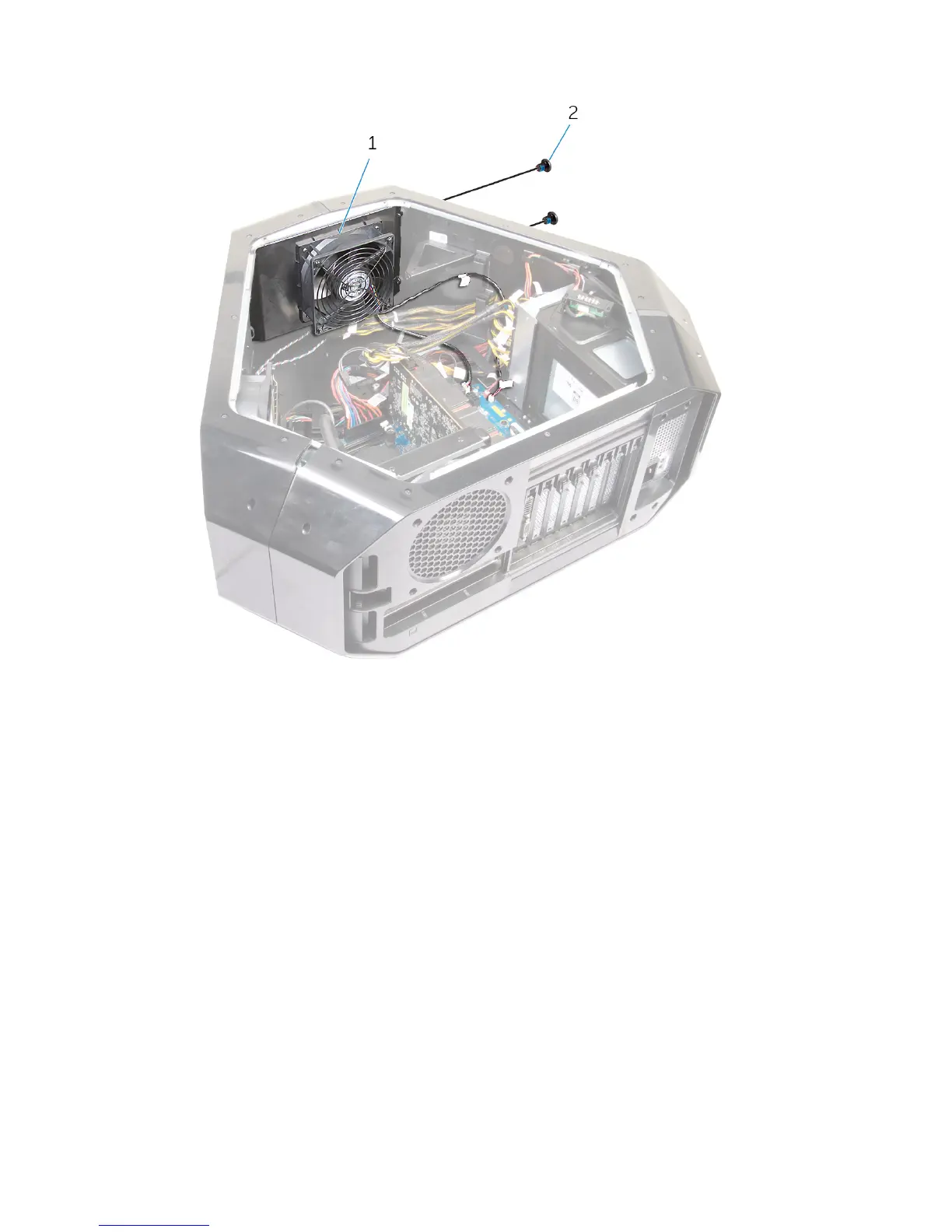

3 Remove the screws that secure the PCI fan to the chassis.
1 PCI fan 2 screws (2)
4 Disconnect the PCI-fan cable and front-bezel heat-sensor cable from the
connector on the system board.
82
