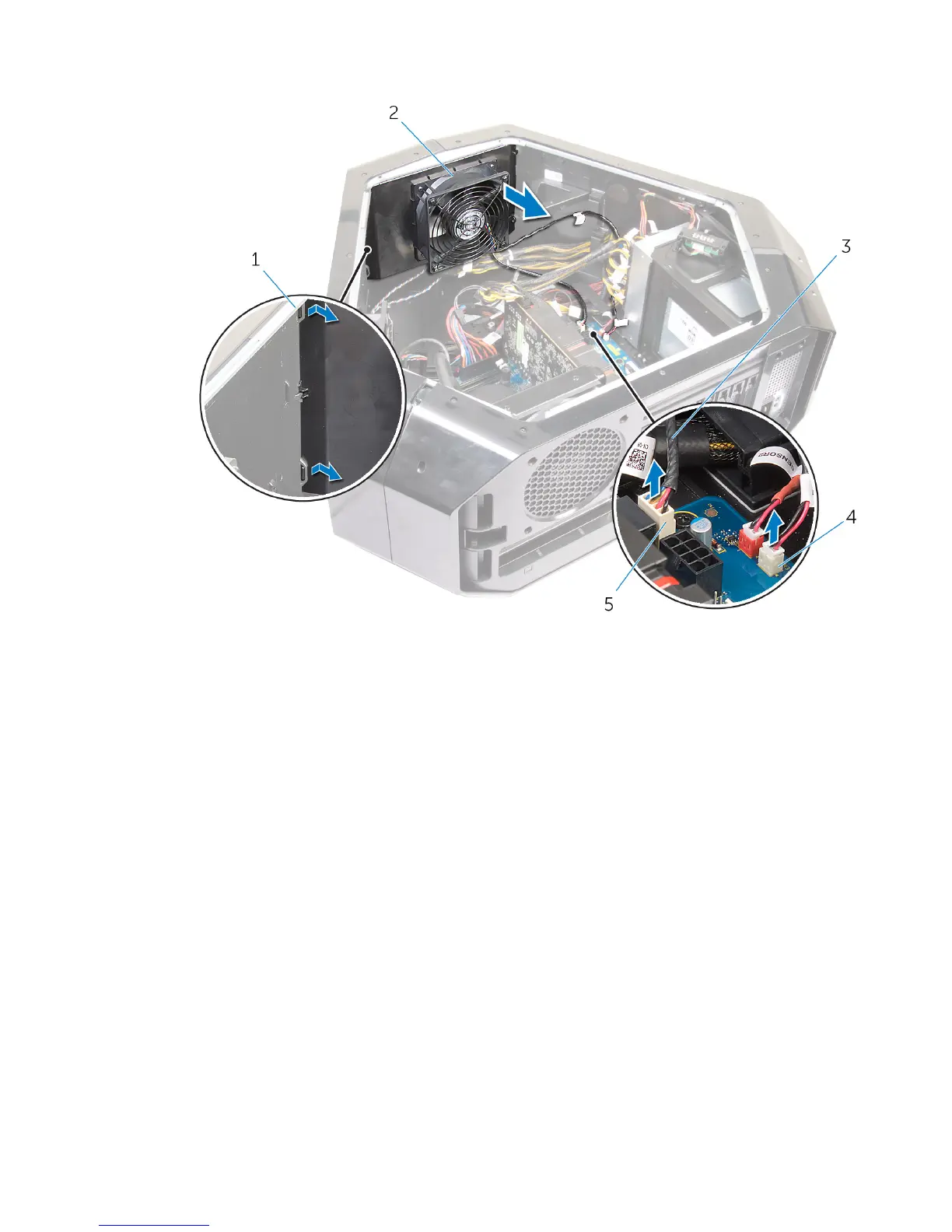

5 Pry out the PCI fan from the tabs securing it to the chassis.
1 tabs 2 PCI fan
3 PCI-fan cable 4 front-bezel heat-sensor
5 PCI-fan connector
6 Remove the screws securing the fan shroud to the PCI fan.
83
