DR-135 ADJUSTMENT

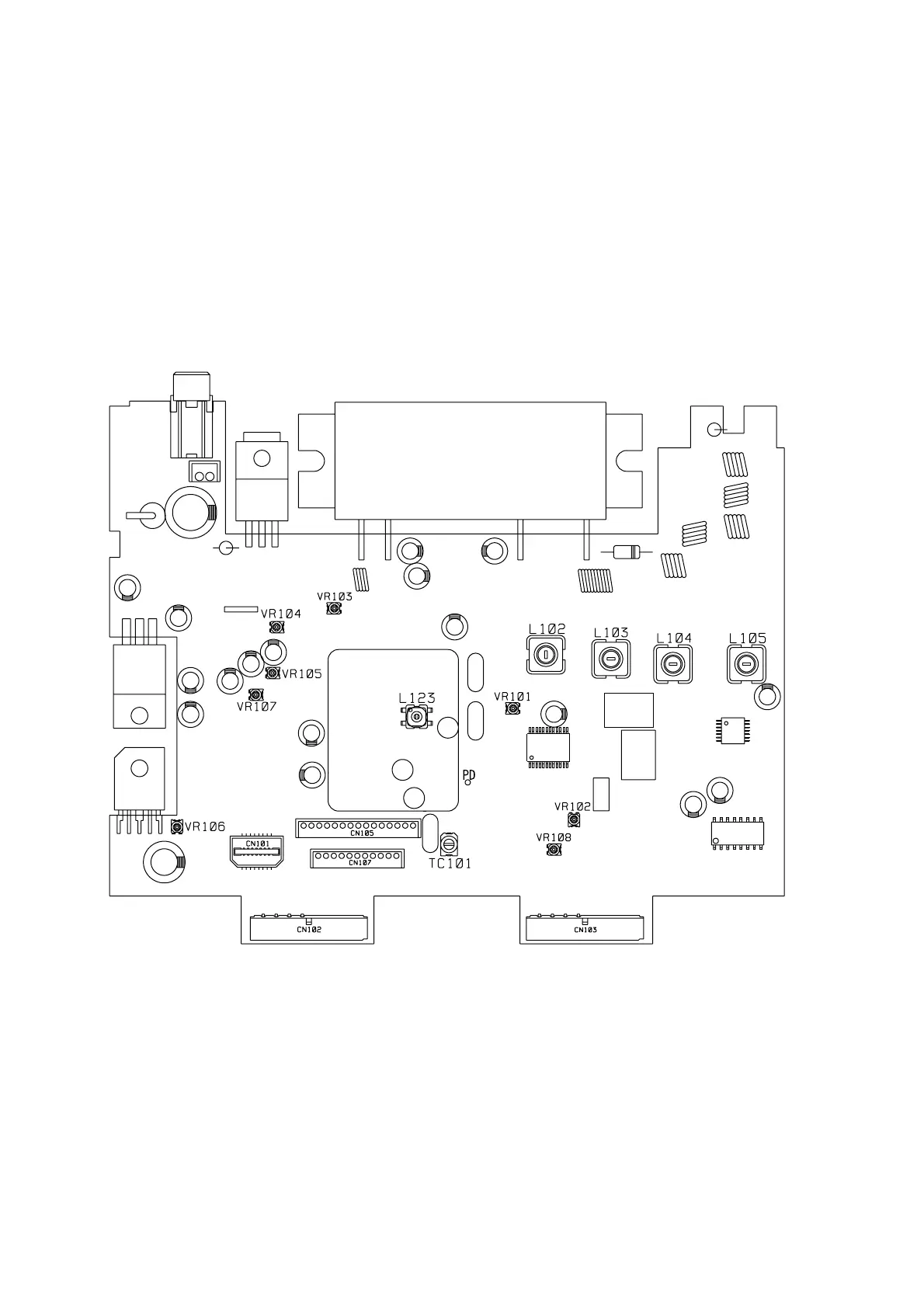

1) Adjustment Spot
Power Supply Voltage 13.8 V
Output of SSG is all EMF indication
If without instruction, WIDE mode
If without instruction, SSG output is MOD 1KHz WIDE DEV 3.5KHz/DEV, NARROW DEV 1.75KHz/DEV
Standard Modulation is also based above.
Speaker load is 8Ω and Output is 50~100 mV.
Attention:Don't set the variable resistor into its open position.
