non-volatile nature of eMMC FLASH, it can be used as a large-capacity storage
device for the ZYNQ system, such as ARM-based applications, system files,
and other user data files. The specific models and related parameters of eMMC
FLASH are shown in Table 2-5-1：
Table 2-5-1: eMMC FLASH Specification
eMMC FLASH is connected to the GPIO port of the BANK501 in the PS
section of the ZYNQ chip. In the system design, the GPIO port functions of
these PS ports need to be configured as the SD interface. Figure 2-5-1 shows

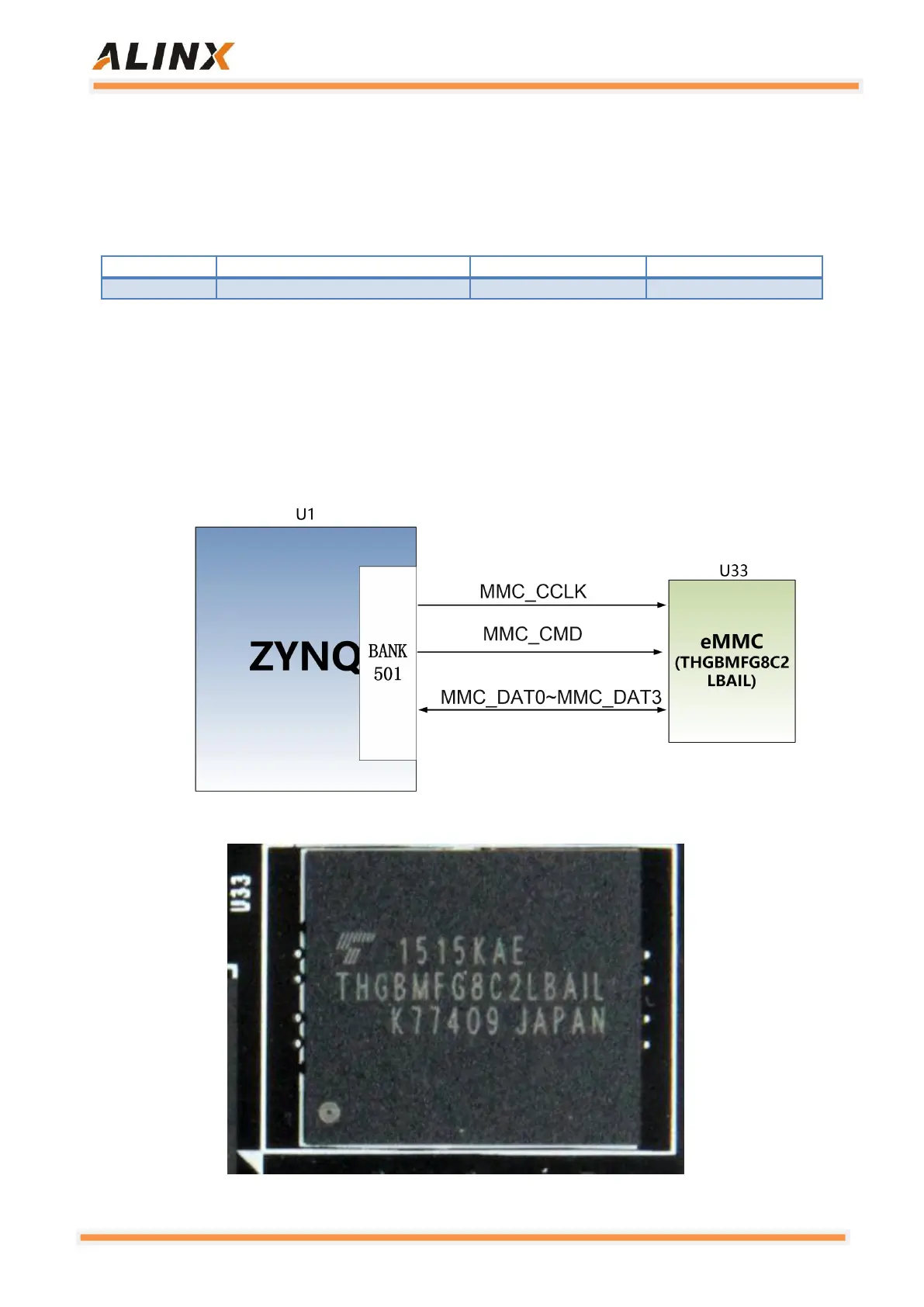

the eMMC Flash in the schematic.
Figure 2-5-1: eMMC Flash in the Schematic
Figure 2-5-2: eMMC Flash on the Core Board
